Komatsu WA200-3-X Auto Grease System (Bellcrank Line)(#60001-) Parts
Komatsu WA200-3-X auto grease system (bellcrank line)(#60001-) parts for machine serial 60001-62999. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Frame And Guard / Auto Grease System (Bellcrank Line)(#60001-).
Checking current purchase options...

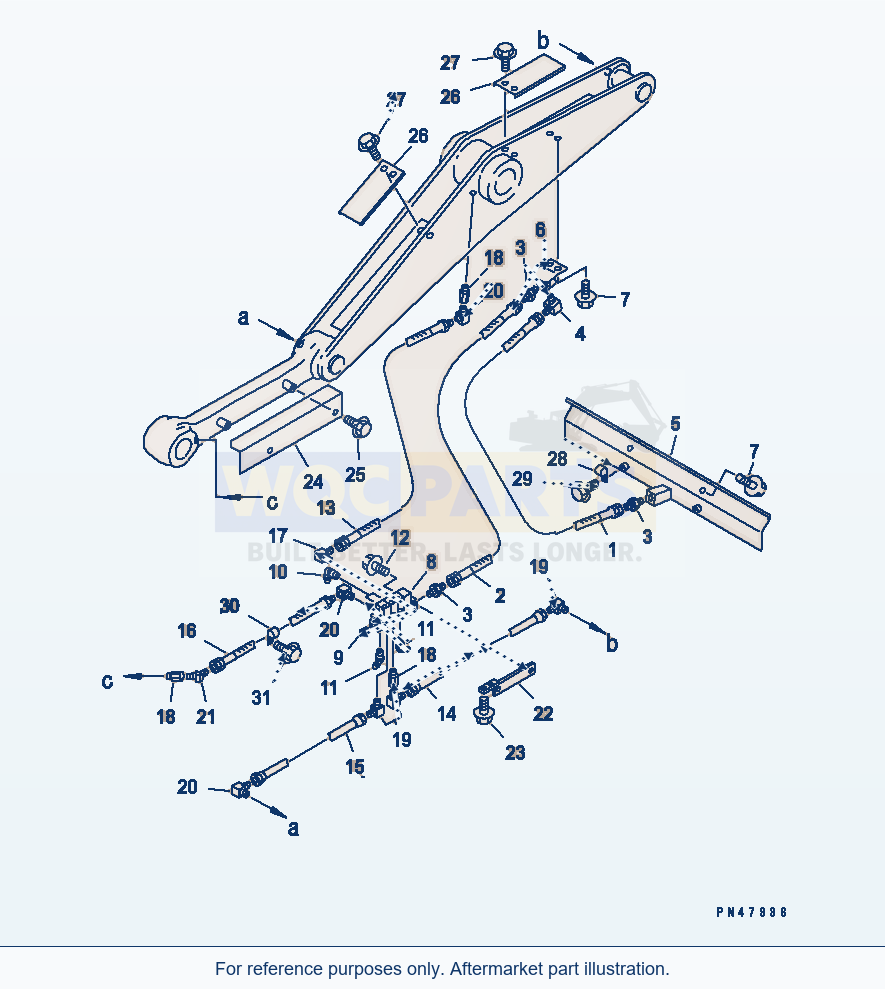

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOSESN: 60001-UP | 1 | Request quote | |||
| 2 | HOSESN: 60001-UP | 1 | Request quote | |||
| 3 | CONNECTORSN: 60001-UP | 2 | Request quote | |||
| 4 | ELBOWSN: 60001-UP | 1 | Request quote | |||
| 5 | BRACKETSN: 60001-UP | 1 | Request quote | |||
| 6 | BRACKETSN: 60001-UP | 1 | Request quote | |||
| 7 | BOLTSN: 60001-UP | 4 | Request quote | |||
| 8 | VALVE ASS'YSN: 60001-UP | 1 | Request quote | |||
| 9 | PLUGSN: 60001-UP | 1 | View product ↗ | |||
| 10 | FITTING,GREASESN: 60001-UP | 2 | View product ↗ | |||
| 11 | FITTING,GREASESN: 60001-UP | 2 | View product ↗ | |||
| 12 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 13 | HOSESN: 60001-UP | 1 | Request quote | |||
| 14 | TUBESN: 60001-UP | 1 | Request quote | |||
| 15 | TUBESN: 60001-UP | 1 | Request quote | |||
| 16 | HOSESN: 60001-UP | 1 | Request quote | |||
| 17 | ELBOWSN: 60001-UP | 1 | Request quote | |||
| 18 | NIPPLESN: 60001-UP | 3 | Request quote | |||
| 19 | ELBOWSN: 60001-UP | 3 | Request quote | |||
| 20 | ELBOWSN: 60001-UP | 2 | Request quote | |||
| 21 | ELBOWSN: 60001-UP | 1 | Request quote | |||
| 22 | BRACKETSN: 60001-UP | 1 | Request quote | |||
| 23 | BOLTSN: 60001-UP | 2 | View product ↗ | |||
| 24 | COVERSN: 60001-UP | 1 | Request quote | |||
| 25 | BOLTSN: 60001-UP | 2 | Request quote | |||
| 26 | PLATESN: 60001-UP | 2 | Request quote | |||
| 27 | BOLTSN: 60001-UP | 4 | Request quote | |||
| 28 | CLIPSN: 60001-UP | 1 | Request quote | |||
| 29 | BOLTSN: 60001-UP | 1 | Request quote | |||
| 30 | CLIPSN: 60001-UP | 2 | View product ↗ | |||
| 31 | BOLTSN: 60001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-3-X Auto Grease System (Bellcrank Line)(#60001-) Parts
Use the Komatsu WA200-3-X Auto Grease System (Bellcrank Line)(#60001-) Parts listing to identify aftermarket replacement parts within the frame and guard section. This wheel loader application is listed for machine serial 60001-62999; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including hose (reference 07109-20307), hose (reference 07108-20304) and connector (reference 423-35-12250). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
