Komatsu WA200-3-X Wheel Loader Element And V-Belt(#60001-63000) Parts
Komatsu WA200-3-X element and v-belt(#60001-63000) parts for machine serial 60001-62999. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Parts Books / Element And V-Belt(#60001-63000).
Checking current purchase options...

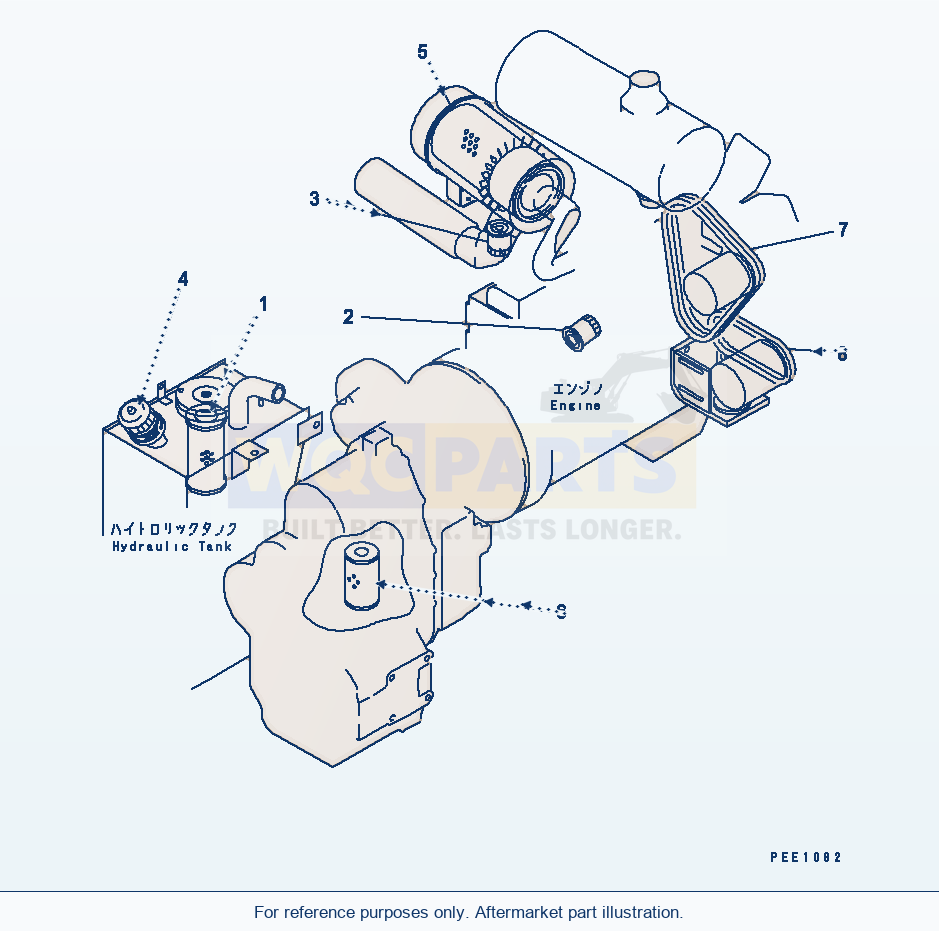

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 17 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ELEMENT,HYDRAULIC TANKSN: 60001-@ | 1 | View product ↗ | |||
| 1 | O-RINGSN: 60001-@ | 1 | View product ↗ | |||
| 2 | CARTRIDGE,ENGINE OILSN: 60001-63000 | 1 | View product ↗ | |||
| 3 | CARTRIDGE,FUELSN: 60001-63000 | 1 | View product ↗ | |||
| 4 | ELEMENT,HYDRAULIC BREATHERSN: 60001-@ | 1 | Request quote | |||
| 4 | O-RINGSN: 60001-@ | 1 | Request quote | |||
| 5 | ELEMENT ASS'Y,AIR CLEANERSN: 60001-63000 | 1 | View product ↗ | |||
| 5 | ELEMENT ASS'Y,OUTERSN: 60001-63000 | 1 | Request quote | |||
| 5 | WASHER,SEALSN: 60001-63000 | 1 | View product ↗ | |||
| 5 | RINGSN: 60001-63000 | 1 | Request quote | |||
| 5 | NUT,WINGSN: 60001-63000 | 1 | Request quote | |||
| 5 | NUTSN: 60001-63000 | 1 | View product ↗ | |||
| 5 | WASHER,SEALSN: 60001-@ | 1 | View product ↗ | |||
| 6 | ELEMENT,TRANSMISSIONSN: 60001-@ | 1 | View product ↗ | |||
| 6 | O-RINGSN: 60001-@ | 1 | View product ↗ | |||
| 7 | V-BELT SET,FANSN: 60001-63000 | 1 | View product ↗ | |||
| 8 | V-BELT,COMPRESSORSN: 60001-63000 | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: ELEMENT,OUTER | QTY: 1 | OPTIONS: SN: 60001-63000
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: ELEMENT,INNER | QTY: 1 | OPTIONS: SN: 60001-63000
Using Komatsu WA200-3-X Wheel Loader Element And V-Belt(#60001-63000) Parts
Use the Komatsu WA200-3-X Wheel Loader Element And V-Belt(#60001-63000) Parts listing to identify aftermarket replacement parts within the parts books section. This wheel loader application is listed for machine serial 60001-62999; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 17 listed part occurrences, including element,hydraulic tank (reference 07063-01054), cartridge,engine oil (reference 600-211-5241) and cartridge,fuel (reference 600-311-7440). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
