Komatsu WA200-3 Wheel Loader Engine Controller (Control Pedal) Parts
Komatsu WA200-3 engine controller (control pedal) parts for machine serial 63001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operatior'S Compartment And Control System / Engine Controller (Control Pedal).
Checking current purchase options...

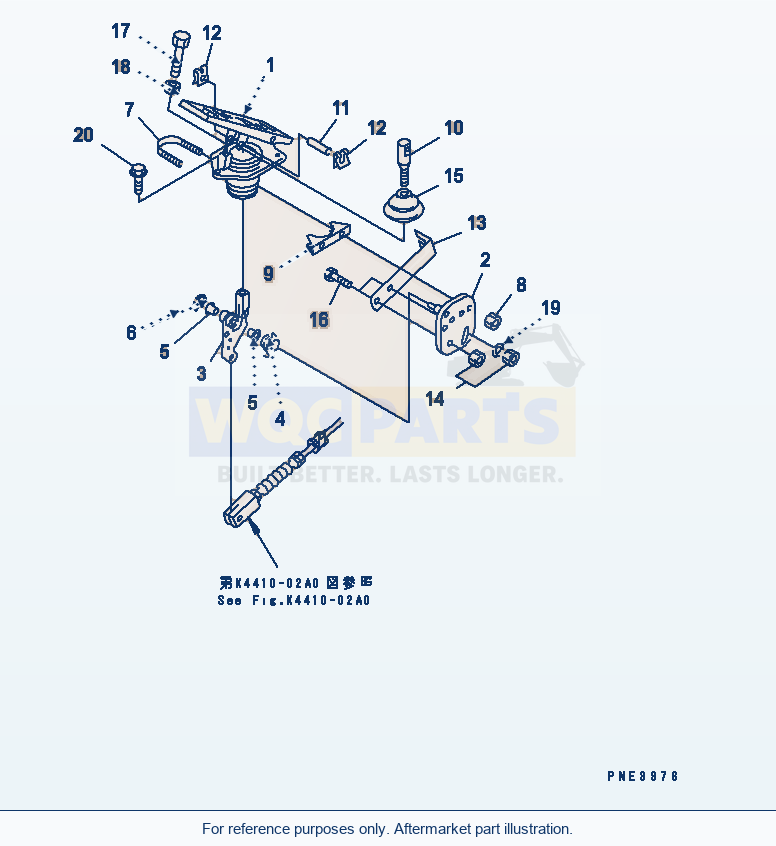

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PEDAL ASS'YSN: 63001-UP | 1 | Request quote | |||
| 1 | PEDAL AND BODY A.SN: 63001-UP | 1 | Request quote | |||
| 2 | PLATESN: 63001-UP | 1 | Request quote | |||
| 3 | LEVERSN: 63001-UP | 1 | Request quote | |||
| 4 | SPRINGSN: 63001-UP | 1 | Request quote | |||
| 5 | BEARINGSN: 63001-UP | 2 | Request quote | |||
| 6 | CLIPSN: 63001-UP | 1 | Request quote | |||
| 7 | U-BOLTSN: 63001-UP | 1 | Request quote | |||
| 8 | NUTSN: 63001-UP | 2 | Request quote | |||
| 9 | SUPPORTSN: 63001-UP | 1 | Request quote | |||
| 10 | RODSN: 63001-UP | 1 | Request quote | |||
| 11 | PINSN: 63001-UP | 1 | Request quote | |||
| 12 | CLIPSN: 63001-UP | 2 | Request quote | |||
| 13 | SUPPORTSN: 63001-UP | 1 | Request quote | |||
| 14 | NUTSN: 63001-UP | 2 | Request quote | |||
| 15 | BOOTSN: 63001-UP | 1 | Request quote | |||
| 16 | BOLTSN: .-UP | 2 | View product ↗ | |||
| 16 | BOLTSN: 63001-. | The part and the part specified in the line immediately above are interchangeable. | 2 | View product ↗ | |||
| 17 | BOLTSN: 63001-UP | 1 | Request quote | |||
| 18 | NUTSN: 63001-UP | 1 | Request quote | |||
| 19 | WASHERSN: 63001-UP | 1 | View product ↗ | |||
| 20 | BOLTSN: 63001-UP | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-3 Wheel Loader Engine Controller (Control Pedal) Parts
Use the Komatsu WA200-3 Wheel Loader Engine Controller (Control Pedal) Parts listing to identify aftermarket replacement parts within the operatior's compartment and control system section. This wheel loader application is listed for machine serial 63001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including pedal ass'y (reference 417-43-21110), pedal and body a. (reference 417-43-11210) and plate (reference 417-43-11220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
