Catalog configuration: Fuel Tank And Related Parts / Water Separator.
Checking current purchase options...

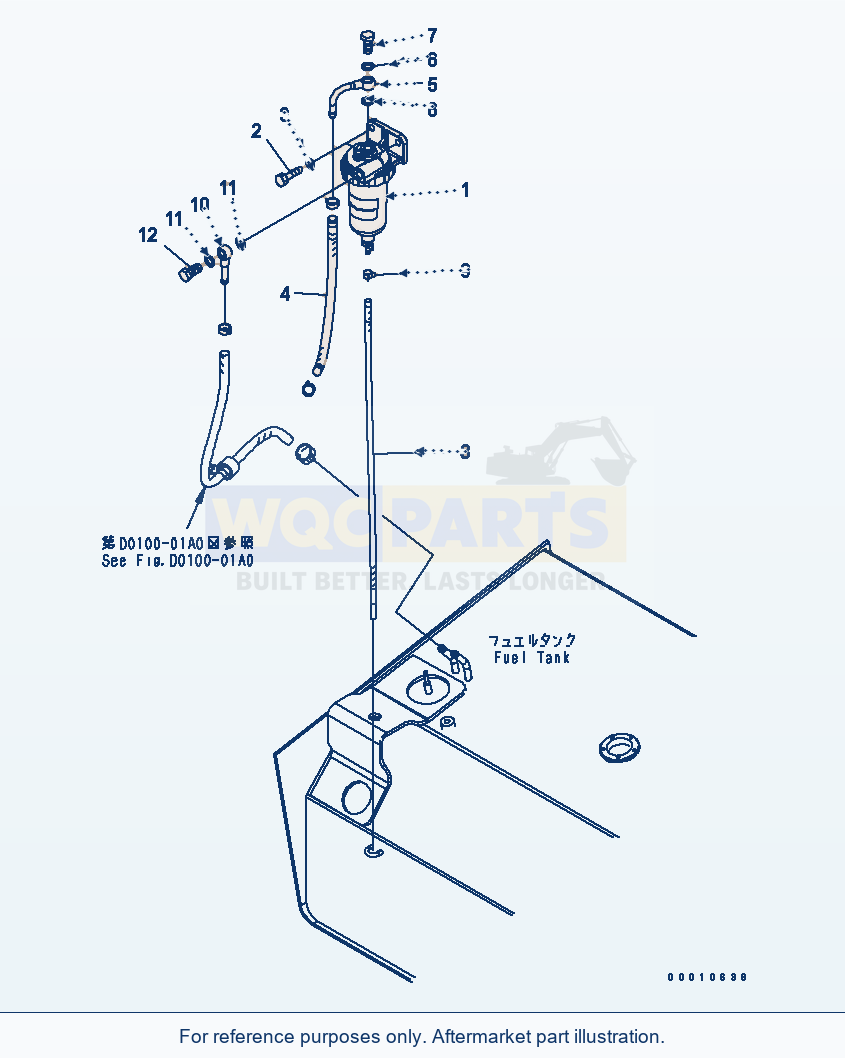

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WATER SEPARATORSN: 65001-UP | 1 | Request quote | |||
| 2 | BOLTSN: 65001-UP | 2 | Request quote | |||
| 3 | WASHERSN: 65001-UP | 2 | View product ↗ | |||
| 4 | HOSE ASS'YSN: 65001-UP | 1 | Request quote | |||
| 5 | JOINTSN: 65001-UP | 1 | Request quote | |||
| 6 | GASKETSN: 65001-UP | 2 | View product ↗ | |||
| 7 | BOLTSN: 65001-UP | 1 | Request quote | |||
| 8 | TUBESN: 65001-UP | 1 | Request quote | |||
| 9 | CLIPSN: 65001-UP | 1 | Request quote | |||
| 10 | JOINTSN: 65001-UP | 1 | Request quote | |||
| 11 | GASKETSN: 65001-UP | 2 | View product ↗ | |||
| 12 | BOLTSN: 65001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-5-SS Wheel Loader Water Separator Parts
Use the Komatsu WA200-5-SS Wheel Loader Water Separator Parts listing to identify aftermarket replacement parts within the fuel tank and related parts section. This wheel loader application is listed for machine serial 65001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including water separator (reference 6738-71-9110), hose ass'y (reference 418-04-31341) and joint (reference 6144-71-5760). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
