Komatsu WA200-5 Wheel Loader Air Cleaner Serial H50001 - UP Parts
Komatsu WA200-5 air cleaner serial h50001 - up parts for machine serial H50001 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: B0 Engine Related Parts / Air Cleaner.
Checking current purchase options...

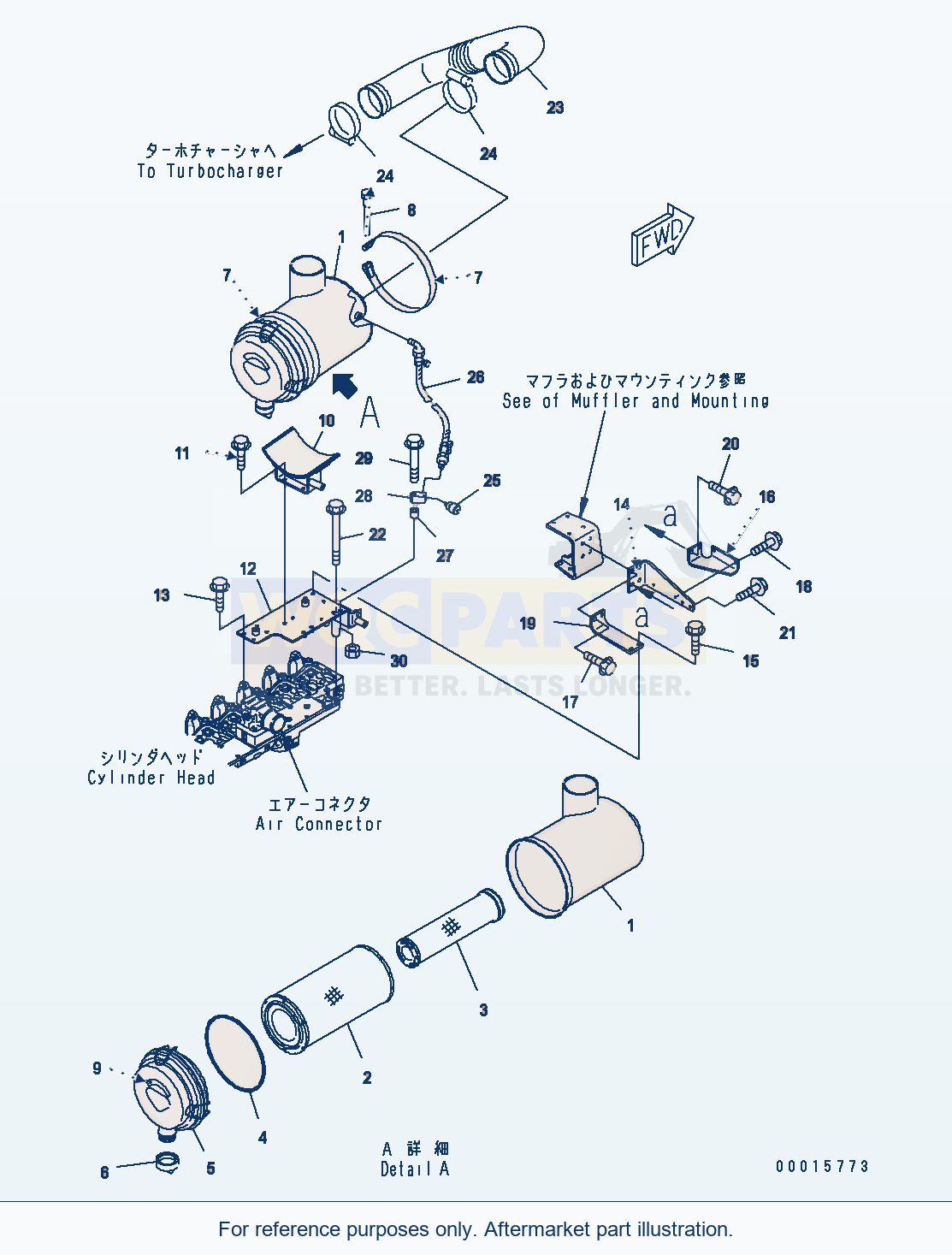

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | AIR CLEANER ASSEMBLYSN: H50051-UP | 1 | Request quote | |||
| 1 | BODYSN: H50051-UP | 1 | Request quote | |||
| 3 | ELEMENT ASSEMBLYSN: H50051-UP | 1 | View product ↗ | |||
| 4 | O-RINGSN: H50051-UP | 1 | Request quote | |||
| 5 | COVER ASSEMBLYSN: H50051-UP | 1 | Request quote | |||
| 8 | PLATESN: H50051-UP | 1 | Request quote | |||
| 6 | VALVESN: H50051-UP | 1 | Request quote | |||
| 7 | BAND ASSEMBLYSN: H50051-UP | 2 | Request quote | |||
| 8 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 9 | PLATE, INSTRUCTIONSN: H50051-UP | 1 | Request quote | |||
| 10 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 11 | BOLTSN: H50051-UP | 4 | View product ↗ | |||
| 12 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 13 | BOLTSN: H50051-UP | 4 | View product ↗ | |||
| 14 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 15 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 16 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 17 | BOLTSN: H50051-UP | 2 | View product ↗ | |||
| 18 | BOLTSN: H50051-UP | 2 | View product ↗ | |||
| 19 | BRACKETSN: H50051-UP | 1 | Request quote | |||
| 20 | BOLTSN: H50051-UP | 2 | View product ↗ | |||
| 21 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 22 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 23 | HOSESN: H50051-UP | 1 | Request quote | |||
| 24 | CLAMPSN: H50051-UP | 2 | View product ↗ | |||
| 25 | INDICATORSN: H50051-UP | 1 | View product ↗ | |||
| 26 | HOSESN: H50051-UP | 1 | Request quote | |||
| 27 | SPACERSN: H50051-UP | 1 | Request quote | |||
| 28 | BLOCKSN: H50051-UP | 1 | Request quote | |||
| 29 | BOLTSN: H50051-UP | 1 | Request quote | |||
| 30 | NUTSN: H50051-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: ELEMENT | QTY: 1 | OPTIONS: SN: H50051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: ELEMENT | QTY: 1 | OPTIONS: SN: H50051-UP
Using Komatsu WA200-5 Wheel Loader Air Cleaner Serial H50001 - UP Parts
Use the Komatsu WA200-5 Wheel Loader Air Cleaner Serial H50001 - UP Parts listing to identify aftermarket replacement parts within the b0 engine related parts section. This wheel loader application is listed for machine serial H50001 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including air cleaner assembly (reference 6738-81-7400), body (reference 6738-81-7410) and element assembly (reference 600-185-3100). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
