Komatsu WA200-6 Wheel Loader Marks And Plates Decal (#C10001-) Parts
Komatsu WA200-6 marks and plates decal (#c10001-) parts for machine serial C10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates / Marks And Plates Decal (#C10001-).
Checking current purchase options...

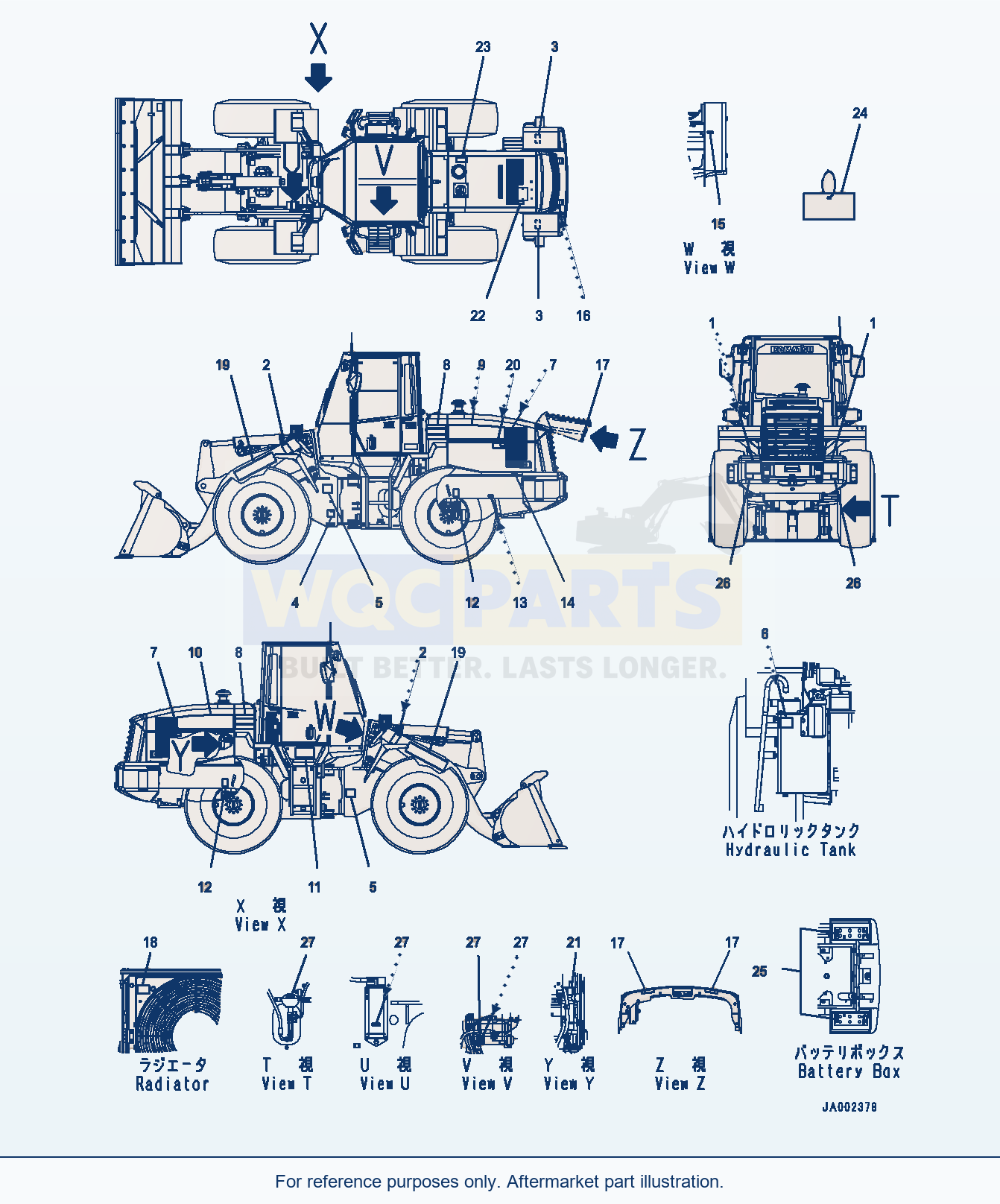

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, APPROACHSN: C10001-UP | 2 | Request quote | |||
| 2 | PLATESN: C10001-UP | 2 | Request quote | |||
| 3 | PLATE, SAFETY, ELECTRIC SHOCKSN: C10001-UP | 2 | Request quote | |||
| 4 | PLATESN: C10001-UP | 1 | Request quote | |||
| 5 | PLATE, DANGER, KEEP OFFSN: C10001-UP | 2 | Request quote | |||
| 6 | PLATE, SAFETY, HIGH TEMPERATURESN: C10001-UP | 1 | Request quote | |||
| 7 | PLATE, SAFETY, FANSN: C10001-UP | 2 | Request quote | |||
| 8 | PLATESN: C10001-UP | 2 | Request quote | |||
| 9 | PLATE,LHSSN: C10001-UP | 1 | Request quote | |||
| 10 | PLATE,RHSSN: C10001-UP | 1 | Request quote | |||
| 11 | OIL CHARTSN: C10001-UP | 1 | Request quote | |||
| 12 | MARKSN: C10001-UP | 4 | Request quote | |||
| 12 | PLATESN: C10001-UP | 1 | Request quote | |||
| 16 | PLATE, CAUTION, DIESEL FUELSN: C10001-UP | 1 | Request quote | |||
| 17 | PLATE, LOW CLEARANCESN: C10001-UP | 4 | Request quote | |||
| 18 | PLATE, FAN ROTATION ATTENTIONSN: C10001-UP | 1 | Request quote | |||
| 19 | DECAL, KOMATSU LOGOSN: C10001-UP | 2 | Request quote | |||
| 20 | PLATE, MARKSN: C10001-UP | 1 | Request quote | |||
| 21 | PLATE, PRE-FILTER CAUTIONSN: C10001-UP | 1 | Request quote | |||
| 22 | PLATE, SAFETY,HIGH TEMPERATURESN: C10001-UP | 1 | Request quote | |||
| 23 | PLATE, ETHER MIXING PREVENTIONSN: C10001-UP | 1 | Request quote | |||
| 24 | TAG, CHECK AND MAINTENANCESN: C10001-UP | 1 | Request quote | |||
| 25 | PLATE, BATTERYSN: C10001-UP | 2 | Request quote | |||
| 26 | PLATE, REFLECTORSN: C10001-UP | 2 | Request quote | |||
| 27 | PLATE, ENGLISHSN: C10001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, REAR AXLE, REAR AXLE
PLATE, RADIATOR DRAIN
PLATE, CYLINDER, CYLINDER
Using Komatsu WA200-6 Wheel Loader Marks And Plates Decal (#C10001-) Parts
Use the Komatsu WA200-6 Wheel Loader Marks And Plates Decal (#C10001-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial C10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including plate, approach (reference 09812-13000), plate (reference 09807-C0883) and plate, safety, electric shock (reference 09808-03000). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
