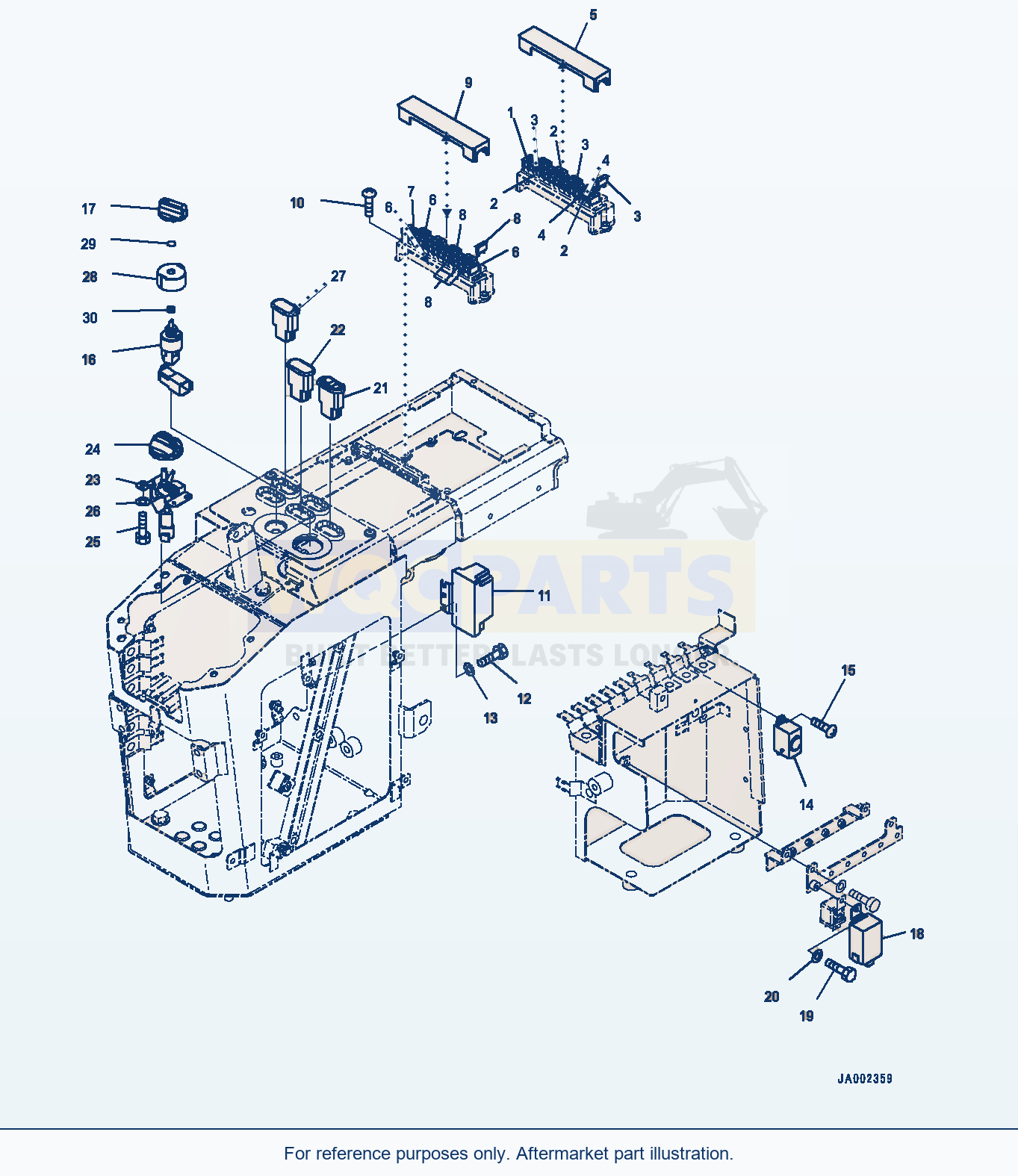

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 30 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | FUSE, 10AMP.SN: C10001-UP | 11 | View product ↗ | |||
| 2 | FUSE, 15AMP.SN: C10001-UP | 3 | Request quote | |||
| 3 | FUSE, 20AMP.SN: C10001-UP | 3 | View product ↗ | |||
| 4 | FUSE, 30AMP.SN: C10001-UP | 2 | Request quote | |||
| 5 | COVERSN: C10001-UP | 1 | Request quote | |||
| 6 | FUSE, 5AMP.SN: C10001-UP | 3 | Request quote | |||
| 7 | FUSE, 10AMP.SN: C10001-UP | 10 | View product ↗ | |||
| 8 | FUSE, 20AMP.SN: C10001-UP | 5 | View product ↗ | |||
| 9 | COVERSN: C10001-UP | 1 | Request quote | |||
| 10 | SCREWSN: C10001-UP | 4 | Request quote | |||
| 11 | RELAYSN: C10001-UP | 1 | Request quote | |||
| 12 | BOLTSN: C10001-UP | 2 | View product ↗ | |||
| 13 | WASHERSN: C10001-UP | 2 | View product ↗ | |||
| 14 | BUZZERSN: C10001-UP | 1 | Request quote | |||
| 15 | SCREWSN: C10001-UP | 2 | Request quote | |||
| 16 | SWITCH, TRACTION CONTROLSN: C10001-UP | 1 | Request quote | |||
| 17 | KNOBSN: C10001-UP | 1 | Request quote | |||
| 18 | DIRECTIONAL SIGNAL UNITSN: C10001-UP | 1 | Request quote | |||
| 19 | BOLTSN: C10001-UP | 1 | View product ↗ | |||
| 20 | WASHERSN: C10001-UP | 1 | View product ↗ | |||
| 21 | SWITCH, TRACTION CONTROLSN: C10001-UP | 1 | Request quote | |||
| 22 | COVERSN: C10001-UP | 1 | Request quote | |||
| 23 | POTENTIOMETER ASSEMBLYSN: C10001-UP | 1 | View product ↗ | |||
| 24 | KNOBSN: C10001-UP | 1 | View product ↗ | |||
| 25 | BOLTSN: C10001-UP | 2 | View product ↗ | |||
| 26 | WASHERSN: C10001-UP | 2 | View product ↗ | |||
| 27 | COVERSN: C10001-UP | 2 | Request quote | |||
| 28 | COVERSN: C10001-UP | 1 | Request quote | |||
| 29 | O-RINGSN: C10001-UP | 1 | Request quote | |||
| 30 | COLLARSN: C10001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
