Komatsu WA200-6 Wheel Loader Transfer Parts
Komatsu WA200-6 transfer parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transfer.
Checking current purchase options...

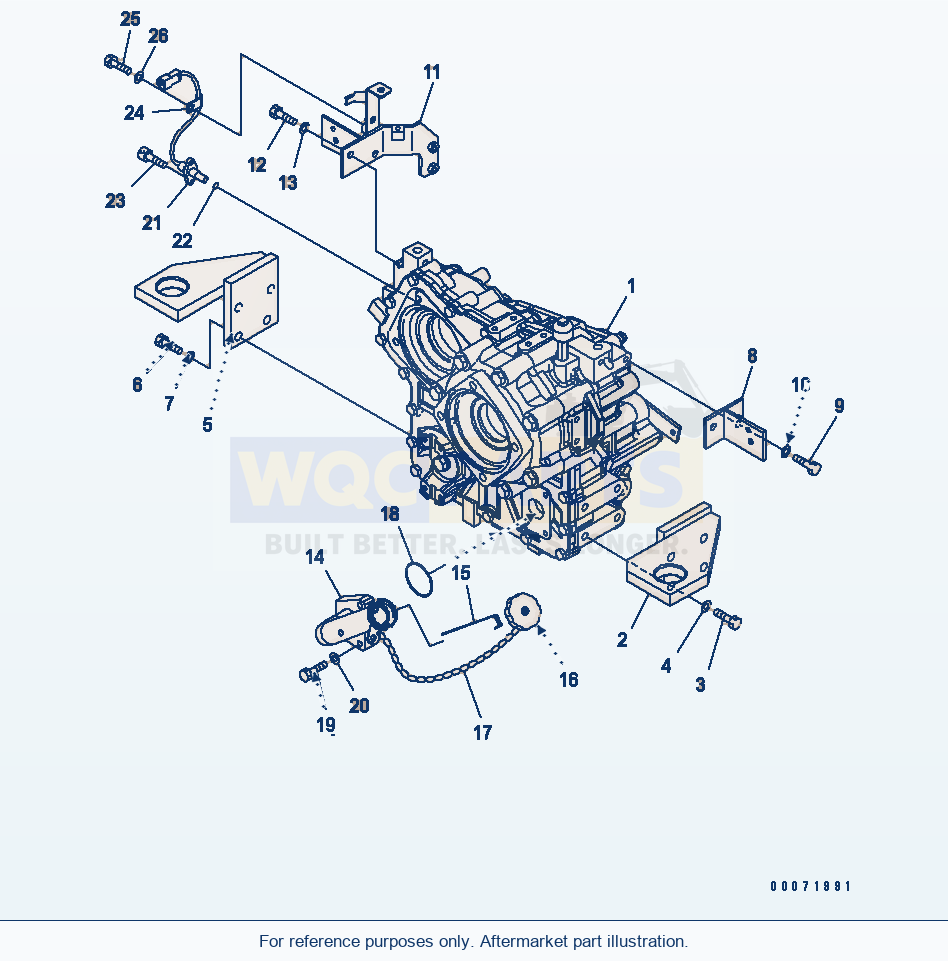

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 28 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | TRANSFER ASS'YSN: 70001-UP | 1 | Request quote | |||
| 1 | TRANSFER ASS'YSN: 70001-UP | 1 | Request quote | |||
| 2 | BRACKET,L.H.SN: 70001-UP | 1 | Request quote | |||
| 3 | BOLTSN: 70001-UP | 4 | Request quote | |||
| 4 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 5 | BRACKET,R.H.SN: 70001-UP | 1 | Request quote | |||
| 6 | BOLTSN: 70001-UP | 4 | Request quote | |||
| 7 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 8 | BRACKETSN: 70001-UP | 1 | Request quote | |||
| 9 | BOLTSN: 70001-UP | 2 | Request quote | |||
| 10 | WASHERSN: 70001-UP | 2 | View product ↗ | |||
| 11 | BRACKETSN: 70001-UP | 1 | Request quote | |||
| 12 | BOLTSN: 70001-UP | 2 | Request quote | |||
| 13 | WASHERSN: 70001-UP | 2 | View product ↗ | |||
| 14 | TUBE,FILTERSN: 70001-UP | 1 | Request quote | |||
| 15 | GAUGESN: 70001-UP | 1 | Request quote | |||
| 16 | CAP ASS'YSN: 70001-UP | 1 | View product ↗ | |||
| 16 | GASKETSN: 70001-UP | 1 | Request quote | |||
| 17 | CHAINSN: 70001-UP | 1 | Request quote | |||
| 18 | O-RINGSN: 70001-UP | 1 | Request quote | |||
| 19 | BOLTSN: 70001-UP | 3 | Request quote | |||
| 20 | WASHERSN: 70001-UP | 3 | View product ↗ | |||
| 21 | SENSORSN: 70001-UP | 1 | Request quote | |||
| 22 | O-RINGSN: 70001-UP | 1 | Request quote | |||
| 23 | BOLTSN: 70001-UP | 2 | Request quote | |||
| 24 | CLIPSN: 70001-UP | 1 | Request quote | |||
| 25 | BOLTSN: 70001-UP | 1 | Request quote | |||
| 26 | WASHERSN: 70001-UP | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200-6 Wheel Loader Transfer Parts
Use the Komatsu WA200-6 Wheel Loader Transfer Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 28 listed part occurrences, including transfer ass'y (reference 417-17-40001), transfer ass'y (reference 417-17-31004) and bracket,l.h. (reference 418-14-31113). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
