Komatsu WA200PT-5 Rear Combination Lamp And Number Plate Parts
Komatsu WA200PT-5 rear combination lamp and number plate parts for machine serial 65001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical System / Rear Combination Lamp And Number Plate.
Checking current purchase options...

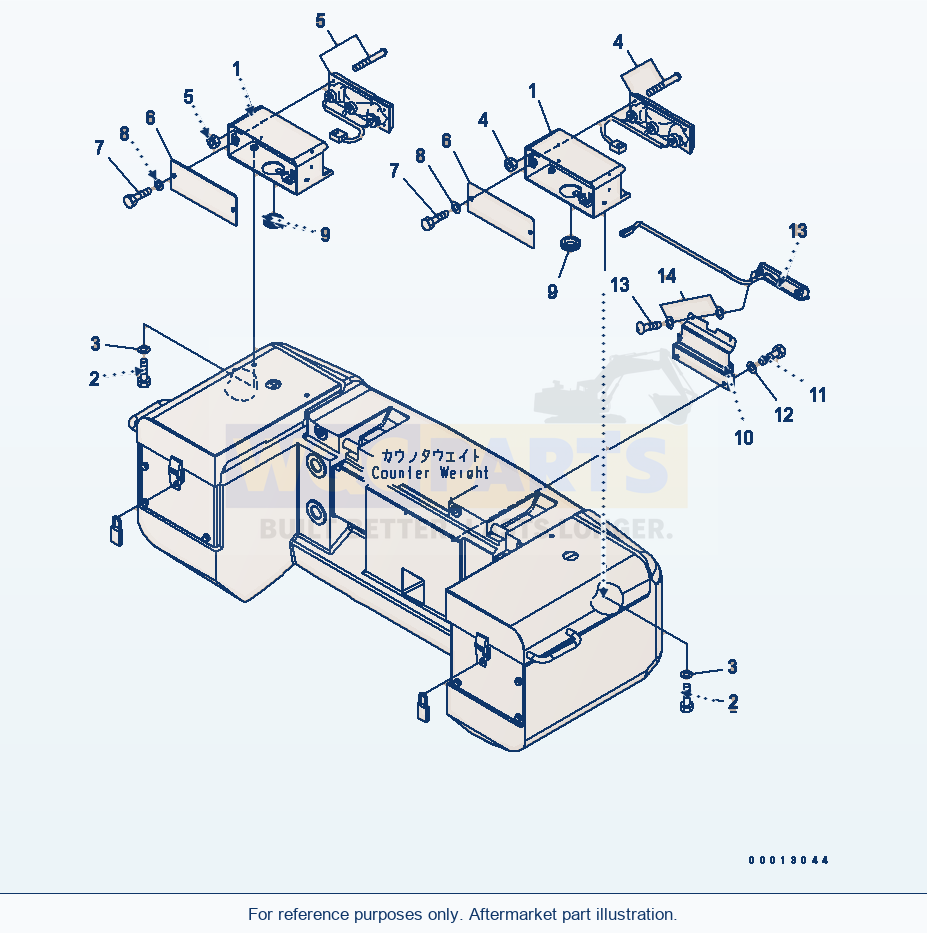

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BRACKETSN: 65001-UP | 2 | Request quote | |||
| 2 | BOLTSN: 65001-UP | 4 | Request quote | |||
| 3 | WASHERSN: 65001-UP | 4 | View product ↗ | |||
| 4 | LAMP ASS'YSN: 65001-UP | 1 | Request quote | |||
| 4 | SCREWSN: 65001-UP | 4 | Request quote | |||
| 4 | NUTSN: 65001-UP | 4 | Request quote | |||
| 5 | LAMP ASS'YSN: 65001-UP | 1 | Request quote | |||
| 5 | SCREWSN: 65001-UP | 4 | Request quote | |||
| 5 | NUTSN: 65001-UP | 4 | Request quote | |||
| 6 | PLATESN: 65001-UP | 2 | Request quote | |||
| 7 | BOLTSN: 65001-UP | 4 | Request quote | |||
| 8 | WASHERSN: 65001-UP | 4 | View product ↗ | |||
| 9 | GROMMETSN: 65001-UP | 2 | Request quote | |||
| 10 | BRACKETSN: 65001-UP | 1 | Request quote | |||
| 11 | BOLTSN: 65001-UP | 2 | Request quote | |||
| 12 | WASHERSN: 65001-UP | 2 | View product ↗ | |||
| 13 | LAMPSN: 65001-UP | 1 | Request quote | |||
| 13 | BULB, 12WSN: 65001-UP | 2 | View product ↗ | |||
| 14 | WASHERSN: 65001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200PT-5 Rear Combination Lamp And Number Plate Parts
Use the Komatsu WA200PT-5 Rear Combination Lamp And Number Plate Parts listing to identify aftermarket replacement parts within the electrical system section. This wheel loader application is listed for machine serial 65001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including bracket (reference 418-06-31541), lamp ass'y (reference 418-06-33230) and lamp ass'y (reference 418-06-33260). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
