Komatsu WA200PT-5 Wheel Loader Central Lubrication Parts
Komatsu WA200PT-5 central lubrication parts for machine serial H60051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: J0 Main/Revolving Frame And Related Parts / Central Lubrication.
Checking current purchase options...

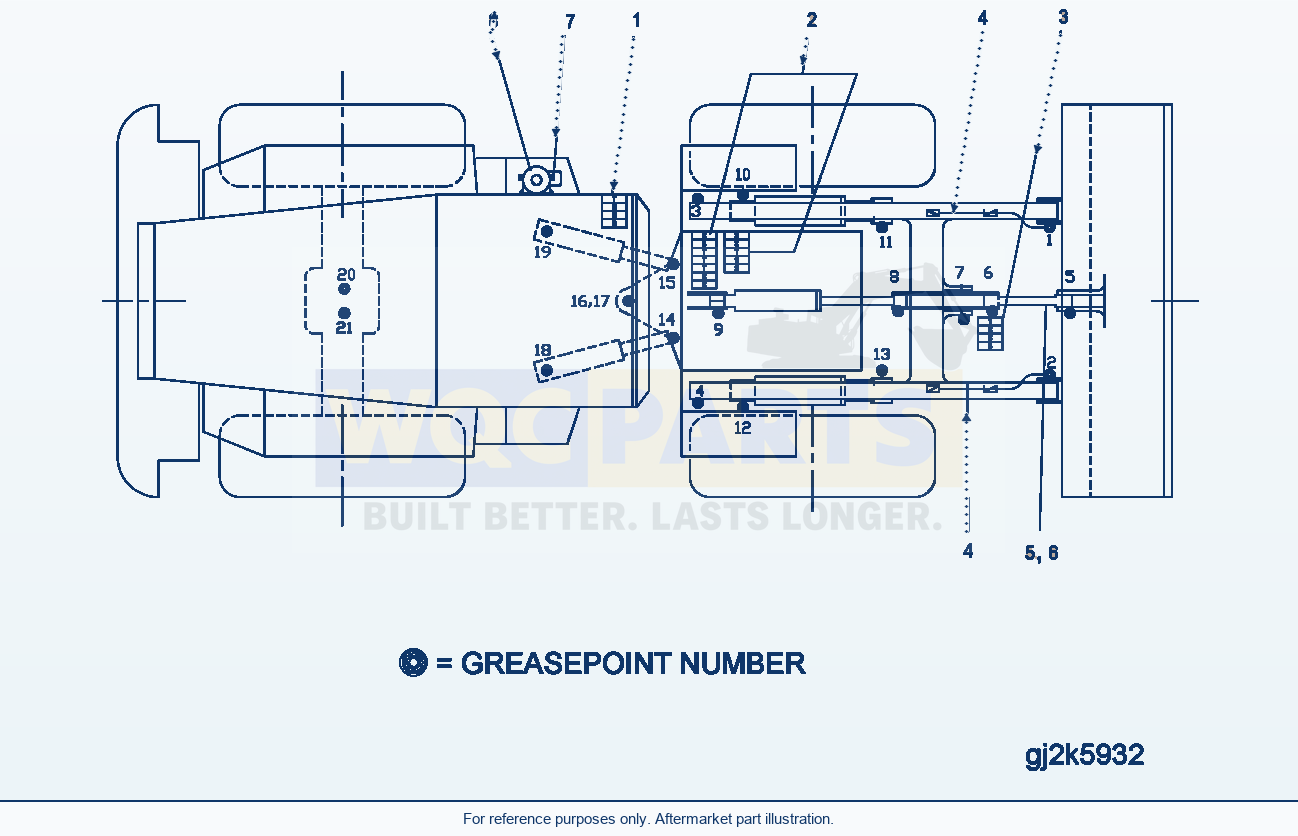

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PROGRESSIVE FEEDERSN: H60051-UP | 1 | Request quote | |||
| 2 | PROGRESSIVE FEEDERSN: H60051-UP | 1 | Request quote | |||
| 3 | DISTRIBUTORSN: H60051-UP | 1 | Request quote | |||
| 3 | DISTRIBUTORSN: H60051-UP | 1 | Request quote | |||
| 4 | COVERSN: H60051-UP | 2 | Request quote | |||
| 7 | EXTENSION CABLESN: H60051-UP | 1 | Request quote | |||
| 8 | PUMPSN: H60051-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: TUBE PROTECTOR | QTY: 1 | OPTIONS: SN: H60051-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: NUT | QTY: 2 | OPTIONS: SN: H60051-UP
Using Komatsu WA200PT-5 Wheel Loader Central Lubrication Parts
Use the Komatsu WA200PT-5 Wheel Loader Central Lubrication Parts listing to identify aftermarket replacement parts within the j0 main/revolving frame and related parts section. This wheel loader application is listed for machine serial H60051 - UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including progressive feeder (reference 418-09-H0240), progressive feeder (reference 417-09-H0290) and distributor (reference 419-09-H2680). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
