Komatsu WA200PT-5 Wheel Loader Rops Cab (Wiper) Parts
Komatsu WA200PT-5 rops cab (wiper) parts for machine serial 65001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Wiper).
Checking current purchase options...

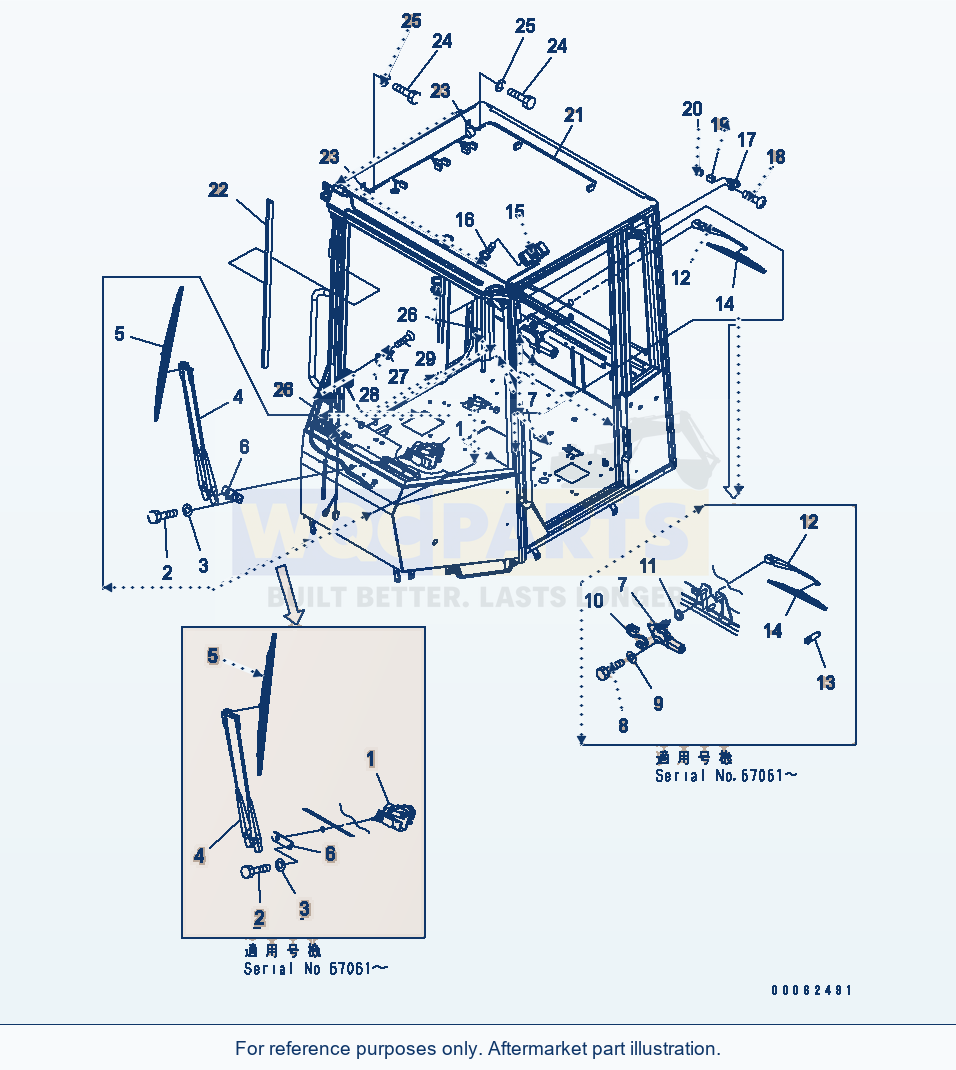

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 39 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 10 | CAB ASS'YSN: 67061-UP | 1 | Request quote | |||
| 11 | CAB ASS'YSN: 65001-67060 | 1 | Request quote | |||
| 1 | WIPER MOTORSN: 67118-UP | 1 | Request quote | |||
| 1 | WIPER MOTORSN: 65001-67117 | 1 | Request quote | |||
| 2 | BOLTSN: 67118-UP | 1 | Request quote | |||
| 2 | BOLTSN: 65001-67117 | 1 | Request quote | |||
| 3 | WASHERSN: 65001-UP | 1 | Request quote | |||
| 4 | ARMSN: 67118-UP | 1 | Request quote | |||
| 4 | ARMSN: 65001-67117 | 1 | Request quote | |||
| 5 | BLADESN: 67118-UP | 1 | View product ↗ | |||
| 5 | BLADESN: 65001-67117 | 1 | Request quote | |||
| 6 | PIVOTSN: 65001-67117 | 1 | Request quote | |||
| 7 | MOTOR ASS'YSN: 67118-UP | 1 | Request quote | |||
| 7 | WIPER MOTORSN: 65001-67060 | 1 | Request quote | |||
| 8 | BOLTSN: 67061-UP | 3 | View product ↗ | |||
| 9 | WASHERSN: 67061-UP | 3 | View product ↗ | |||
| 10 | WIRING HARNESSSN: 67061-UP | 1 | Request quote | |||
| 11 | SPACERSN: 67061-UP | 1 | Request quote | |||
| 12 | WIPER ARMSN: 67118-UP | 1 | Request quote | |||
| 12 | WIPER ARMSN: 65001-67117 | 1 | Request quote | |||
| 13 | NOZZLE ASS'YSN: 67118-UP | 1 | Request quote | |||
| 14 | BLADE,WIPERSN: 67118-UP | 1 | View product ↗ | |||
| 14 | BLADE,WIPERSN: 65001-67117 | 1 | Request quote | |||
| 15 | LAMP ASS'YSN: 65001-UP | 1 | Request quote | |||
| 16 | SCREWSN: 65001-UP | 2 | Request quote | |||
| 17 | SWITCH,DOORSN: 65001-UP | 2 | Request quote | |||
| 18 | SCREWSN: 65001-UP | 2 | Request quote | |||
| 19 | CONNECTORSN: 65001-UP | 2 | Request quote | |||
| 20 | HOLDERSN: 65001-UP | 2 | Request quote | |||
| 21 | WIRING HARNESSSN: 67118-UP | 1 | Request quote | |||
| 21 | WIRING HARNESSSN: 65001-67117 | 1 | Request quote | |||
| 22 | DUCTSN: 65001-UP | 1 | Request quote | |||
| 23 | CLIPSN: 65001-UP | 2 | Request quote | |||
| 24 | BOLTSN: 65001-UP | 3 | Request quote | |||
| 25 | WASHERSN: 65001-UP | 3 | View product ↗ | |||
| 26 | HOSE, 4300MMSN: 65001-UP | 2 | Request quote | |||
| 27 | STRIKERSN: 65001-UP | 2 | Request quote | |||
| 28 | SHIMSN: 65001-UP | 2 | Request quote | |||
| 29 | SCREWSN: 65001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-51A0 TO K0210-58A0.
Using Komatsu WA200PT-5 Wheel Loader Rops Cab (Wiper) Parts
Use the Komatsu WA200PT-5 Wheel Loader Rops Cab (Wiper) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 65001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 39 listed part occurrences, including cab ass'y (reference 418-926-3504), cab ass'y (reference 418-926-3502) and wiper motor (reference 418-926-3932). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
