Komatsu WA200PT-5 Tire (17.5-25-16Pr-L3) (With Tube Tire) Parts
Komatsu WA200PT-5 tire (17.5-25-16pr-l3) (with tube tire) parts for machine serial 65001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Suspension And Wheel Related Parts / Tire (17.5-25-16Pr-L3) (With Tube Tire).
Checking current purchase options...

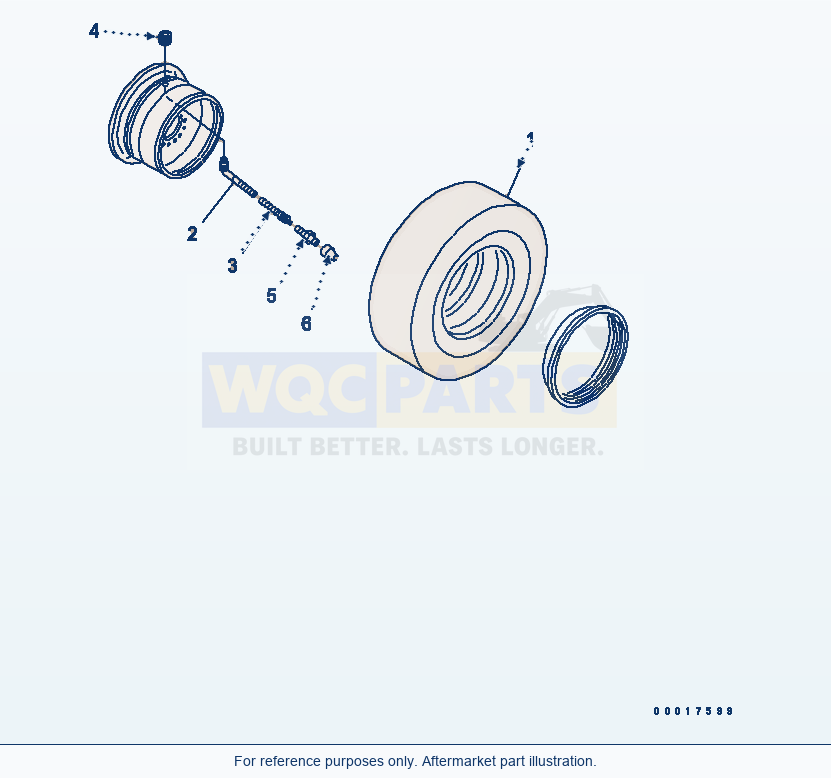

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 4 | TIRE ASS'YSN: 65001-UP | 4 | Request quote | |||
| 1 | TIRESN: 65001-UP | 4 | Request quote | |||
| 1 | TIRE ASS'YSN: 65001-UP | 4 | Request quote | |||
| 1 | TIRESN: 65001-UP | 4 | Request quote | |||
| 1 | TIRE ASS'YSN: 65001-UP | 4 | Request quote | |||
| 1 | TIRESN: 65001-UP | 4 | Request quote | |||
| 12 | VALVESN: 65001-UP | 4 | Request quote | |||
| 2 | STEMSN: 65001-UP | 4 | Request quote | |||
| 3 | CORESN: 65001-UP | 4 | Request quote | |||
| 4 | SEATSN: 65001-UP | 4 | Request quote | |||
| 5 | ADAPTERSN: 65001-UP | 4 | Request quote | |||
| 6 | CAPSN: 65001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
BRIDGESTONE
TOYO
YOKOHAMA
Using Komatsu WA200PT-5 Tire (17.5-25-16Pr-L3) (With Tube Tire) Parts
Use the Komatsu WA200PT-5 Tire (17.5-25-16Pr-L3) (With Tube Tire) Parts listing to identify aftermarket replacement parts within the suspension and wheel related parts section. This wheel loader application is listed for machine serial 65001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including tire ass'y (reference 418-30-21300), tire (reference 418-30-21310) and tire ass'y (reference 418-30-21400). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
