Komatsu WA200PTL-5 Wheel Loader Floor (Console Box) (R.H.) Parts

Komatsu WA200PTL-5 floor (console box) (r.h.) parts for machine serial 65001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.

Catalog configuration: Operator'S Compartment And Control System / Floor (Console Box) (R.H.).

WA200PTL-5Machine serial 65001-UP35 part occurrences

Checking current purchase options...

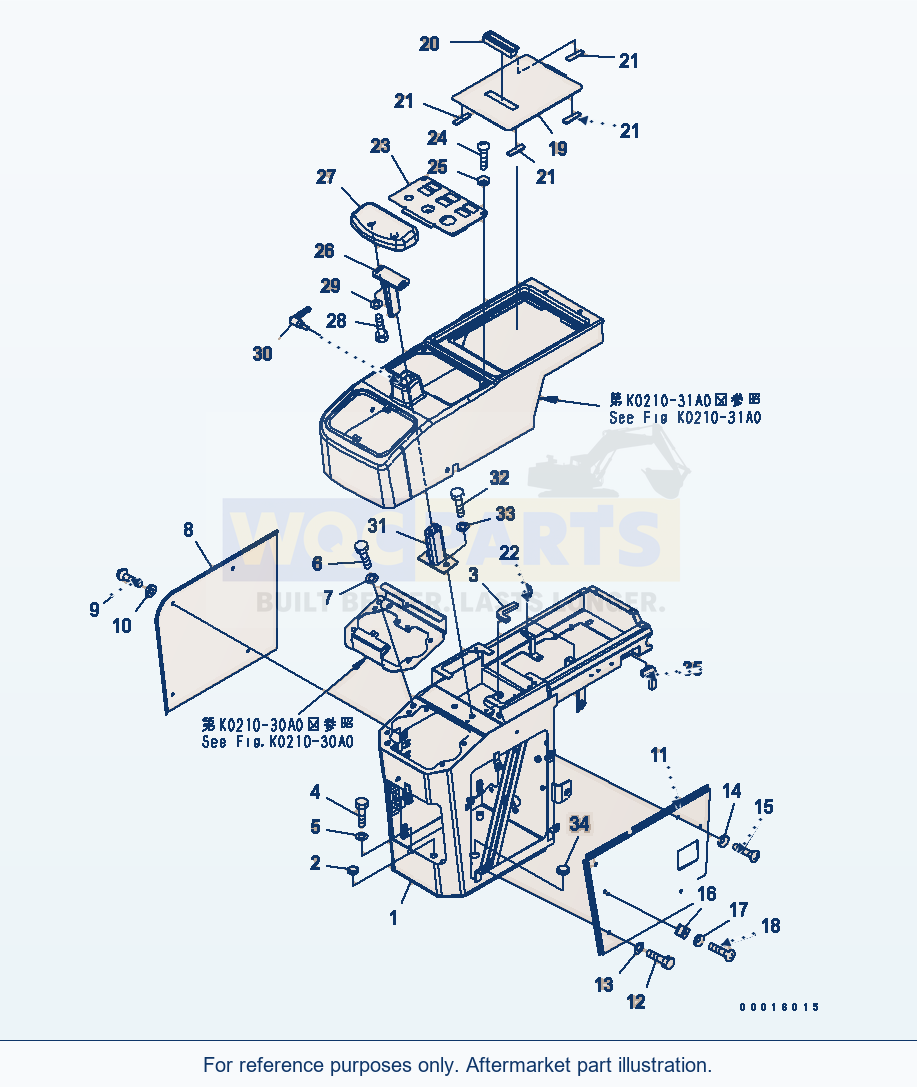

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.

Assembly parts

Showing all 35 part occurrences

Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.

Line	Description	Qty	Purchase options
1	BOXSN: 65001-UP	1	Request quote
2	CAPSN: 65001-UP	2	Request quote
3	FINISHERSN: 65001-UP	1	Request quote
4	BOLTSN: 65001-UP	4	Request quote
5	WASHERSN: 65001-UP	4	View product ↗
6	BOLTSN: 65001-UP	2	Request quote
7	WASHERSN: 65001-UP	2	View product ↗
8	PLATESN: 65001-UP	1	Request quote
9	SCREWSN: 65001-UP	10	Request quote
10	WASHERSN: 65001-UP	10	Request quote
11	PLATESN: 65001-UP	1	Request quote
12	BOLTSN: 65001-UP	2	View product ↗
13	WASHERSN: 65001-UP	2	View product ↗
14	WASHERSN: 65001-UP	2	Request quote
15	SCREWSN: 65001-UP	2	Request quote
16	PLATESN: 65001-UP	1	Request quote
17	WASHERSN: 65001-UP	2	Request quote
18	SCREWSN: 65001-UP	2	Request quote
19	COVERSN: 65001-UP	1	Request quote
20	HANDLESN: 65001-UP	1	Request quote
21	CUSHIONSN: 65001-UP	4	Request quote
22	CLIPSN: 65001-UP	2	Request quote
23	COVERSN: 65001-UP	1	Request quote
24	SCREWSN: 65001-UP	2	Request quote
25	WASHERSN: 65001-UP	2	Request quote
26	BRACKETSN: 65001-UP	1	Request quote
27	RESTSN: 65001-UP	1	Request quote
28	BOLTSN: 65001-UP	2	View product ↗
29	WASHERSN: 65001-UP	2	View product ↗
30	LEVERSN: 65001-UP	1	Request quote
31	BRACKETSN: 65001-UP	1	Request quote
32	BOLTSN: 65001-UP	2	Request quote
33	WASHERSN: 65001-UP	2	View product ↗
34	CAPSN: 65001-UP	1	Request quote
35	FINISHERSN: 65001-UP	1	Request quote

Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
