Komatsu WA200PTL-5 Wheel Loader Floor (Cover) Parts
Komatsu WA200PTL-5 floor (cover) parts for machine serial 65001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Floor (Cover).
Checking current purchase options...

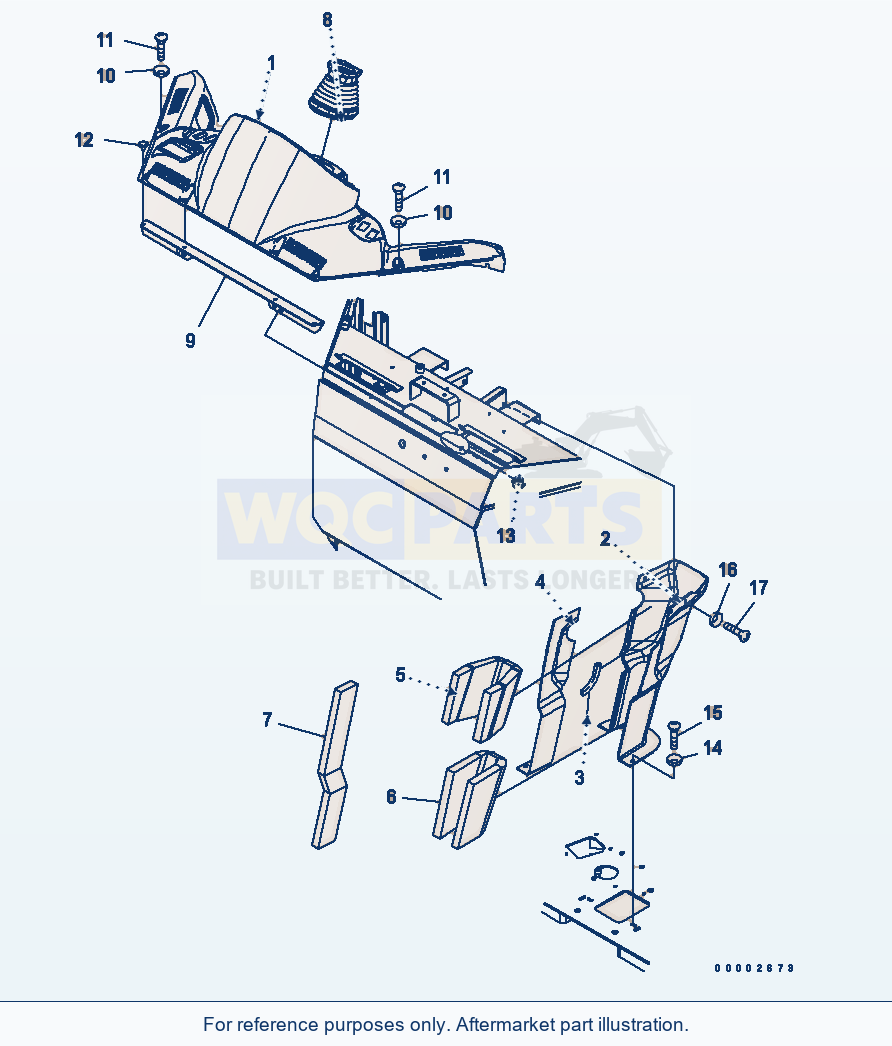

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 20 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | COVERSN: 65001-UP | 1 | Request quote | |||
| 2 | COVERSN: 65001-UP | 1 | Request quote | |||
| 3 | FINISHERSN: 65001-UP | 1 | Request quote | |||
| 4 | COVERSN: 65001-UP | 1 | Request quote | |||
| 5 | SHEETSN: 65079-UP | 1 | Request quote | |||
| 5 | SHEETSN: 65001-65078 | 1 | Request quote | |||
| 6 | SHEETSN: 65079-UP | 1 | Request quote | |||
| 6 | SHEETSN: 65001-65078 | 1 | Request quote | |||
| 7 | SHEETSN: 65079-UP | 1 | Request quote | |||
| 7 | SHEETSN: 65001-65078 | 1 | Request quote | |||
| 8 | BOOTSN: 65001-UP | 1 | Request quote | |||
| 9 | PLATESN: 65001-UP | 1 | Request quote | |||
| 10 | WASHERSN: 65001-UP | 8 | Request quote | |||
| 11 | SCREWSN: 65001-UP | 8 | Request quote | |||
| 12 | RIVETSN: 65001-UP | 4 | Request quote | |||
| 13 | KNOBSN: 65001-UP | 2 | Request quote | |||
| 14 | WASHERSN: 65001-UP | 3 | Request quote | |||
| 15 | SCREWSN: 65001-UP | 3 | Request quote | |||
| 16 | WASHERSN: 65001-UP | 4 | Request quote | |||
| 17 | SCREWSN: 65001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA200PTL-5 Wheel Loader Floor (Cover) Parts
Use the Komatsu WA200PTL-5 Wheel Loader Floor (Cover) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 65001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 20 listed part occurrences, including cover (reference 418-54-32612), cover (reference 418-54-32644) and finisher (reference 421-54-22520). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
