Komatsu WA250-1 Wheel Loader Cylinder Block Parts
Komatsu WA250-1 cylinder block parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D105-1TT S/N 86423-UP / Engine Cylinder Block / Cylinder Block.
Checking current purchase options...

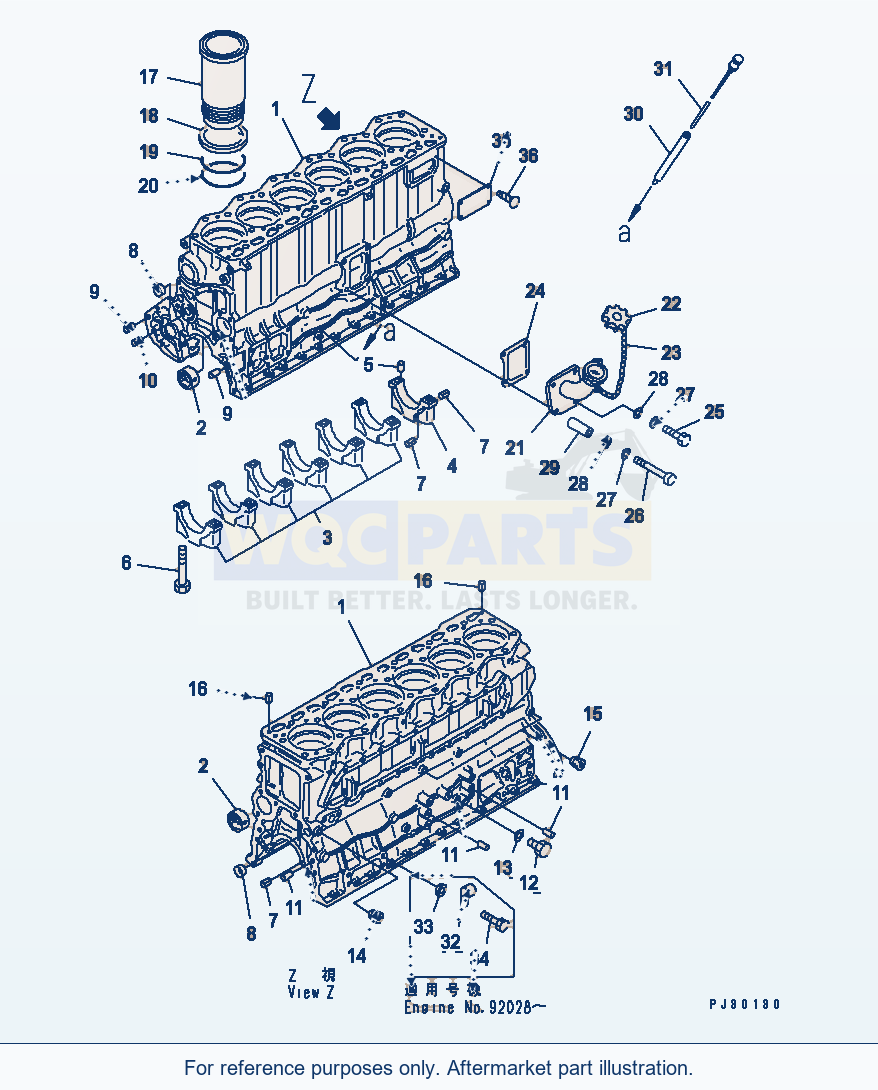

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 48 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | CYLINDER BLOCK ASS'YSN: 86423-UP | 1 | Request quote | |||
| 2 | BUSHING,CAMSHAFTSN: 86423-UP | 4 | View product ↗ | |||
| 3 | CAP,MAIN METAL, NO.1,2,3,4,5,6SN: 86423-UP | This indicates a part supplied as semi-finished. It requires additional work before installation. | 6 | Request quote | |||
| 4 | CAP,MAIN METAL, NO.7SN: 86423-UP | This indicates a part supplied as semi-finished. It requires additional work before installation. | 1 | Request quote | |||
| 5 | PIN,DOWELSN: 86423-UP | 1 | View product ↗ | |||
| 6 | BOLT,EXPANSIONSN: 86423-UP | 14 | Request quote | |||
| 7 | PIN,MAIN CAPSN: 86423-UP | 6 | Request quote | |||
| 8 | PLUG,DOWELSN: 86423-UP | 2 | Request quote | |||
| 9 | PIN,DOWELSN: 86423-UP | 2 | Request quote | |||
| 10 | PIN,SPRINGSN: 86423-UP | 1 | Request quote | |||
| 11 | PIN,DOWELSN: 86423-UP | 4 | View product ↗ | |||
| 12 | PLUGSN: 86423-UP | 1 | View product ↗ | |||
| 13 | GASKET (K2)SN: 86423-UP | 1 | View product ↗ | |||
| 14 | PLUGSN: 86423-UP | 2 | Request quote | |||
| 15 | PLUGSN: 86423-UP | 3 | View product ↗ | |||
| 16 | PIN,SPRINGSN: 86423-UP | 2 | Request quote | |||
| 17 | LINER,CYLINDERSN: 86423-UP | 6 | View product ↗ | |||
| 18 | SEAL,CREVICE (K2)SN: 86423-UP | 6 | View product ↗ | |||
| 19 | O-RING,UPPER (K2)SN: 86423-UP | 6 | View product ↗ | |||
| 20 | O-RING,LOWER (K2)SN: 86423-UP | 6 | View product ↗ | |||
| 21 | OIL FILLER ASS'YSN: 86423-UP | 1 | Request quote | |||
| 21 | FILLERSN: 86423-UP | 1 | Request quote | |||
| 22 | CAP ASS'YSN: 86423-UP | 1 | View product ↗ | |||
| 22 | GASKETSN: 86423-UP | 1 | Request quote | |||
| 23 | CHAINSN: 86423-UP | 1 | Request quote | |||
| 24 | GASKET (K2)SN: 86423-UP | 1 | View product ↗ | |||
| 25 | BOLTSN: 106090-UP | 3 | View product ↗ | |||
| 25 | BOLTSN: 86423-106089 | The part specified in the line above can be used instead of this part | 3 | View product ↗ | |||
| 26 | BOLTSN: 106090-UP | 1 | Request quote | |||
| 26 | BOLTSN: 86423-106089 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 27 | WASHER,SPRINGSN: 86423-106089 | 4 | View product ↗ | |||
| 28 | WASHERSN: 86423-106089 | 4 | View product ↗ | |||
| 29 | SPACERSN: 86423-UP | 1 | Request quote | |||
| 30 | GUIDE,OIL GAUGESN: 86423-UP | 1 | Request quote | |||
| 31 | GAUGE,OILSN: 86423-UP | 1 | Request quote | |||
| 32 | CLIPSN: 92028-UP | 1 | Request quote | |||
| 33 | BOSSSN: 90208-UP | 1 | Request quote | |||
| 34 | BOLTSN: 106090-UP | 1 | Request quote | |||
| 34 | BOLTSN: 92028-106089 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 35 | PLATE, NAME,(ENGLISH) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(SPANISH) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(GERMAN) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(INDONESIAN) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(FRENCH) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(ITALIAN) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(CHINESE) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 35 | PLATE, NAME,(ARABIC) (LIMITED SUPPLY)SN: 86423-UP | 1 | Request quote | |||
| 36 | SCREWSN: 86423-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: BLOCK,CYLINDER | QTY: 1 | OPTIONS: SN: 86423-UP
Using Komatsu WA250-1 Wheel Loader Cylinder Block Parts
Use the Komatsu WA250-1 Wheel Loader Cylinder Block Parts listing to identify aftermarket replacement parts within the engine cylinder block section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 48 listed part occurrences, including cylinder block ass'y (reference 6136-22-1021), bushing,camshaft (reference 6136-21-1410) and cap,main metal, no.1,2,3,4,5,6 (reference 6136-29-1210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D105-1TT (engine serial 86423-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
