Komatsu WA250-1 Wheel Loader Oil Pan (Without Oil Level Sensor) Parts
Komatsu WA250-1 oil pan (without oil level sensor) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D105-1TT S/N 86423-UP / Engine Cylinder Block / Oil Pan (Without Oil Level Sensor).
Checking current purchase options...

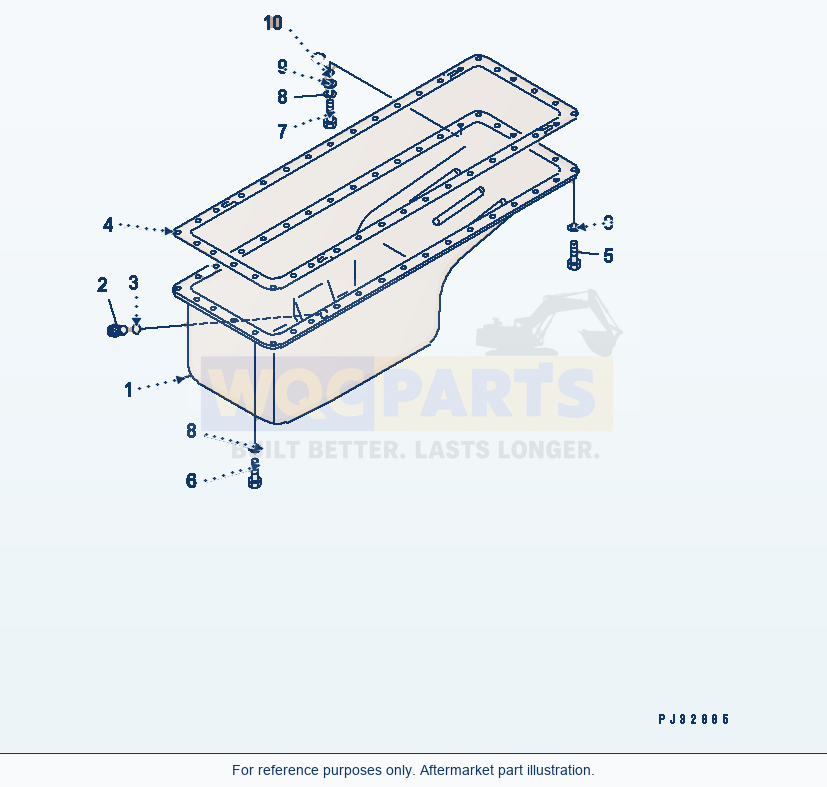

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PAN,OILSN: 86423-UP | 1 | Request quote | |||
| 2 | GASKET (K2)SN: 86423-UP | 1 | View product ↗ | |||
| 3 | BOLTSN: 106090-UP | 29 | View product ↗ | |||
| 3 | BOLTSN: 86423-106089 | The part specified in the line above can be used instead of this part | 29 | View product ↗ | |||
| 4 | BOLTSN: 106090-UP | 8 | View product ↗ | |||
| 4 | BOLTSN: 86423-106089 | The part specified in the line above can be used instead of this part | 8 | Request quote | |||
| 5 | BOLTSN: 106090-UP | 1 | View product ↗ | |||
| 5 | BOLTSN: 86423-106089 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 6 | WASHER,SPRINGSN: 86423-106089 | 38 | View product ↗ | |||
| 7 | WASHERSN: 86423-UP | 1 | Request quote | |||
| 8 | CLIPSN: 86423-UP | 1 | Request quote | |||
| 9 | TUBESN: 101785-UP | 1 | Request quote | |||
| 10 | JOINTSN: 101785-UP | 1 | Request quote | |||
| 11 | GASKET (K2)SN: 103684-UP | 1 | View product ↗ | |||
| 11 | GASKETSN: 101785-103683 | 1 | View product ↗ | |||
| 12 | O-RING (K2)SN: 103684-UP | 1 | View product ↗ | |||
| 12 | O-RINGSN: 101785-103683 | 1 | View product ↗ | |||
| 13 | TUBE,DRAINSN: 101785-UP | 1 | Request quote | |||
| 14 | PLUGSN: 101785-UP | 1 | Request quote | |||
| 15 | BOLTSN: 101785-UP | 2 | View product ↗ | |||
| 16 | HOSESN: 101785-UP | 1 | Request quote | |||
| 17 | CLAMPSN: 101785-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-1 Wheel Loader Oil Pan (Without Oil Level Sensor) Parts
Use the Komatsu WA250-1 Wheel Loader Oil Pan (Without Oil Level Sensor) Parts listing to identify aftermarket replacement parts within the engine cylinder block section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including pan,oil (reference 6136-21-5260), gasket (k2) (reference 6136-21-5810) and clip (reference 6130-22-5290). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D105-1TT (engine serial 86423-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
For cylinder-block and related engine components, compare the listed engine serial break and every row-specific option. Use the individual part reference rather than the diagram appearance to distinguish revisions.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
