Komatsu WA250-1 Wheel Loader Air Cleaner And Mounting Parts

Using Komatsu WA250-1 Wheel Loader Air Cleaner And Mounting Parts

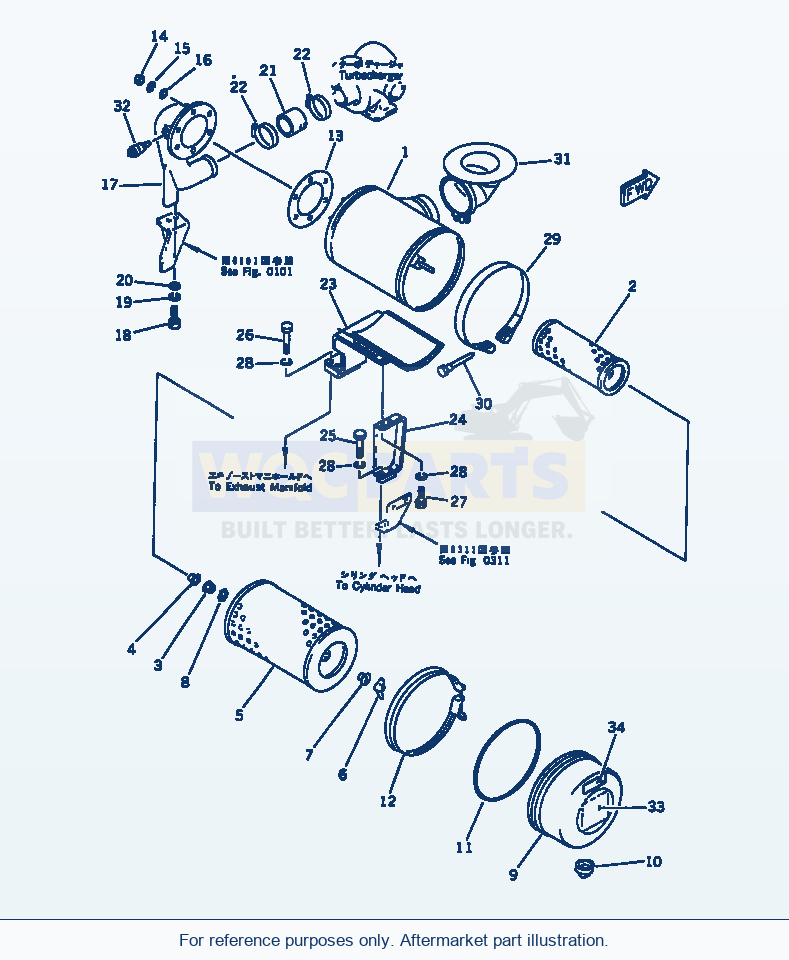

Use the Komatsu WA250-1 Wheel Loader Air Cleaner And Mounting Parts listing to identify aftermarket replacement parts within the engine cylinder head section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.

The parts table contains 60 listed part occurrences, including air cleaner ass'y (reference 600-181-1300), air cleaner ass'y,(trimming spec.) (reference 600-181-1500) and body (reference 600-181-1350). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.

The source engine application is S6D105-1TT (engine serial 86423-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.

For cylinder-head and related engine parts, follow the applicability attached to the selected assembly. Gaskets, fasteners and other components must be checked by their listed references rather than assumed to interchange between engine versions.

Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
