Komatsu WA250-1 Instrument Panel (For Cluster Gauge) Parts
Komatsu WA250-1 instrument panel (for cluster gauge) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Instrument Panel (For Cluster Gauge).
Checking current purchase options...

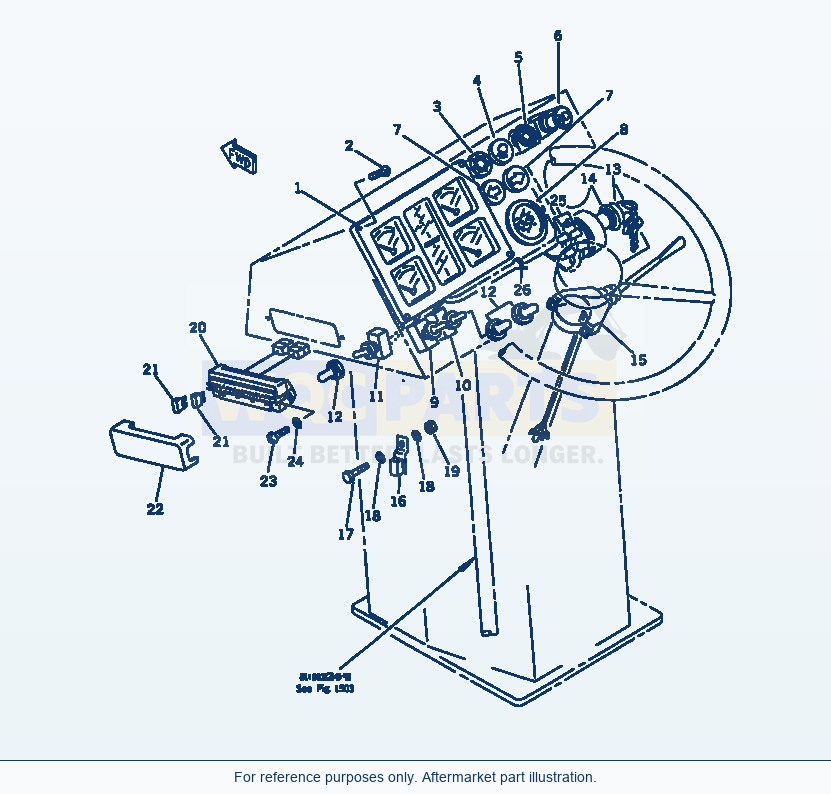

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 43 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GAUGE CLUSTERSN: 10188-UP | 1 | Request quote | |||
| 1 | GAUGE CLUSTERSN: 10001-10187 | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 1 | GAUGE,WATER TEMPERATURESN: 10001-UP | 1 | Request quote | |||
| 1 | GAUGE,OIL TEMPERATURESN: 10001-UP | 1 | Request quote | |||
| 1 | GAUGE,FUEL LEVELSN: 10001-UP | 1 | Request quote | |||
| 1 | GAUGE,VOLTSN: 10001-UP | 1 | Request quote | |||
| 1 | PLATE, CAUTIONSN: 10001-UP | 1 | Request quote | |||
| 1 | BULB, 3WSN: 10001-UP | 8 | Request quote | |||
| 1 | SOCKETSN: 10001-UP | 8 | Request quote | |||
| 1 | PANELSN: 10001-UP | 1 | Request quote | |||
| 1 | GASKET,PANELSN: 10001-UP | 1 | Request quote | |||
| 2 | SCREWSN: 10001-UP | 4 | Request quote | |||
| 3 | LAMP,TRANSMISSION CUT OFFSN: 10001-UP | 1 | Request quote | |||
| 3 | BULB, 3WSN: 10001-UP | 1 | Request quote | |||
| 3 | CONNECTORSN: 10001-UP | 1 | Request quote | |||
| 4 | LAMP,WORKSN: 10001-UP | 1 | Request quote | |||
| 4 | BULB, 3WSN: 10001-UP | 1 | Request quote | |||
| 4 | CONNECTORSN: 10001-UP | 1 | Request quote | |||
| 5 | SIGNAL,HEATERSN: 10001-UP | 1 | Request quote | |||
| 6 | SWITCH,LAMPSN: 10001-UP | 1 | Request quote | |||
| 7 | LAMP,INDICATORSN: 10001-UP | 1 | Request quote | |||
| 8 | METER,SERVICESN: 10001-UP | 1 | Request quote | |||
| 8 | BULB, 1.4WSN: 10001-UP | 1 | Request quote | |||
| 9 | SWITCH,TRANSMISSION CUT OFFSN: 10001-UP | 1 | Request quote | |||
| 10 | SWITCH,WORK LAMPSN: 10001-UP | 1 | Request quote | |||
| 11 | SWITCH,PARKINGSN: 10001-UP | 1 | Request quote | |||
| 12 | CAPSN: 10001-UP | 3 | View product ↗ | |||
| 13 | SWITCH,STARTINGSN: 10001-UP | 1 | View product ↗ | |||
| 14 | SHIM, 1.0MMSN: 10001-UP | 1 | Request quote | |||
| 15 | SWITCH,TURN SIGNALSN: 10001-UP | 1 | Request quote | |||
| 16 | FLASHERSN: 10001-UP | 1 | Request quote | |||
| 17 | BOLTSN: 10001-UP | 1 | View product ↗ | |||
| 18 | WASHERSN: 10001-UP | 2 | View product ↗ | |||
| 19 | NUTSN: 10001-UP | 1 | Request quote | |||
| 20 | BOXSN: 10001-UP | 1 | Request quote | |||
| 21 | FUSE, 10ASN: 10001-UP | 5 | View product ↗ | |||
| 21 | FUSE, 20ASN: 10001-UP | 3 | View product ↗ | |||
| 22 | COVERSN: 10001-UP | 1 | Request quote | |||
| 23 | SCREWSN: 10001-UP | 2 | Request quote | |||
| 24 | WASHERSN: 10001-UP | 2 | View product ↗ | |||
| 25 | CABLESN: 10001-UP | 4 | Request quote | |||
| 26 | BANDSN: .-UP | 1 | Request quote | |||
| 26 | BANDSN: 10001-. | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-1 Instrument Panel (For Cluster Gauge) Parts
Use the Komatsu WA250-1 Instrument Panel (For Cluster Gauge) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 43 listed part occurrences, including gauge cluster (reference 417-06-15112), gauge cluster (reference 417-06-15111) and gauge,water temperature (reference 417-06-15330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
