Komatsu WA250-1 Instrument Panel (For Monitor Panel) Parts
Komatsu WA250-1 instrument panel (for monitor panel) parts for machine serial 10001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts And Electrical System / Instrument Panel (For Monitor Panel).
Checking current purchase options...

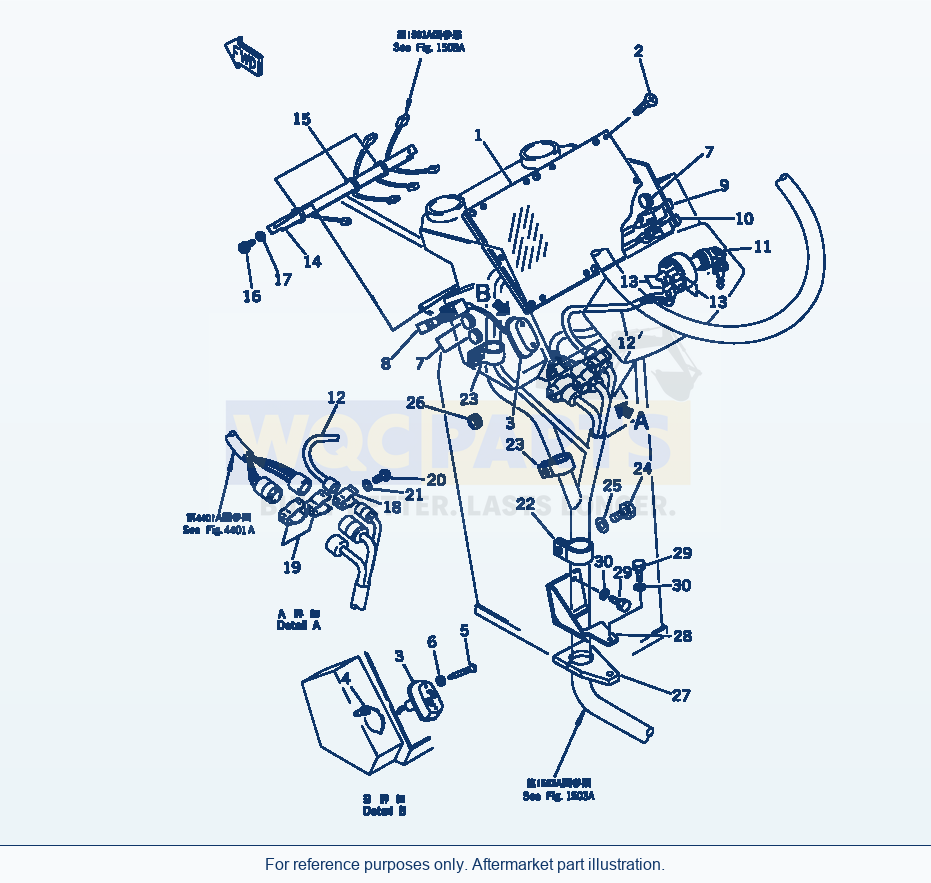

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 33 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | MONITOR PANEL ASS'Y,(WITHOUT EMERGENCY STEERING)SN: 10001-UP | 1 | Request quote | |||
| 2 | SCREWSN: 10001-UP | 6 | Request quote | |||
| 3 | LAMP ASS'Y,CAUTIONSN: 10001-UP | 1 | Request quote | |||
| 3 | BULB, 12WSN: 10001-UP | 1 | View product ↗ | |||
| 4 | GROMMETSN: 10001-UP | 2 | Request quote | |||
| 5 | SCREWSN: 10001-UP | 2 | Request quote | |||
| 6 | WASHERSN: 10001-UP | 2 | Request quote | |||
| 7 | CAPSN: 10001-UP | 3 | Request quote | |||
| 8 | SWITCH,TRANSMISSION CUT OFFSN: 10001-UP | 1 | Request quote | |||
| 9 | SWITCH,WORK LAMPSN: 10001-UP | 1 | Request quote | |||
| 10 | SWITCH,GLOWSN: 10001-UP | 1 | Request quote | |||
| 11 | SWITCH,STARTINGSN: 10001-UP | 1 | View product ↗ | |||
| 12 | WIRE ASS'YSN: 10001-UP | 1 | Request quote | |||
| 13 | CAPSN: 10001-UP | 4 | View product ↗ | |||
| 14 | BRACKETSN: 10001-UP | 1 | Request quote | |||
| 15 | BANDSN: .-UP | 3 | Request quote | |||
| 15 | BANDSN: 10001-. | 3 | View product ↗ | |||
| 16 | BOLTSN: 10001-UP | 2 | View product ↗ | |||
| 17 | WASHERSN: 10001-UP | 2 | View product ↗ | |||
| 18 | CLIPSN: 10001-UP | 1 | Request quote | |||
| 19 | CLIPSN: 10001-UP | 2 | Request quote | |||
| 20 | SCREWSN: 10001-UP | 3 | Request quote | |||
| 21 | WASHERSN: 10001-UP | 3 | View product ↗ | |||
| 22 | CLIPSN: 10001-UP | 1 | Request quote | |||
| 23 | CLIPSN: 10001-UP | 2 | Request quote | |||
| 24 | BOLTSN: 10001-UP | 3 | Request quote | |||
| 25 | WASHERSN: 10001-UP | 3 | View product ↗ | |||
| 26 | GROMMETSN: 10001-UP | 1 | View product ↗ | |||
| 27 | SHEETSN: 10001-UP | 1 | Request quote | |||
| 28 | BRACKETSN: 12119-UP | 1 | Request quote | |||
| 28 | BRACKETSN: 10001-12118 | The part and the part specified in the line immediately above are interchangeable. | 1 | Request quote | |||
| 29 | BOLTSN: 10001-UP | 2 | View product ↗ | |||
| 30 | WASHERSN: 10001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-1 Instrument Panel (For Monitor Panel) Parts
Use the Komatsu WA250-1 Instrument Panel (For Monitor Panel) Parts listing to identify aftermarket replacement parts within the engine related parts and electrical system section. This wheel loader application is listed for machine serial 10001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 33 listed part occurrences, including monitor panel ass'y,(without emergency steering) (reference 7831-51-2000), lamp ass'y,caution (reference 23S-06-13270) and bulb, 12w (reference 08110-12410). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
