Komatsu WA250-1LC Wheel Loader Radiator Piping Parts
Komatsu WA250-1LC radiator piping parts for machine serial A65001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine Related Parts & Electrical System / Radiator Piping.
Checking current purchase options...

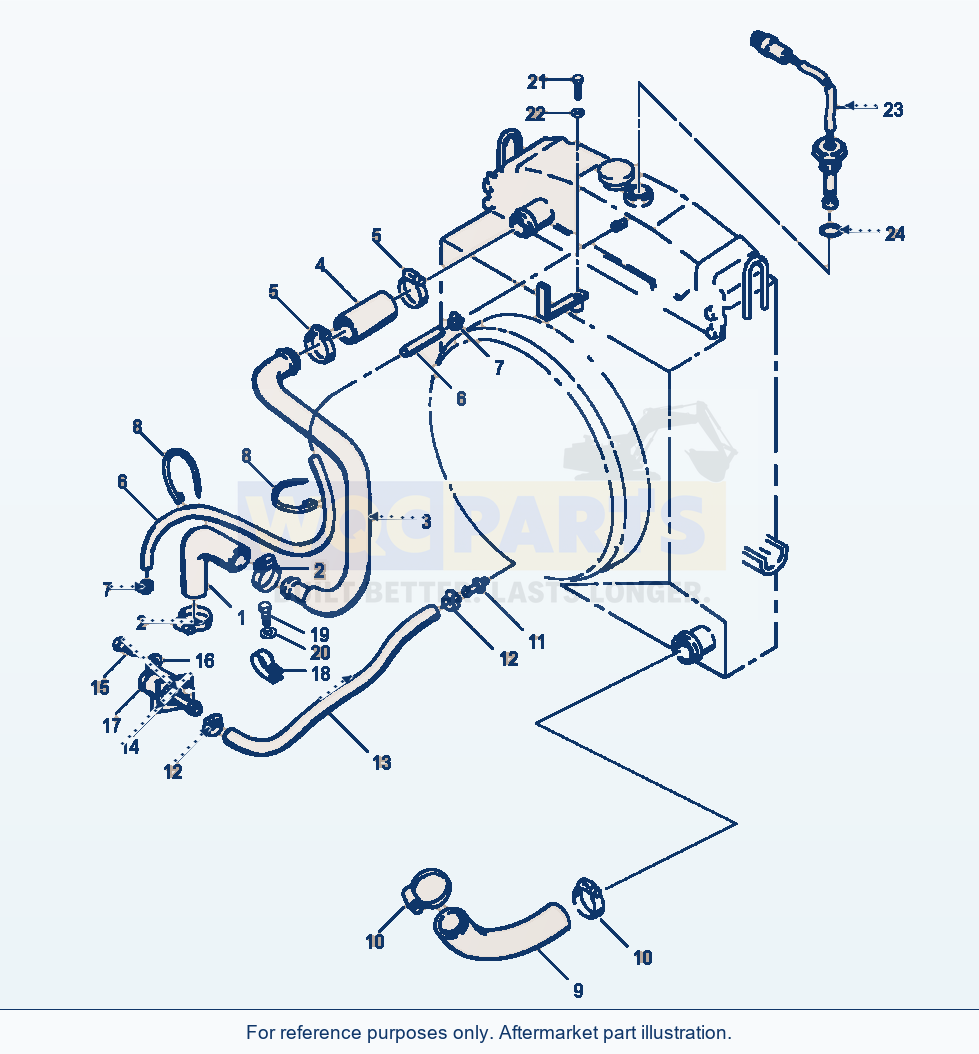

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 26 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HOSE ELBOW | 1 | Request quote | |||
| 2 | CLAMP | 2 | View product ↗ | |||
| 3 | TUBE | 1 | Request quote | |||
| 4 | HOSE | 1 | Request quote | |||
| 5 | CLAMP | 2 | View product ↗ | |||
| 6 | HOSE | 1 | Request quote | |||
| 7 | CLAMP | 2 | View product ↗ | |||
| 8 | STRAP, TIE | 2 | Request quote | |||
| 9 | HOSE | 1 | Request quote | |||
| 10 | CLAMP | 2 | View product ↗ | |||
| 11 | NIPPLE | 1 | Request quote | |||
| 12 | CLAMP | 2 | View product ↗ | |||
| 13 | HOSE | 1 | Request quote | |||
| 14 | TUBE, RADIATOR DRAIN | 1 | Request quote | |||
| 15 | BOLT | 2 | Request quote | |||
| 16 | WASHER | 2 | View product ↗ | |||
| 17 | PLUG, RADIATOR DRAIN | 1 | Request quote | |||
| 18 | CLAMP | 1 | Request quote | |||
| 19 | BOLT | 1 | Request quote | |||
| 20 | WASHER | 1 | View product ↗ | |||
| 21 | BOLT | 1 | Request quote | |||
| 22 | WASHER | 1 | View product ↗ | |||
| 23 | SENSOR, COOLANT LEVEL | 1 | Request quote | |||
| 24 | O-RING | 1 | View product ↗ | |||
| N/I | PLUG (HEATER NOT INSTALLED)F1 | 1 | Request quote | |||
| N/I | PLUG (HEATER NOT INSTALLED)F1 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
LINE: ENGINE BLOCK TO RADIATOR (UPPER)
LINE: RADIATOR TO ENGINE BLOCK (LOWER)
LINE: RADIATOR DRAIN
MISCELLANEOUS
F1 - USED ON MACHINES NOT EQUIPPED WITH HEATERS.
Using Komatsu WA250-1LC Wheel Loader Radiator Piping Parts
Use the Komatsu WA250-1LC Wheel Loader Radiator Piping Parts listing to identify aftermarket replacement parts within the engine related parts & electrical system section. This wheel loader application is listed for machine serial A65001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 26 listed part occurrences, including hose elbow (reference 418-03-10170), clamp (reference 07281-00538) and tube (reference 418-03-10160). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
