Komatsu WA250-3-SN Air Conditioner (With 2-Persons Cab) Parts
Komatsu WA250-3-SN air conditioner (with 2-persons cab) parts for machine serial S/N 65001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Air Conditioner (With 2-Persons Cab).
Checking current purchase options...

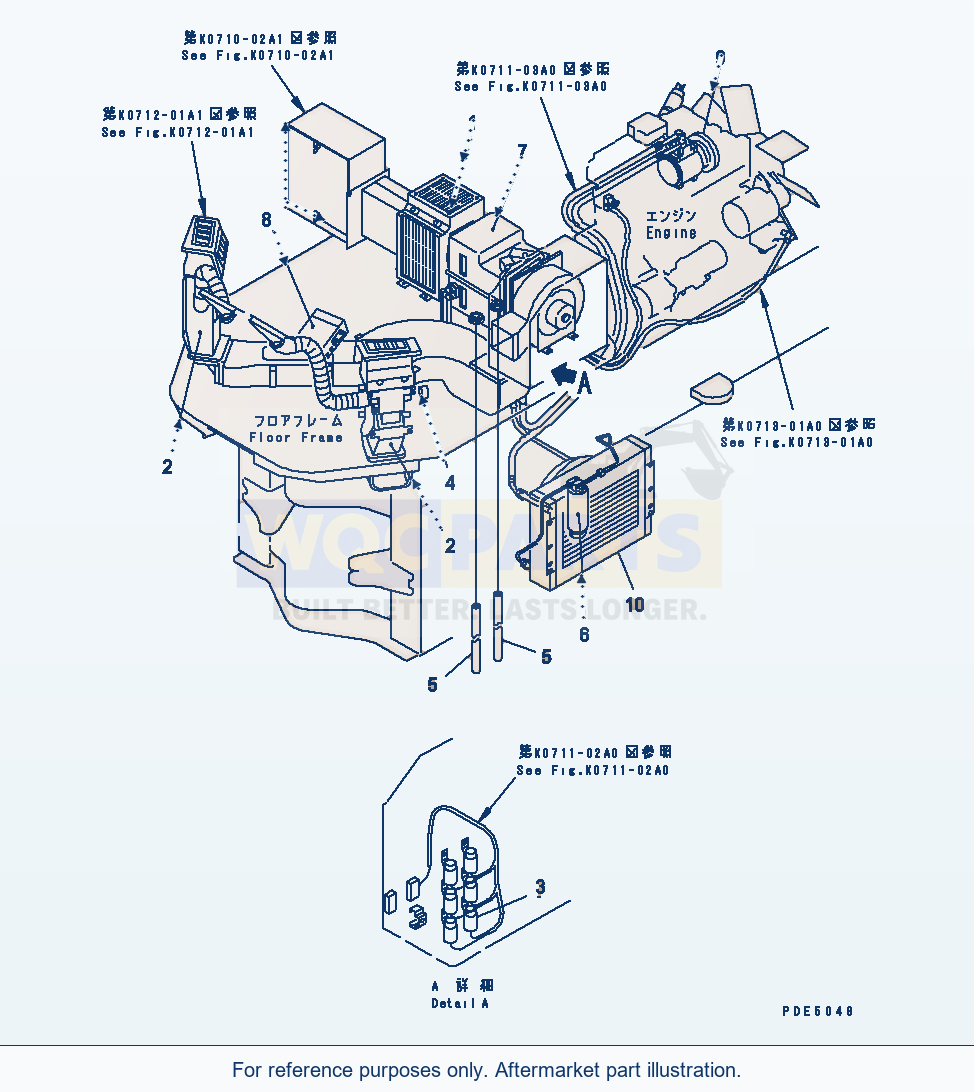

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | AIR CONDITIONER KITSN: 65001-UP | 1 | Request quote | |||
| 1 | AIR CONDITIONER KITSN: 65001-63236 | 1 | Request quote | |||
| 1 | SUB ASS'YSN: 65001-UP | 1 | Request quote | |||
| 1 | SUB ASS'Y,AIR CONDITIONERSN: 65001-63236 | 1 | Request quote | |||
| 1 | DAMPER ASS'YSN: 65001-UP | 1 | Request quote | |||
| 2 | DUCT ASS'Y,AIRSN: 65001-UP | 2 | Request quote | |||
| 2 | DUCT ASS'Y,AIRSN: 65001-63236 | 2 | Request quote | |||
| 3 | RELAYSN: 65001-UP | 6 | Request quote | |||
| 4 | CAPSN: 65001-UP | 2 | Request quote | |||
| 5 | HOSESN: 65001-UP | 2 | Request quote | |||
| 6 | TANKSN: 65001-UP | 1 | View product ↗ | |||
| 7 | AIR CONDITIONER U.SN: 65001-UP | 1 | Request quote | |||
| 8 | CONTROLLERSN: 65001-UP | 1 | Request quote | |||
| 9 | AIR COMPRESSOR A.SN: 65001-UP | 1 | View product ↗ | |||
| 9 | AIR COMPRESSOR A.SN: 65001-63236 | 1 | View product ↗ | |||
| 10 | CONDENSER ASS'YSN: 65001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-3-SN Air Conditioner (With 2-Persons Cab) Parts
Use the Komatsu WA250-3-SN Air Conditioner (With 2-Persons Cab) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial S/N 65001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including air conditioner kit (reference 418-07-21102), air conditioner kit (reference 418-07-21101) and sub ass'y (reference 418-07-21201). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
