Komatsu WA250-3 Wheel Loader Oil Pan And Suction Tube Parts
Komatsu WA250-3 oil pan and suction tube parts for machine serial 50001-52999 (FOR JAPAN). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D95L-1PP-25 S/N 106426-UP / Engine / Oil Pan And Suction Tube.
Checking current purchase options...

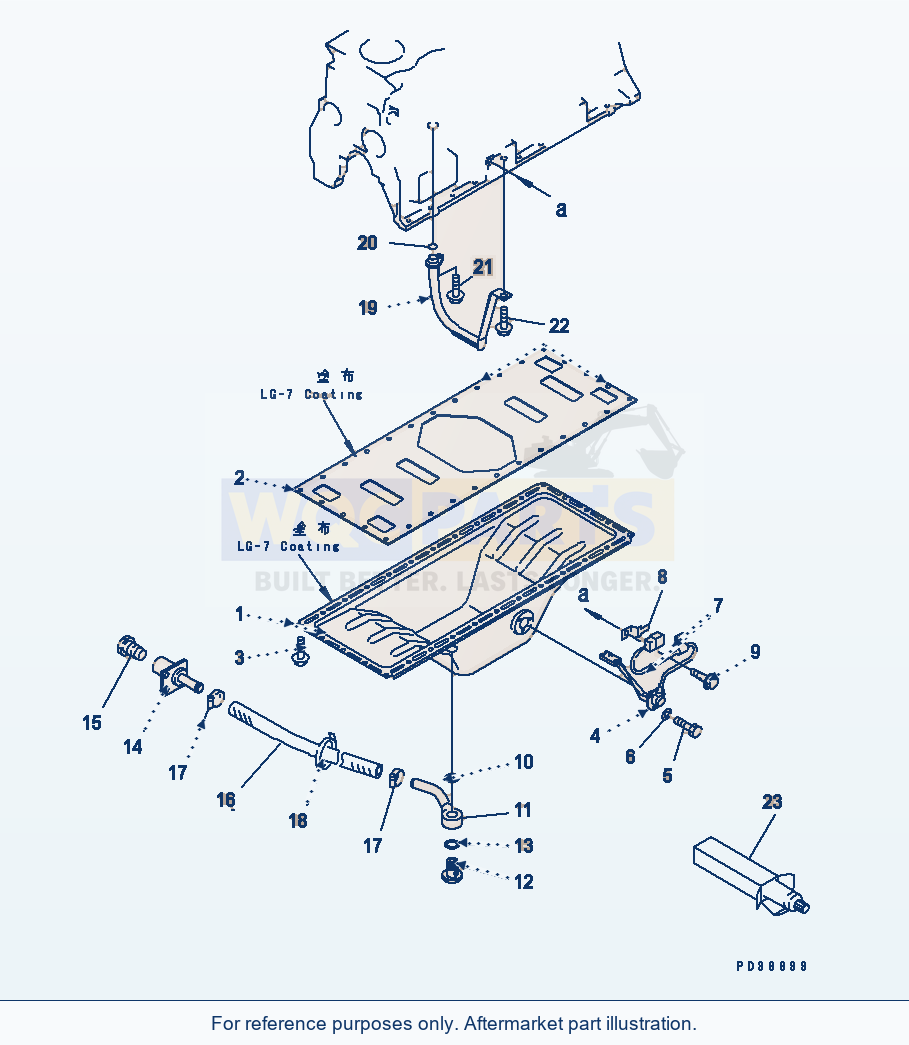

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 25 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PAN,OILSN: 111864-UP | 1 | Request quote | |||
| 2 | PLATESN: 111864-UP | 1 | Request quote | |||
| 3 | BOLTSN: 111864-UP | 30 | Request quote | |||
| 4 | SENSOR,OIL LEVERSN: 111864-UP | 1 | Request quote | |||
| 4 | O-RINGSN: 111864-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | BOLTSN: 111864-UP | 3 | View product ↗ | |||
| 6 | WASHERSN: 111864-UP | 3 | View product ↗ | |||
| 7 | CLIPSN: 111864-UP | 1 | View product ↗ | |||
| 8 | CLIPSN: 111864-UP | 1 | Request quote | |||
| 9 | BOLTSN: 111864-UP | 1 | Request quote | |||
| 10 | GASKET (K2)SN: 111864-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 11 | TUBESN: 111864-UP | 1 | Request quote | |||
| 12 | BOLT,JOINTSN: 111864-UP | 1 | Request quote | |||
| 13 | GASKET (K2)SN: 111864-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 14 | TUBESN: 111864-UP | 1 | Request quote | |||
| 15 | PLUGSN: 111864-UP | 1 | Request quote | |||
| 16 | HOSESN: 111864-UP | 1 | Request quote | |||
| 17 | CLAMPSN: 111864-UP | 2 | Request quote | |||
| 18 | BANDSN: 111864-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 19 | TUBE,SUCTIONSN: 111864-UP | 1 | Request quote | |||
| 20 | O-RING (K2)SN: 120620-UP | 1 | View product ↗ | |||
| 20 | O-RING (K2)SN: 111864-120619 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 21 | BOLTSN: 111864-UP | 1 | Request quote | |||
| 22 | BOLTSN: 111864-UP | 1 | Request quote | |||
| 23 | LIQUID GASKET,LG-7, 150GSN: 111864-UP, KIT-FLAG: S | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-3 Wheel Loader Oil Pan And Suction Tube Parts
Use the Komatsu WA250-3 Wheel Loader Oil Pan And Suction Tube Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 50001-52999 (FOR JAPAN); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 25 listed part occurrences, including pan,oil (reference 6207-21-5120), plate (reference 6206-21-5150) and sensor,oil lever (reference 7861-92-4210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D95L-1PP-25 (engine serial 106426-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
