Komatsu WA250-3 Steering Demand Valve (Orbitrol Valve)(#66001-) Parts
Komatsu WA250-3 steering demand valve (orbitrol valve)(#66001-) parts for machine serial 65001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Hydraulic System / Steering Demand Valve (Orbitrol Valve)(#66001-).
Checking current purchase options...

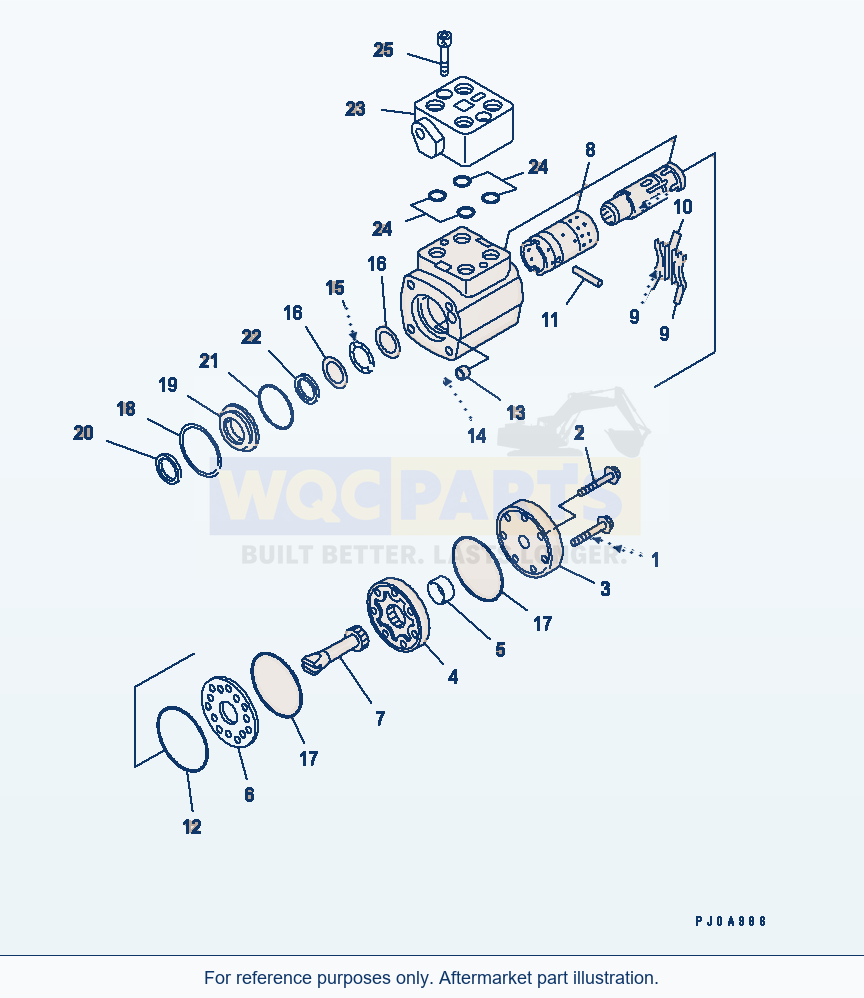

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 29 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | VALVE ASS'YSN: 66001-UP | 1 | Request quote | |||
| 1 | ORBITROL ASS'YSN: 66001-UP | 1 | Request quote | |||
| 1 | SCREWSN: 65001-UP | 6 | Request quote | |||
| 2 | SCREWSN: 66001-UP | 1 | Request quote | |||
| 3 | CAP,ENDSN: 65001-UP | 1 | Request quote | |||
| 4 | GEROTORSN: 66001-UP | 1 | Request quote | |||
| 5 | SPACERSN: 65001-UP | 1 | Request quote | |||
| 6 | PLATE,SPACERSN: 65001-UP | 1 | Request quote | |||
| 7 | DRIVESN: 65001-UP | 1 | Request quote | |||
| 8 | CONTROL ASS'YSN: 66001-UP | 1 | Request quote | |||
| 9 | SPRING,WAVESN: 65001-UP | 4 | Request quote | |||
| 10 | SPRING,FLATSN: 65001-UP | 2 | Request quote | |||
| 11 | PINSN: 65001-UP | 1 | Request quote | |||
| 12 | O-RING (KIT)SN: 66001-UP | 1 | Request quote | |||
| 13 | ADAPTERSN: 66001-UP | 1 | Request quote | |||
| 14 | BALLSN: 66001-UP | 1 | Request quote | |||
| 15 | BEARING ASS'YSN: 65001-UP | 1 | Request quote | |||
| 15 | NEEDLESN: 65001-UP | 1 | Request quote | |||
| 16 | RACE,BEARINGSN: 65001-UP | 2 | Request quote | |||
| 17 | O-RING (KIT)SN: 65001-UP | 2 | Request quote | |||
| 18 | RINGSN: 65001-UP | 1 | Request quote | |||
| 19 | BUSHINGSN: 65001-UP | 1 | Request quote | |||
| 20 | SEAL,DUST (KIT)SN: 65001-UP | 1 | Request quote | |||
| 21 | O-RING (KIT)SN: 65001-UP | 1 | Request quote | |||
| 22 | SEAL (KIT)SN: 66001-UP | 1 | Request quote | |||
| 23 | VALVE ASS'Y,OVER LOADSN: 65001-UP | 1 | Request quote | |||
| 24 | O-RINGSN: 65001-UP | 4 | Request quote | |||
| 25 | BOLTSN: 65001-UP | 2 | Request quote | |||
| K | SERVICE KITSN: 66001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
