Komatsu WA250-3 Wheel Loader Transmission (2Nd Clutch)(#50001-) Parts
Komatsu WA250-3 transmission (2nd clutch)(#50001-) parts for machine serial 50001-52999 (FOR JAPAN). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transmission (2Nd Clutch)(#50001-).
Checking current purchase options...

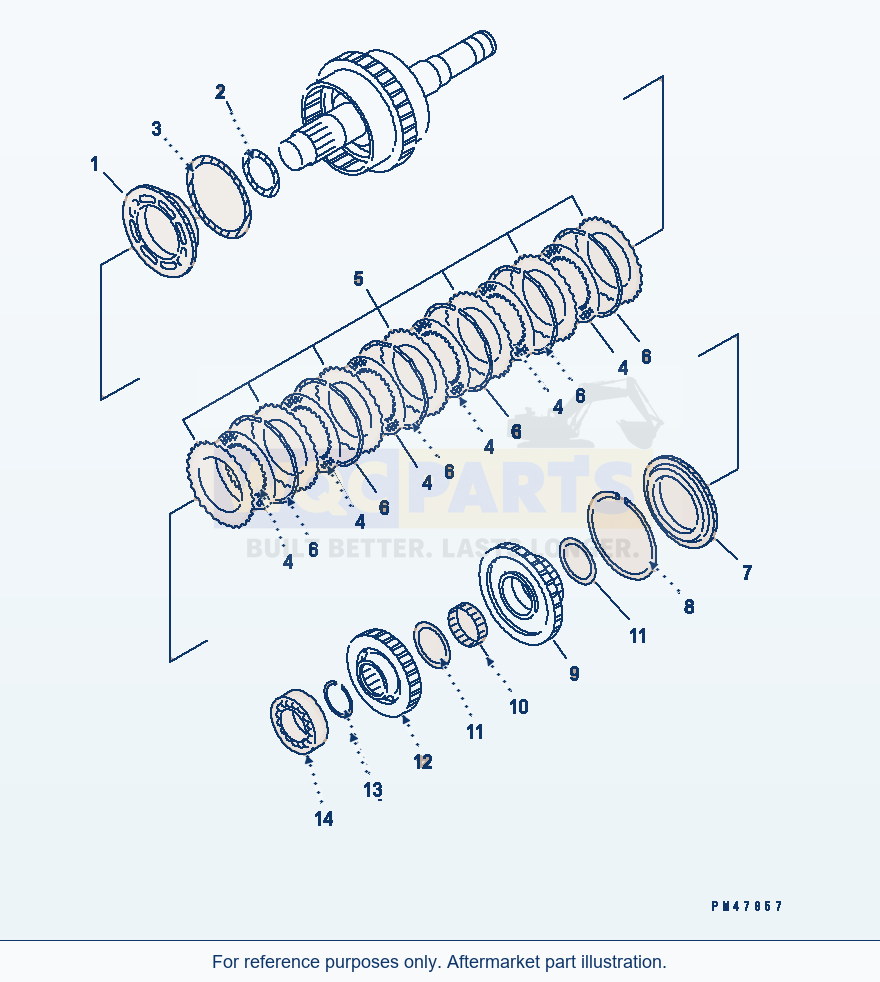

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | TORQFLOW ASS'YSN: 50001-UP | 1 | Request quote | |||
| 2 | CLUTCH ASS'Y,2ND AND 4THSN: 50001-UP | 1 | Request quote | |||
| 1 | PISTON,2NDSN: 50001-UP | 1 | Request quote | |||
| 2 | RING,SEALSN: 50001-UP | 1 | View product ↗ | |||
| 3 | RING,SEALSN: 50001-UP | 1 | View product ↗ | |||
| 4 | DISCSN: 50001-UP | 6 | View product ↗ | |||
| 5 | PLATE,SEPARATESN: 50001-UP | 7 | View product ↗ | |||
| 6 | SPRING,WAVESN: 50001-UP | 6 | View product ↗ | |||
| 7 | PLATE,ENDSN: 50001-UP | 1 | Request quote | |||
| 8 | RING,SNAPSN: 50001-UP | 1 | Request quote | |||
| 9 | GEAR, 43 TEETH,2NDSN: 50001-UP | 1 | Request quote | |||
| 10 | BEARING,NEEDLESN: 50001-UP | 1 | View product ↗ | |||
| 11 | WASHER,THRUSTSN: 50001-UP | 2 | View product ↗ | |||
| 12 | GEAR, 26 TEETH,OUTPUTSN: 50001-UP | 1 | Request quote | |||
| 13 | RING,SNAPSN: 50001-UP | 1 | Request quote | |||
| 14 | BEARINGSN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2225 AND 2226.
Using Komatsu WA250-3 Wheel Loader Transmission (2Nd Clutch)(#50001-) Parts
Use the Komatsu WA250-3 Wheel Loader Transmission (2Nd Clutch)(#50001-) Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 50001-52999 (FOR JAPAN); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including torqflow ass'y (reference 714-13-10000), clutch ass'y,2nd and 4th (reference 714-13-12030) and piston,2nd (reference 714-13-12660). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
