Komatsu WA250-3L Wheel Loader Engine Assembly Parts
Komatsu WA250-3L engine assembly parts for machine serial A70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Engine Assembly.
Checking current purchase options...

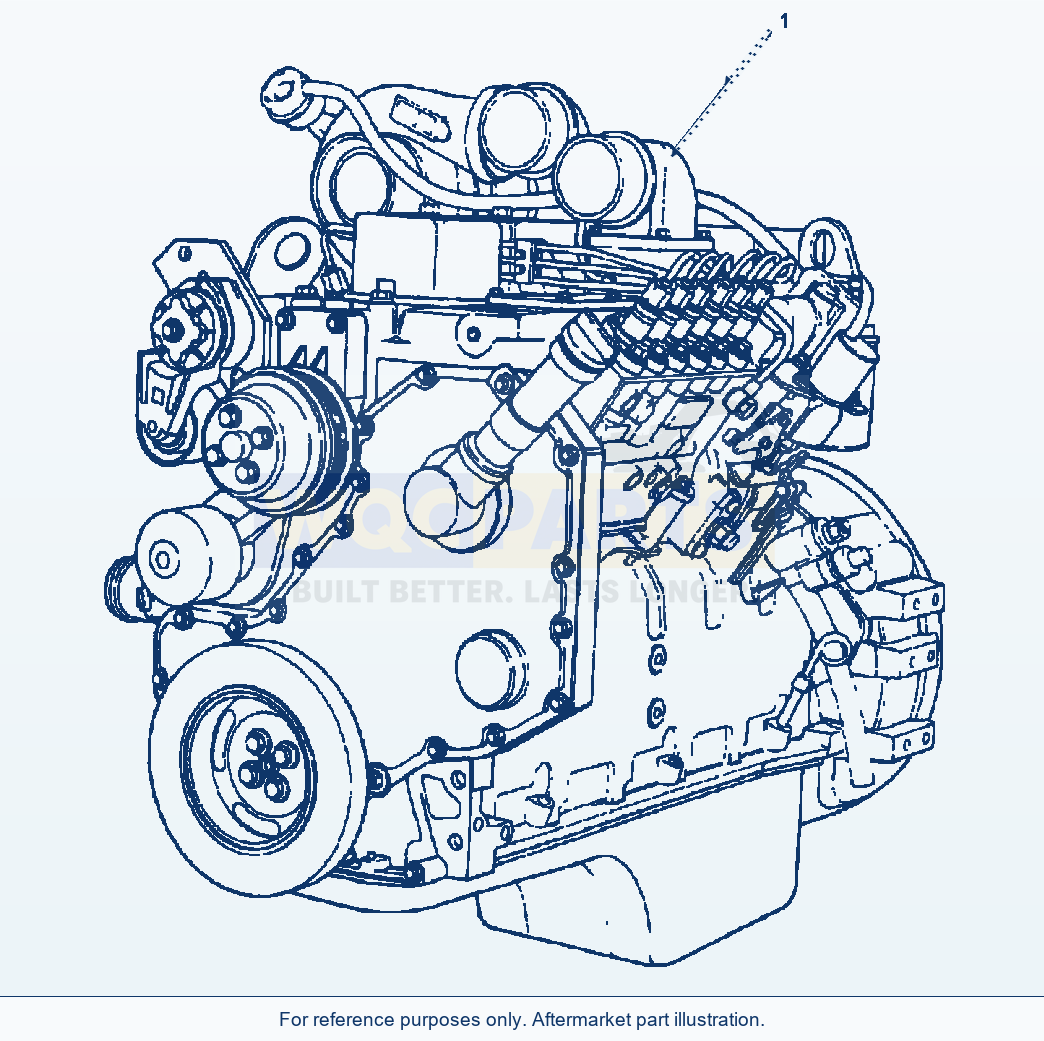

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 5 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ENGINE, PRODUCTIONF1,F4 | 1 | Request quote | |||
| 1 | ENGINE, SERVICEF2,F3,F4 | 1 | Request quote | |||
| 1 | ENGINE, SERVICEF3,F4 | 1 | Request quote | |||
| 1 | ENGINE, SERVICEF3,F4 | 1 | Request quote | |||
| 1 | ENGINE, SERVICEF3 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
OR
OR
OR
OR
F1 - THIS IS A PRODUCTION ONLY PART NUMBER AND IS FOR REFERENCE ONLY.
F2 - WHEN REPLACING P/N 418-01-A1600 FOR THE FIRST TIME, ALSO ORDER 1 EA. ADAPTER P/N 6732-81-3190 AND O-RING SEAL P/N 6215-81-9710.
F3 - THIS SERVICE ENGINE DOES NOT INCLUDE AN EXHAUST CONNECTION, COOLANTTEMPERATURE SENSOR, OIL LEVEL SENSOR, OIL PRESSURE SWITCH, ALTERNATOR, AND STARTER.
F4 - WHEN REPLACING THIS ENGINE PURCHASE ENGINE P/N 418-01-A1603.
Using Komatsu WA250-3L Wheel Loader Engine Assembly Parts
Use the Komatsu WA250-3L Wheel Loader Engine Assembly Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 5 listed part occurrences, including engine, production (reference 418-01-A1500), engine, service (reference 418-01-A1600) and engine, service (reference 418-01-A1601). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
