Catalog configuration: Work Equipment / Bucket 2.6 Cu Yd.
Checking current purchase options...

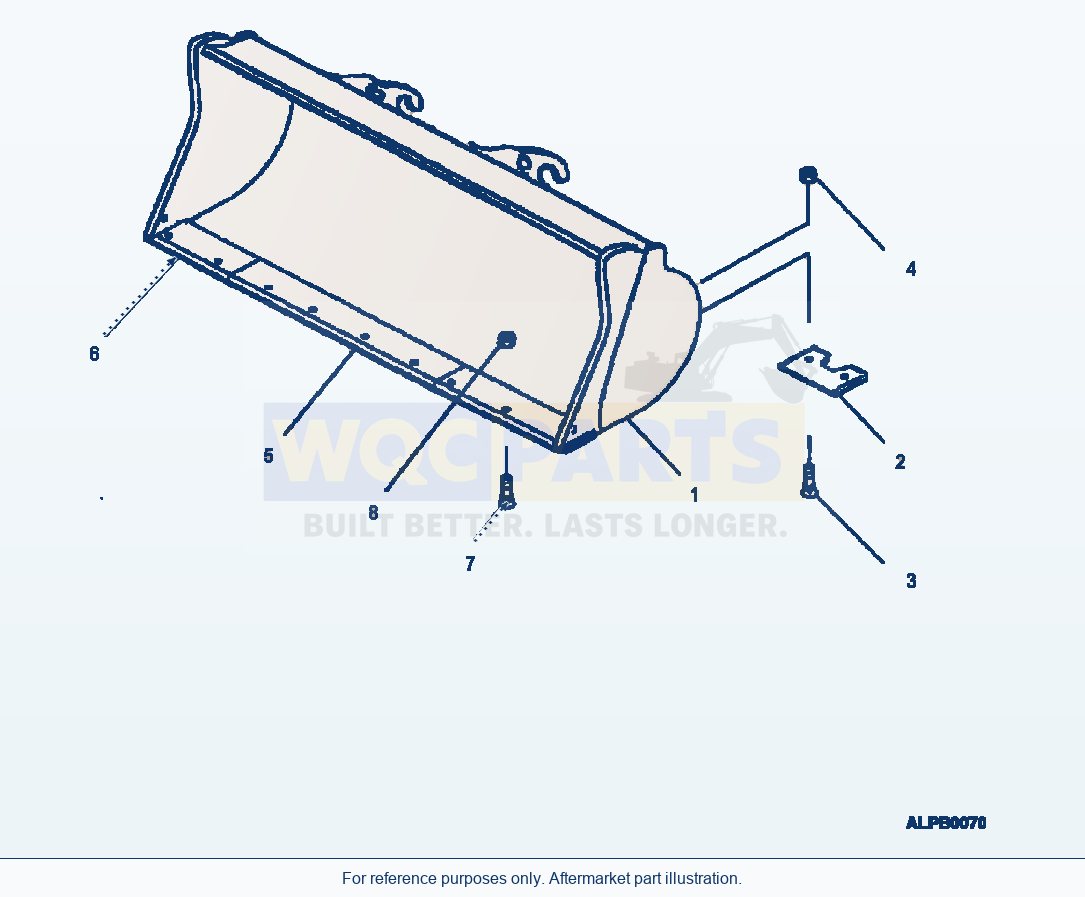

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | BUCKETSN: A71001 --UP | 1 | Request quote | |||
| 1 | BUCKETSN: A71001 --UP | 1 | Request quote | |||
| 2 | WEAR KITSN: A71001 --UP | 2 | Request quote | |||
| 2 | PLATESN: A71001 --UP | 2 | Request quote | |||
| 3 | SCREW, FLAT HEADSN: A71001 --UP | 4 | Request quote | |||
| 4 | NUTSN: A71001 --UP | 4 | Request quote | |||
| 6 | EDGE KITSN: A71001 --UP | 1 | Request quote | |||
| 5 | EDGE, CENTERSN: A71001 --UP | 1 | Request quote | |||
| 6 | EDGESN: A71001 --UP | 2 | Request quote | |||
| 7 | SCREW, FLAT HEADSN: A71001 --UP | 8 | Request quote | |||
| 8 | NUTSN: A71001 --UP | 8 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-3MC Wheel Loader Bucket 2.6 Cu Yd Parts
Use the Komatsu WA250-3MC Wheel Loader Bucket 2.6 Cu Yd Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial A71001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including bucket (reference 418-U77-A170), bucket (reference 418-U77-A240) and wear kit (reference 418-U77-A520). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
