Komatsu WA250-5 Wheel Loader Radiator Mount Parts
Komatsu WA250-5 radiator mount parts for machine serial H50051 - UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: C0 Cooling System / Radiator Mount.
Checking current purchase options...

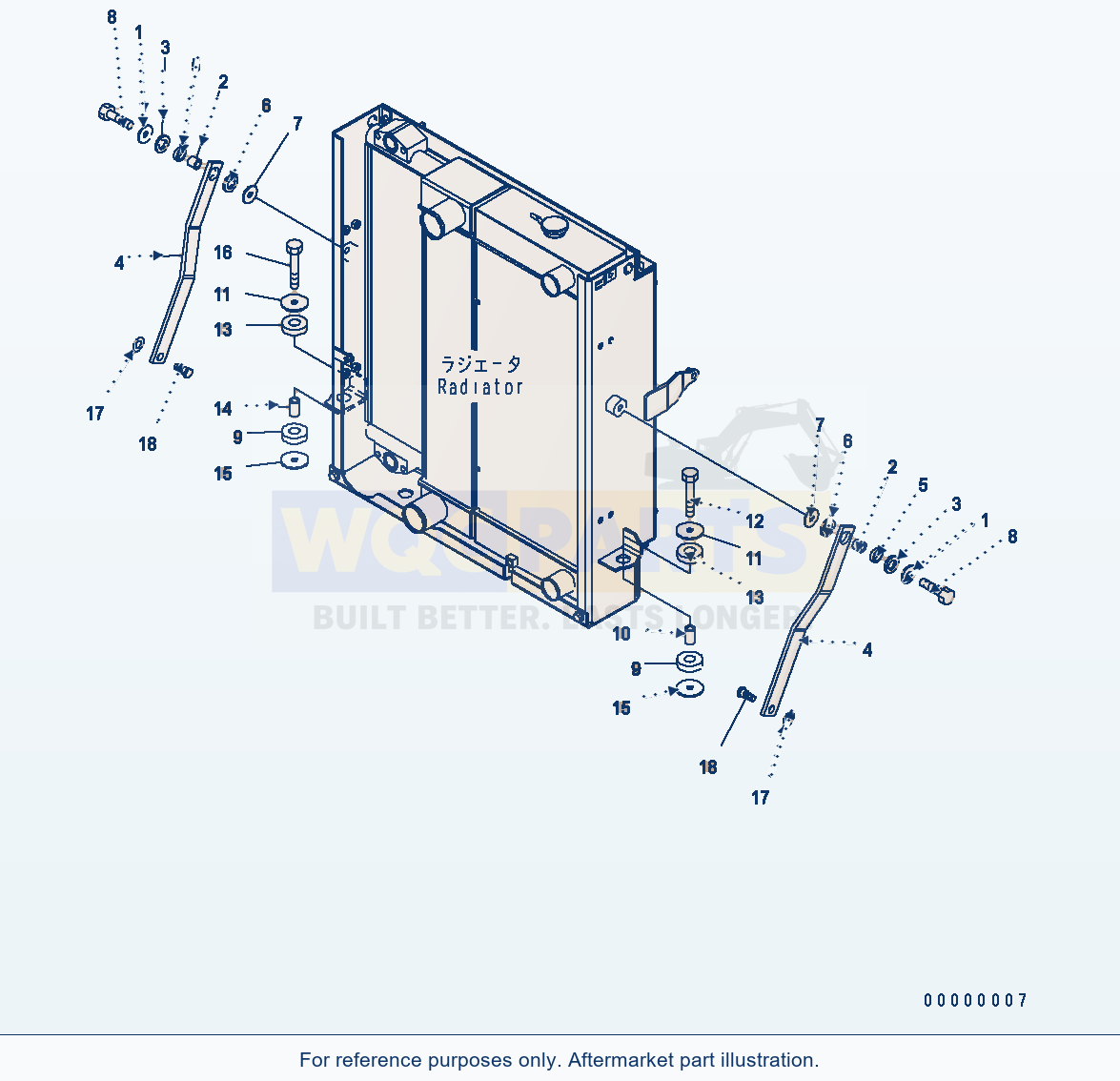

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 18 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WASHERSN: H50051-UP | 2 | Request quote | |||
| 2 | SPACERSN: H50051-UP | 2 | Request quote | |||
| 3 | CUSHIONSN: H50051-UP | 2 | Request quote | |||
| 4 | PLATESN: H50051-UP | 2 | Request quote | |||
| 5 | CUSHIONSN: H50051-UP | 2 | Request quote | |||
| 6 | CUSHIONSN: H50051-UP | 2 | Request quote | |||
| 7 | WASHERSN: H50051-UP | 2 | Request quote | |||
| 8 | BOLTSN: H50051-UP | 2 | Request quote | |||
| 9 | CUSHIONSN: H50051-UP | 2 | Request quote | |||
| 10 | SPACERSN: H50051-UP | 1 | Request quote | |||
| 11 | WASHERSN: H50051-UP | 2 | Request quote | |||
| 12 | SCREWSN: H50051-UP | 1 | Request quote | |||
| 13 | CUSHIONSN: H50051-UP | 2 | Request quote | |||
| 14 | SPACERSN: H50051-UP | 1 | Request quote | |||
| 15 | WASHERSN: H50051-UP | 2 | Request quote | |||
| 16 | SCREWSN: H50051-UP | 1 | Request quote | |||
| 17 | WASHERSN: H50051-UP | 2 | View product ↗ | |||
| 18 | BOLTSN: H50051-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
