Komatsu WA250-5 Wheel Loader Marks And Plates (French) Parts
Komatsu WA250-5 marks and plates (french) parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (French).
Checking current purchase options...

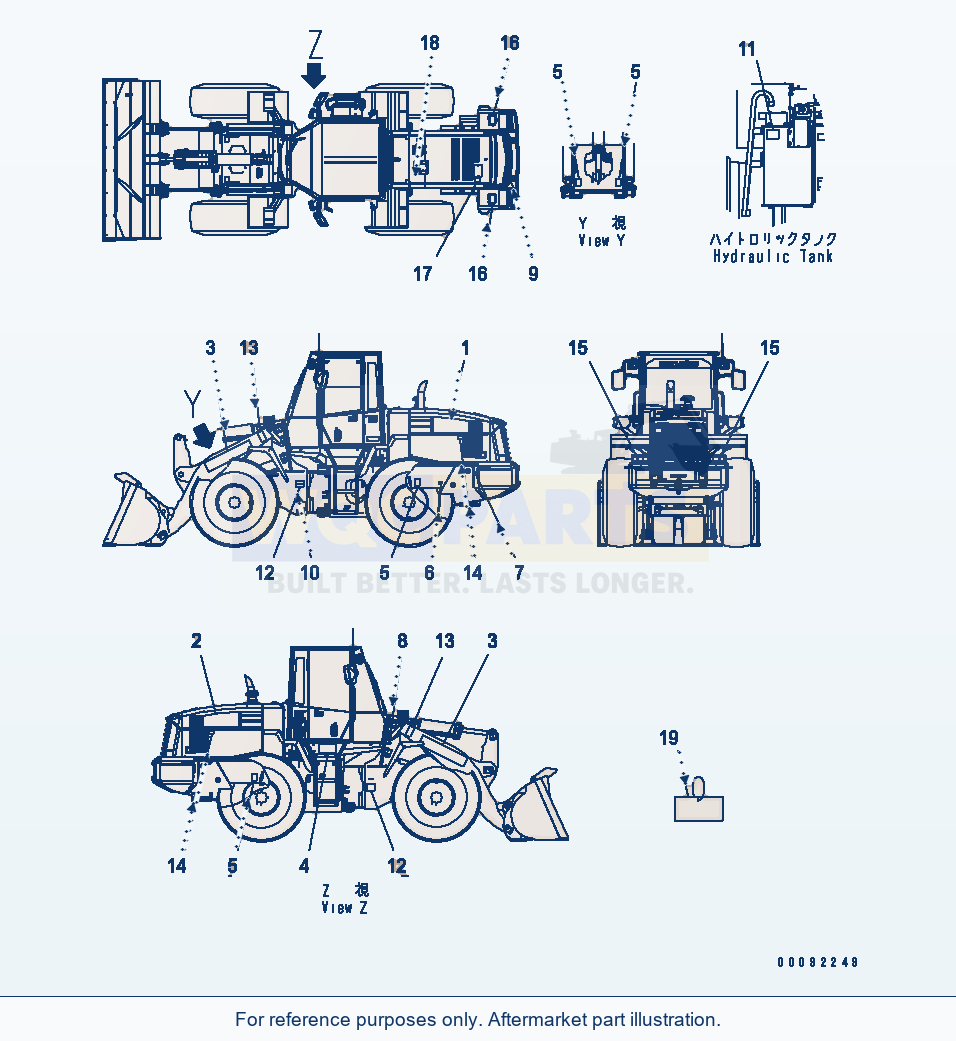

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 19 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,L.H.SN: 70001-UP | 1 | Request quote | |||
| 2 | PLATE,R.H.SN: 70001-UP | 1 | Request quote | |||
| 3 | PLATE, MARK,KOMATSUSN: 70001-UP | 2 | Request quote | |||
| 4 | OIL CHARTSN: 72784-UP | 1 | Request quote | |||
| 4 | OIL CHARTSN: 70001-72783 | 1 | Request quote | |||
| 5 | PLATE, MARK,LIFTING EYESN: 70001-UP | 4 | Request quote | |||
| 5 | PLATE, MARK,LIFTING EYESN: 70001-UP | 4 | Request quote | |||
| 11 | PLATESN: 70001-UP | 1 | Request quote | |||
| 9 | PLATE, CAUTION,DIESEL FUELSN: 70001-UP | 1 | Request quote | |||
| 10 | PLATE, SAFETY,FRAME LOCKSN: 70001-UP | 1 | Request quote | |||
| 11 | PLATE, SAFETY,HYDRAULIC TANK CAPSN: 70001-UP | 1 | Request quote | |||
| 12 | PLATE, SAFETY,ARTICULATESN: 70001-UP | 2 | Request quote | |||
| 13 | PLATE, SAFETY,KEEP OUT, WORK EQUIPMENT FALLSN: 70001-UP | 2 | Request quote | |||
| 14 | PLATE, SAFETY,KEEP AWAY FAN AND FAN-BELTSN: 70001-UP | 2 | Request quote | |||
| 15 | PLATE, SAFETY,APPROACH CAUTIONSN: 70001-UP | 2 | Request quote | |||
| 16 | PLATE, SAFETY,ELECTRIC SHOCK FROM CABLESN: 70001-UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY,RADIATORSN: 70001-UP | 1 | Request quote | |||
| 18 | PLATE, SAFETY,ACCUMULATORSN: 70001-UP | 4 | Request quote | |||
| 19 | TAGSN: 70001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE,REAR AXLE | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE,RADIATOR DRAIN | QTY: 1 | OPTIONS: SN: 70001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE,CYLINDER | QTY: 1 | OPTIONS: SN: 70001-UP
Using Komatsu WA250-5 Wheel Loader Marks And Plates (French) Parts
Use the Komatsu WA250-5 Wheel Loader Marks And Plates (French) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 19 listed part occurrences, including plate,l.h. (reference 418-93-22211), plate,r.h. (reference 418-93-22221) and plate, mark,komatsu (reference 09690-P0800). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
