Komatsu WA250-5 Wheel Loader Hst Pump(#72750-) Parts
Komatsu WA250-5 hst pump(#72750-) parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Hst Pump(#72750-).
Checking current purchase options...

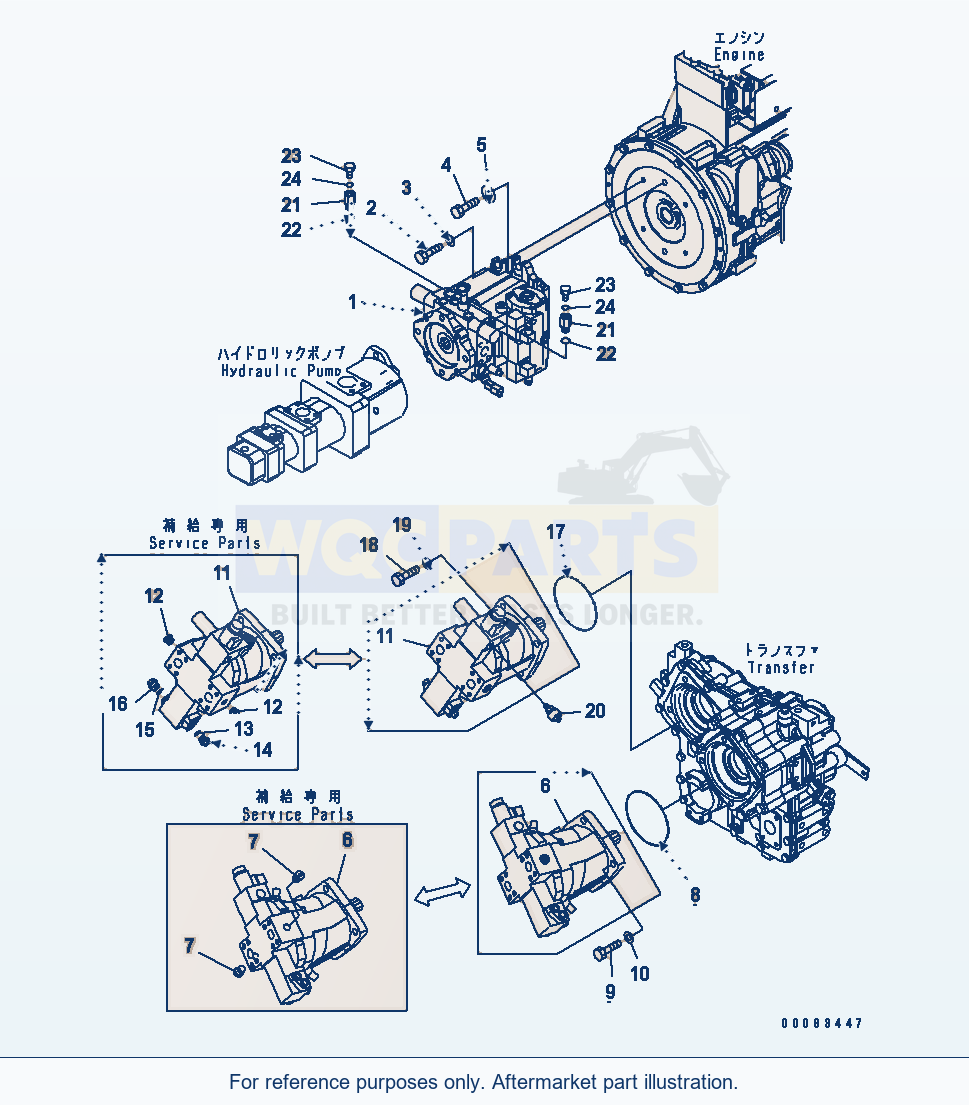

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 31 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PUMP,(SEE FIG. Y1610-01A0)SN: 72805-UP | 1 | View product ↗ | |||
| 1 | PUMP,(SEE FIG. Y1610-01A0)SN: 70001-72804 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 2 | BOLTSN: 70001-UP | 4 | Request quote | |||
| 3 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 4 | BOLTSN: 70001-UP | 2 | Request quote | |||
| 5 | WASHERSN: 70001-UP | 2 | Request quote | |||
| 6 | MOTOR,(SEE FIG. Y1651-01A0A) (HST 1)SN: 72805-UP | 1 | Request quote | |||
| 6 | MOTOR,(SEE FIG. Y1651-01A0A) (HST 1)SN: 72635-72804 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 7 | PLUGSN: 72750-UP | 2 | Request quote | |||
| 8 | O-RINGSN: 70001-UP | 1 | Request quote | |||
| 9 | BOLTSN: 70001-UP | 4 | View product ↗ | |||
| 10 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 11 | MOTOR,(SEE FIG. Y1651-01A1A) (HST 2)SN: 72805-UP | 1 | Request quote | |||
| 11 | MOTOR,(SEE FIG. Y1651-01A1A) (HST 2)SN: 72635-72804 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 12 | PLUGSN: 72750-UP | 2 | Request quote | |||
| 13 | O-RINGSN: 72750-UP | 2 | Request quote | |||
| 14 | PLUGSN: 72750-UP | 2 | Request quote | |||
| 15 | O-RINGSN: 72750-UP | 1 | Request quote | |||
| 16 | PLUGSN: 72750-UP | 1 | Request quote | |||
| 17 | O-RINGSN: 70001-UP | 1 | Request quote | |||
| 18 | BOLTSN: 70001-UP | 4 | View product ↗ | |||
| 19 | WASHERSN: 70001-UP | 4 | View product ↗ | |||
| 20 | SENSOR,HST OIL PRESSURESN: 70001-UP | 1 | Request quote | |||
| 20 | O-RINGSN: 70001-UP | 1 | View product ↗ | |||
| 21 | JOINTSN: 72788-UP | 2 | Request quote | |||
| 21 | JOINTSN: (72788-72806) | This shows a discontinued part. The part specified in the above line is supplied instead. | 2 | Request quote | |||
| 21 | JOINTSN: 70001-72787 | The part specified in the line above can be used instead of this part | 2 | Request quote | |||
| 22 | O-RINGSN: 70001-UP | 2 | View product ↗ | |||
| 23 | PLUGSN: 72814-UP | 2 | Request quote | |||
| 23 | PLUGSN: 72635-72813 | 2 | View product ↗ | |||
| 24 | O-RINGSN: 70001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250-5 Wheel Loader Hst Pump(#72750-) Parts
Use the Komatsu WA250-5 Wheel Loader Hst Pump(#72750-) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 31 listed part occurrences, including pump,(see fig. y1610-01a0) (reference 418-18-31102), pump,(see fig. y1610-01a0) (reference 418-18-31101) and motor,(see fig. y1651-01a0a) (hst 1) (reference 418-18-31203). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
