Komatsu WA250-5L Wheel Loader Decal (French) Parts
Komatsu WA250-5L decal (french) parts for machine serial A73001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Decal (French).
Checking current purchase options...

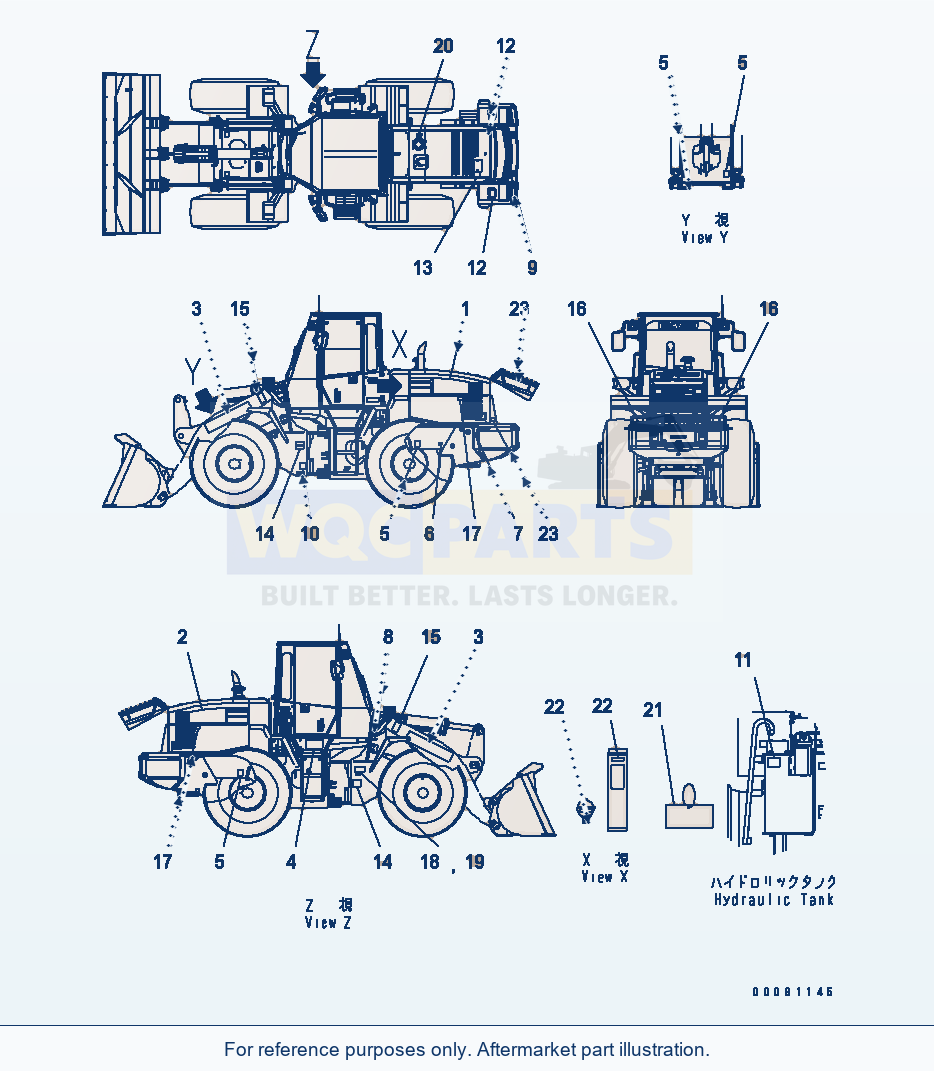

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,L.H.SN: A73001-UP | 1 | Request quote | |||
| 2 | PLATE,R.H.SN: A73001-UP | 1 | Request quote | |||
| 3 | PLATE, MARK,KOMATSUSN: A73001-UP | 2 | Request quote | |||
| 4 | OIL CHARTSN: A73001-UP | 1 | Request quote | |||
| 5 | PLATE, MARK,LIFT HERESN: A73001-UP | 4 | Request quote | |||
| 7 | PLATESN: A73001-UP | 1 | Request quote | |||
| 11 | PLATESN: A73001-UP | 1 | Request quote | |||
| 15 | PLATE, SAFETY,KEEP OUTSN: A73001-UP | 2 | Request quote | |||
| 20 | PLATE, OPERATING,CONTROL LEVER LOCKSN: A73001-UP | 1 | Request quote | |||
| 16 | PLATE, SAFETY,KEEP A SAFE DISTANCESN: A73001-UP | 2 | Request quote | |||
| 17 | PLATE, SAFETY,FANSN: A73001-UP | 2 | Request quote | |||
| 19 | SCREWSN: A73001-UP | 4 | Request quote | |||
| 20 | PLATE,NO ETHERSN: A73001-UP | 1 | Request quote | |||
| 21 | TAG,DO NOT OPERATESN: A73001-UP | 1 | Request quote | |||
| 28 | PLATE, OPERATING,CONTROL LEVER LOCKSN: A73001-UP | 1 | Request quote | |||
| 29 | PLATE, SAFETY,FENDERSN: A73001-UP | 2 | Request quote | |||
| 30 | PLATE, MARK,KOMATSUSN: A73001-UP | 2 | Request quote | |||
| 31 | PLATE, CAUTION,DIESELSN: A73001-UP | 1 | Request quote | |||
| 22 | PLATE, SAFETY,EXPLOSION HAZARDSN: A73001-UP | 2 | Request quote | |||
| 23 | PLATE, CAUTION,HOODSN: A73001-UP | 4 | Request quote | |||
| 38 | PLATE,KOMATSUSN: A73001-UP | 1 | Request quote | |||
| 39 | PLATE,GALEOSN: A73001-UP | 2 | Request quote | |||
| 40 | PLATE, MARK,KOMATSUSN: A73001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE,REAR AXLE | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE,RADIATOR DRAIN | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE,CYLINDER | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE,DIESEL FUEL | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE,AVERTISSEMENT, BARRE SCUIRITE | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE,AVERTISSEMENT, L'HUILE CHAUDE | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 12 | Description: PLATE,AVERTISSEMENT, ULIISATION DE | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 13 | Description: PLATE,AVERTISSEMENT, L'EAU CHAUDE | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 17 | Description: PLATE,UNIQUIMENT L'HUILE MOTEUR | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 14 | Description: PLATE,DANGER, ESCRASEMENT | QTY: 1 | OPTIONS: SN: A73001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 18 | Description: PLATE,PRODUCT ID. | QTY: 1 | OPTIONS: SN: A73001-UP
Using Komatsu WA250-5L Wheel Loader Decal (French) Parts
Use the Komatsu WA250-5L Wheel Loader Decal (French) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A73001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including plate,l.h. (reference 418-93-22211), plate,r.h. (reference 418-93-22221) and plate, mark,komatsu (reference 09690-P0800). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
