Komatsu WA250-5L Wheel Loader Hst Pump (Cover) Parts
Komatsu WA250-5L hst pump (cover) parts for machine serial A73001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Transmission / Hst Pump (Cover).
Checking current purchase options...

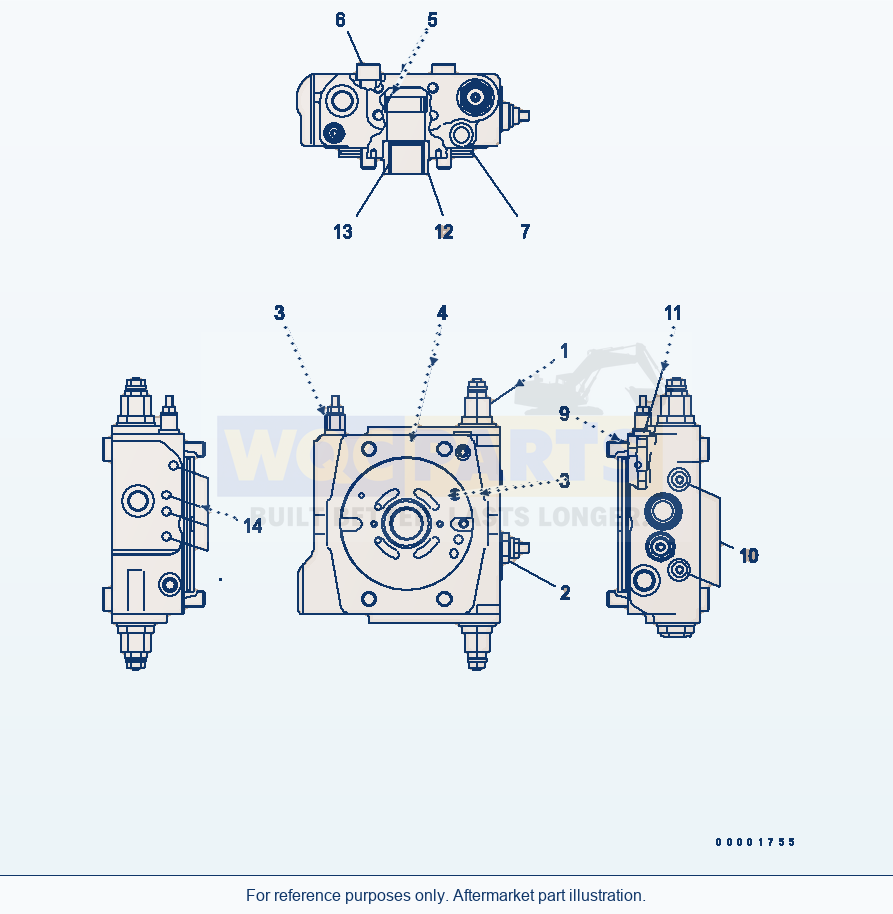

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 12 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 2 | COVERSN: A73001-UP | 1 | Request quote | |||
| 4 | COVERSN: A73001-UP | 1 | Request quote | |||
| 5 | METALSN: A73001-UP | 1 | Request quote | |||
| 6 | BOLTSN: A73001-UP | 4 | Request quote | |||
| 7 | O-RINGSN: A73001-UP | 1 | Request quote | |||
| 8 | PLUGSN: A73001-UP | 1 | Request quote | |||
| 9 | O-RINGSN: A73001-UP | 1 | Request quote | |||
| 10 | PLUGSN: A73001-UP | This part cannot be supplied as an individual part. It is supplied as an assembly. It however is supplied as an individual part by authorized distributors only. | 2 | Request quote | |||
| 11 | PLUGSN: A73001-UP | 1 | Request quote | |||
| 12 | BUSHINGSN: A73001-UP | 1 | Request quote | |||
| 13 | METALSN: A73001-UP | 1 | Request quote | |||
| 14 | PLUGSN: A73001-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PUMP,(SEE FIG. F2430-02A0)
RELIEF VALVE,(SEE FIG. F2430-07A0)
VALVE,(SEE FIG. F2430-08A0)
CUT-OFF VALVE,(SEE FIG. F2430-09A0)
Using Komatsu WA250-5L Wheel Loader Hst Pump (Cover) Parts
Use the Komatsu WA250-5L Wheel Loader Hst Pump (Cover) Parts listing to identify aftermarket replacement parts within the transmission section. This wheel loader application is listed for machine serial A73001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 12 listed part occurrences, including cover (reference UC4100656147), cover (reference UC1100656159) and metal (reference UC1704491361). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
When selecting transmission or torque-converter parts, compare the assembly description, machine serial break and any configuration notes. Similar-looking diagrams can cover different internal parts and should not be treated as interchangeable.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
