Komatsu WA250-6 Injector Serial 75001-UP (FOR NORTH AMERICA) Parts
Komatsu WA250-6 injector serial 75001-up (for north america) parts for machine serial 75001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D107E-1H-W S/N 26500006-UP / Engine / Injector.
Checking current purchase options...

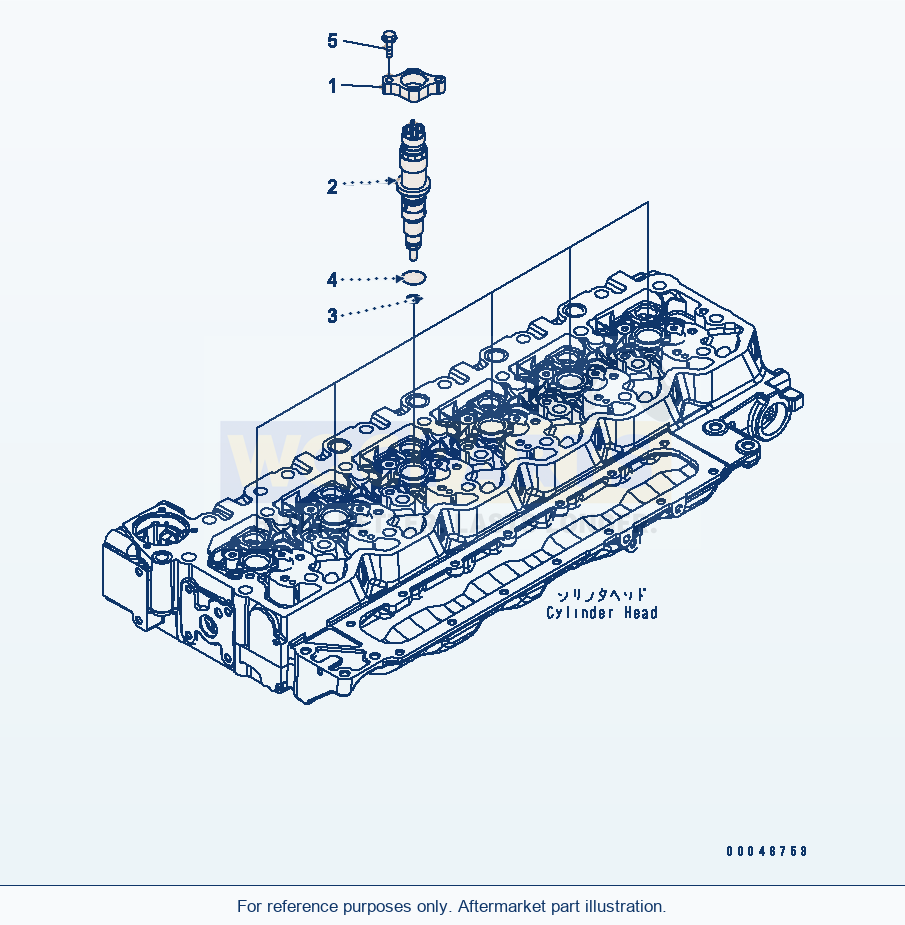

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 6 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | INJECTOR ASS'YSN: 26522276-UP | 6 | View product ↗ | |||
| 2 | INJECTOR ASS'YSN: 26500006-26522275 | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 1 | CLAMPSN: 26500006-UP | 1 | Request quote | |||
| 3 | GASKETSN: 26500006-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 4 | O-RINGSN: 26500006-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 5 | BOLTSN: 26500006-UP | 12 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: INJECTOR | QTY: 1 | OPTIONS: SN: 26552778-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: INJECTOR | QTY: 1 | OPTIONS: SN: 26522276-26552777
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: INJECTOR | QTY: 1 | OPTIONS: SN: 26500006-26522275
Using Komatsu WA250-6 Injector Serial 75001-UP (FOR NORTH AMERICA) Parts
Use the Komatsu WA250-6 Injector Serial 75001-UP (FOR NORTH AMERICA) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 75001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 6 listed part occurrences, including injector ass'y (reference 6754-11-3011), injector ass'y (reference 6754-11-3010) and clamp (reference 6754-11-3110). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D107E-1H-W (engine serial 26500006-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
