Komatsu WA250-6 Marks And Plates (English) (For North America) Parts
Komatsu WA250-6 marks and plates (english) (for north america) parts for machine serial 75001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates (English) (For North America).
Checking current purchase options...

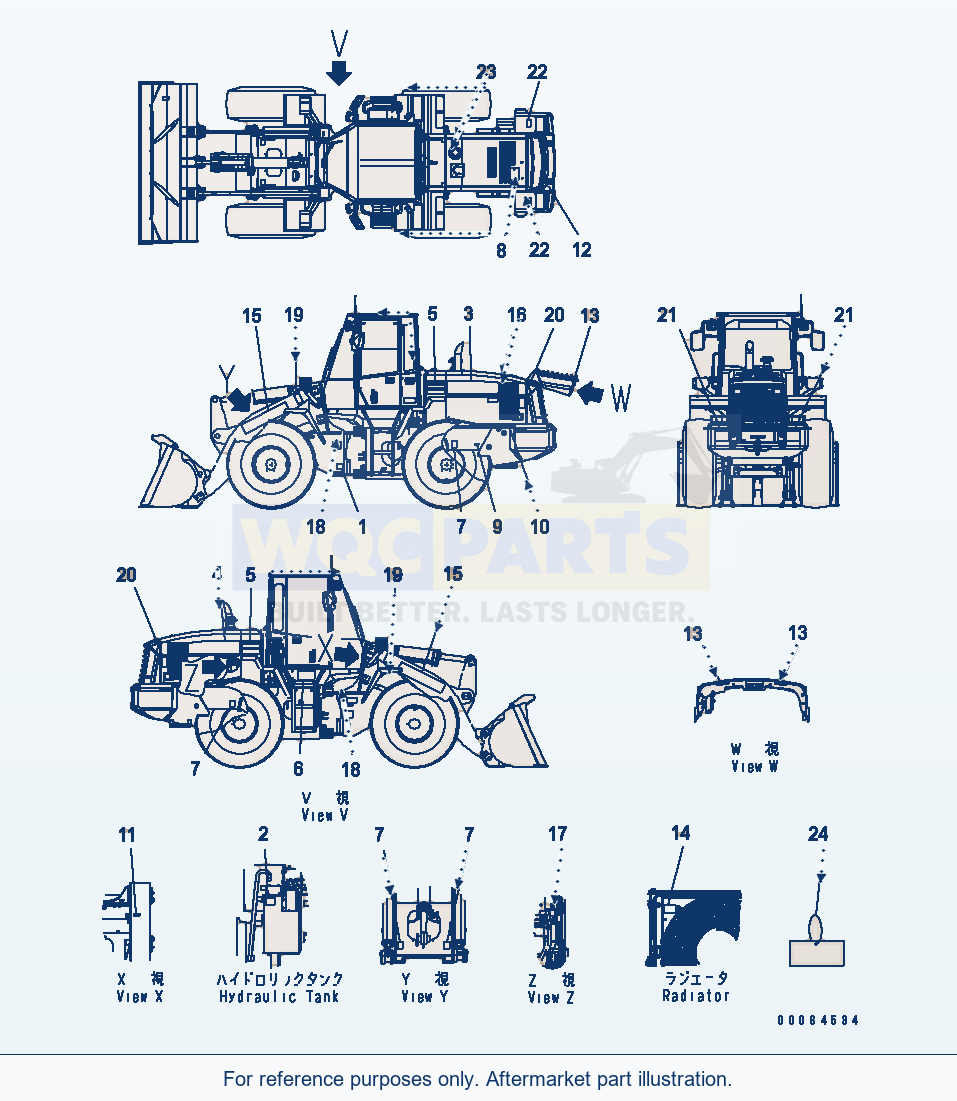

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 22 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE,FRAME LOCKSN: 75001-UP | 1 | Request quote | |||
| 2 | PLATE, SAFETY,HIGH TEMPERATURESN: 75001-UP | 2 | Request quote | |||
| 3 | PLATE,L.H.SN: 75001-UP | 1 | Request quote | |||
| 4 | PLATE,R.H.SN: 75001-UP | 1 | Request quote | |||
| 5 | PLATE,STRIPESN: 75001-UP | 2 | Request quote | |||
| 6 | OIL CHARTSN: 75001-UP | 1 | Request quote | |||
| 7 | PLATE, MARK,LIFT HERESN: 75001-UP | 4 | Request quote | |||
| 8 | PLATE, SAFETY,HIGH TEMPERATURESN: 75001-UP | 1 | Request quote | |||
| 10 | PLATESN: 75001-UP | 1 | Request quote | |||
| 12 | PLATE, CAUTION,FUELSN: 75001-UP | 1 | Request quote | |||
| 13 | PLATE,LOW CLARRANCESN: 75001-UP | 4 | Request quote | |||
| 14 | PLATE,ROTATION CAUTIONSN: 75001-UP | 1 | Request quote | |||
| 15 | PLATE, MARK,KOMATSUSN: 75001-UP | 2 | Request quote | |||
| 16 | PLATE, MARK,ECOT 3SN: 75001-UP | 1 | Request quote | |||
| 17 | PLATE,PRE FILTER CAUTIONSN: 75001-UP | 1 | Request quote | |||
| 18 | PLATE,ARTICULATESN: 75001-UP | 2 | Request quote | |||
| 19 | PLATE, SAFETY,WORK MACHINE FALLSN: 75001-UP | 2 | Request quote | |||
| 20 | PLATE, SAFETY,FANSN: 75001-UP | 2 | Request quote | |||
| 21 | PLATE, SAFETY,APPROACHSN: 75001-UP | 2 | Request quote | |||
| 22 | PLATE, SAFETY,ELECTRIC SHOCKSN: 75001-UP | 2 | Request quote | |||
| 23 | PLATE,NO ETHERSN: 75001-UP | 1 | Request quote | |||
| 24 | TAGSN: 75001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE,REMOTE GREASE, REAR AXLE | QTY: 1 | OPTIONS: SN: 75001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: PLATE,RADIATOR DRAIN | QTY: 1 | OPTIONS: SN: 75001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: PLATE,REMOTE GREASE, CYLINDER | QTY: 1 | OPTIONS: SN: 75001-UP
Using Komatsu WA250-6 Marks And Plates (English) (For North America) Parts
Use the Komatsu WA250-6 Marks And Plates (English) (For North America) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 75001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 22 listed part occurrences, including plate,frame lock (reference 09161-23000), plate, safety,high temperature (reference 09653-03001) and plate,l.h. (reference 418-93-42210). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
