Komatsu WA250L-3 Wheel Loader Transmission Control Switch Parts
Komatsu WA250L-3 transmission control switch parts for machine serial 53001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operatior'S Compartment And Control System / Transmission Control Switch.
Checking current purchase options...

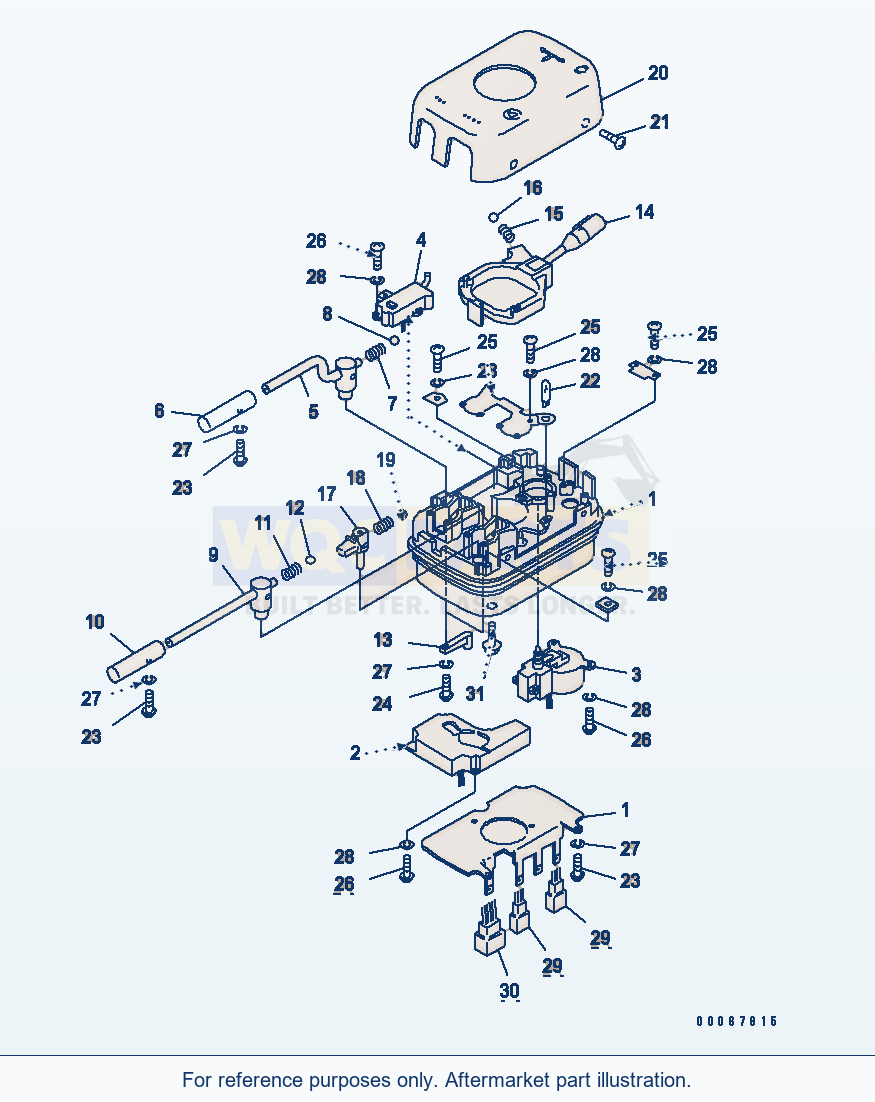

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 32 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SWITCH ASS'Y,TRANSMISSIONSN: 53001-UP | 1 | Request quote | |||
| 2 | SWITCH,F-R AND SHIFTSN: 53001-UP | 1 | Request quote | |||
| 3 | SWITCH,LAMP AND DIMMERSN: 53001-UP | 1 | Request quote | |||
| 4 | SWITCH,HAZARD AND TURN SIGNALSN: 53001-UP | 1 | Request quote | |||
| 5 | LEVER ASS'Y,F-RSN: 53001-UP | 1 | Request quote | |||
| 6 | GRIPSN: 53001-UP | 1 | Request quote | |||
| 7 | SPRINGSN: 53001-UP | 1 | Request quote | |||
| 8 | BALLSN: 53001-UP | 1 | Request quote | |||
| 10 | LEVER ASS'Y,SHIFTSN: 53001-UP | 1 | Request quote | |||
| 9 | LEVER,SHIFTSN: 53001-UP | 1 | Request quote | |||
| 10 | GRIPSN: 53001-UP | 1 | Request quote | |||
| 11 | SPRINGSN: 53001-UP | 1 | Request quote | |||
| 12 | BALLSN: 53001-UP | 1 | Request quote | |||
| 13 | ARM,MAGNETSN: 53001-UP | 2 | Request quote | |||
| 14 | LEVER ASS'Y,TURNSN: 53001-UP | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 15 | SPRINGSN: 53001-UP | 1 | Request quote | |||
| 16 | BALLSN: 53001-UP | 1 | Request quote | |||
| 17 | KNOB ASS'Y,LOCKSN: 53001-UP | 1 | Request quote | |||
| 18 | SPRINGSN: 53001-UP | 1 | Request quote | |||
| 19 | BALLSN: 53001-UP | 1 | Request quote | |||
| 20 | COVERSN: 53001-UP | 1 | Request quote | |||
| 21 | SCREWSN: 53001-UP | 4 | Request quote | |||
| 22 | BULB, 1.4WSN: 53001-UP | 1 | Request quote | |||
| 23 | SCREWSN: 53001-UP | 6 | Request quote | |||
| 24 | SCREWSN: 53001-UP | 2 | Request quote | |||
| 25 | SCREWSN: 53001-UP | 10 | Request quote | |||
| 26 | SCREWSN: 53001-UP | 11 | Request quote | |||
| 27 | WASHERSN: 53001-UP | 8 | Request quote | |||
| 28 | WASHERSN: 53001-UP | 21 | View product ↗ | |||
| 29 | CONNECTORSN: 53001-UP | 2 | Request quote | |||
| 30 | CONNECTORSN: 53001-UP | 1 | Request quote | |||
| 31 | BOLTSN: 53001-UP | 3 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: LEVER,F-R | QTY: 1 | OPTIONS: SN: 53001-UP
Using Komatsu WA250L-3 Wheel Loader Transmission Control Switch Parts
Use the Komatsu WA250L-3 Wheel Loader Transmission Control Switch Parts listing to identify aftermarket replacement parts within the operatior's compartment and control system section. This wheel loader application is listed for machine serial 53001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 32 listed part occurrences, including switch ass'y,transmission (reference 417-43-26120), switch,f-r and shift (reference 417-43-26210) and switch,lamp and dimmer (reference 417-43-26220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
