Komatsu WA250L-3 Tire (20.5-25-12Pr L2 Tubeless Tire) Parts
Komatsu WA250L-3 tire (20.5-25-12pr l2 tubeless tire) parts for machine serial 53001-UP (FOR NORTH AMERICA). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Suspension And Wheel Related Parts / Tire (20.5-25-12Pr L2 Tubeless Tire).
Checking current purchase options...

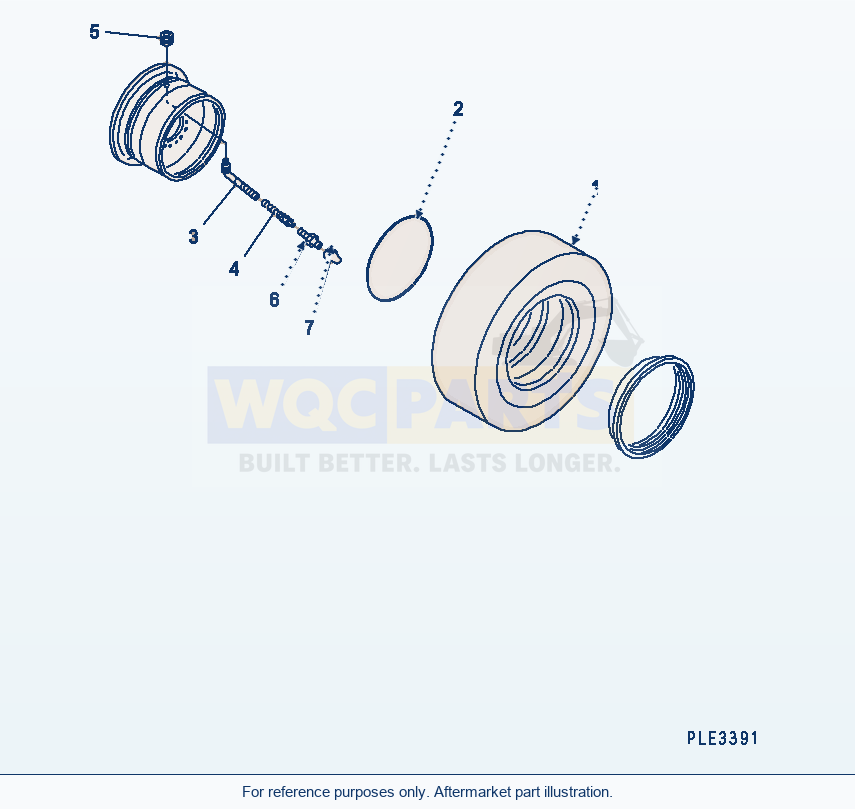

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 11 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | TIRESN: 53001-UP | 4 | Request quote | |||
| 2 | O-RINGSN: 53001-UP | 4 | Request quote | |||
| 7 | VALVESN: 53186-UP | 4 | Request quote | |||
| 8 | VALVE ASS'YSN: 53001-53185 | 4 | Request quote | |||
| 3 | STEM,VALVESN: 53001-UP | 1 | Request quote | |||
| 4 | CORE,VALVESN: 53001-UP | 1 | Request quote | |||
| 5 | SEAT,VALVESN: 53001-UP | 1 | Request quote | |||
| 6 | ADAPTERSN: 53186-UP | 1 | Request quote | |||
| 6 | ADAPTERSN: 53001-53185 | 1 | Request quote | |||
| 7 | CAPSN: 53186-UP | 1 | Request quote | |||
| 7 | CAPSN: 53001-53185 | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
TIRE
20.5-25-12PR-L2
BRIDGESTONE
Using Komatsu WA250L-3 Tire (20.5-25-12Pr L2 Tubeless Tire) Parts
Use the Komatsu WA250L-3 Tire (20.5-25-12Pr L2 Tubeless Tire) Parts listing to identify aftermarket replacement parts within the suspension and wheel related parts section. This wheel loader application is listed for machine serial 53001-UP (FOR NORTH AMERICA); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 11 listed part occurrences, including tire (reference 419-X51-2120), valve (reference 09280-10040) and valve ass'y (reference 419-30-11640). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
