Komatsu WA250L-5 Wheel Loader Air Condtioner Unit (Inner Parts) Parts
Komatsu WA250L-5 air condtioner unit (inner parts) parts for machine serial 70001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Service Kit And Component Parts / Air Condtioner Unit (Inner Parts).
Checking current purchase options...

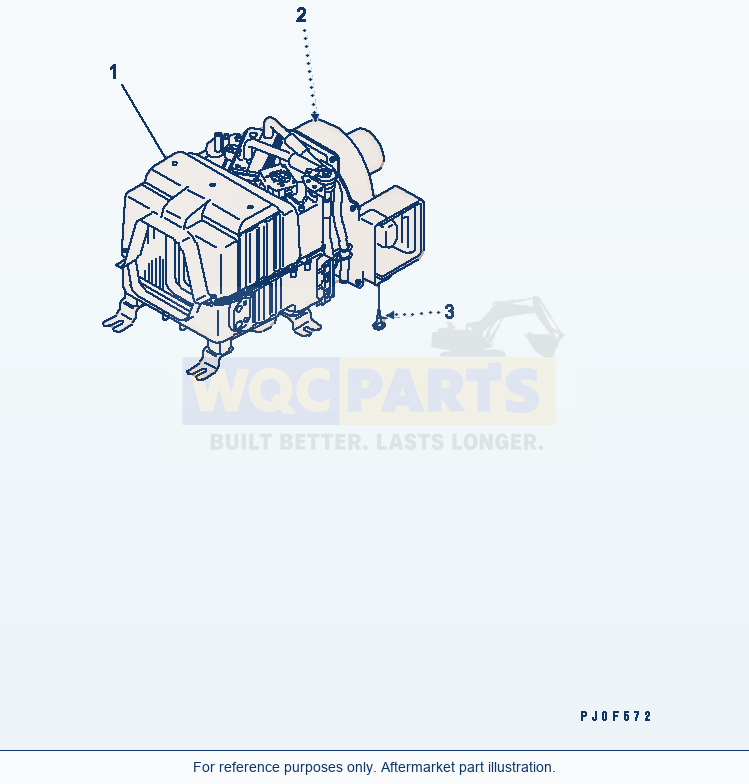

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 4 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | AIR CONDITIONER U.SN: 70001-UP | 1 | Request quote | |||
| 1 | AIR CONDITIONERSN: 70001-UP | 1 | Request quote | |||
| 2 | BLOWER ASS'YSN: 70001-UP | 1 | Request quote | |||
| 3 | SCREWSN: 70001-UP | 5 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250L-5 Wheel Loader Air Condtioner Unit (Inner Parts) Parts
Use the Komatsu WA250L-5 Wheel Loader Air Condtioner Unit (Inner Parts) Parts listing to identify aftermarket replacement parts within the service kit and component parts section. This wheel loader application is listed for machine serial 70001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 4 listed part occurrences, including air conditioner u. (reference 425-07-21111), air conditioner (reference ND445800-9183) and blower ass'y (reference ND116300-4631). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
