Komatsu WA250PT-3 Wheel Loader Front Light Parts
Komatsu WA250PT-3 front light parts for machine serial 50001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Electrical Sytem / Front Light.
Checking current purchase options...

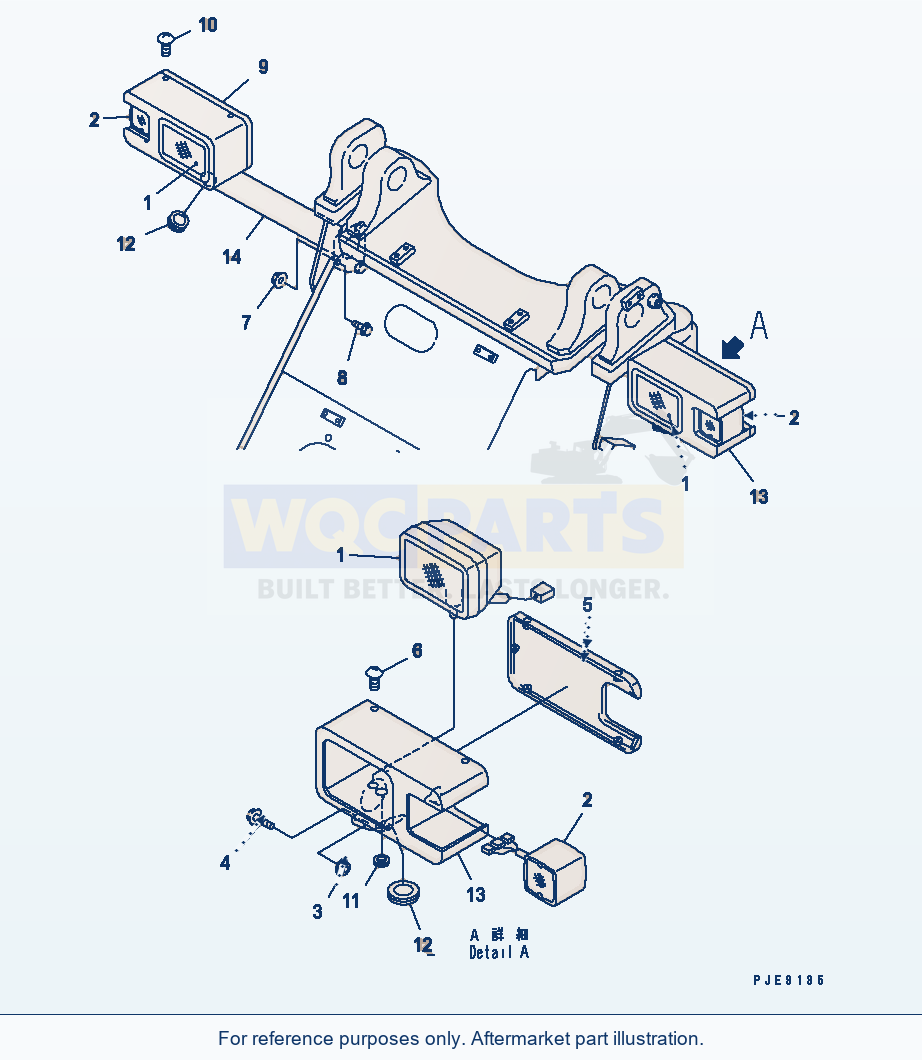

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 24 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | HEAD LAMP ASS'YSN: 50001-UP | 2 | Request quote | |||
| 1 | BULB, 62/62WSN: 50001-UP | 1 | Request quote | |||
| 1 | LENSSN: 50001-UP | 1 | Request quote | |||
| 1 | CONNECTORSN: 50001-UP | 1 | Request quote | |||
| 2 | LAMP ASS'Y,COMBINATIONSN: 50001-UP | 2 | Request quote | |||
| 2 | LENS,FRONTSN: 50001-UP | 1 | Request quote | |||
| 2 | LENS,REARSN: 50001-UP | 1 | Request quote | |||
| 2 | BULB, 5WSN: 50001-UP | 1 | Request quote | |||
| 2 | BULB, 25WSN: 50001-UP | 1 | View product ↗ | |||
| 2 | SCREWSN: 50001-UP | 4 | Request quote | |||
| 2 | CONNECTORSN: 50001-UP | 2 | Request quote | |||
| 2 | CONNECTORSN: 50001-UP | 1 | Request quote | |||
| 3 | NUTSN: 50001-UP | 3 | Request quote | |||
| 4 | BOLTSN: 50001-UP | 3 | Request quote | |||
| 5 | PLATESN: 50001-UP | 1 | Request quote | |||
| 6 | SCREWSN: 50001-UP | 4 | Request quote | |||
| 7 | NUTSN: 50001-UP | 3 | Request quote | |||
| 8 | BOLTSN: 50001-UP | 3 | Request quote | |||
| 9 | PLATESN: 50001-UP | 1 | Request quote | |||
| 10 | SCREWSN: 50001-UP | 4 | Request quote | |||
| 11 | GROMMETSN: 50001-UP | 2 | View product ↗ | |||
| 12 | CAPSN: 50001-UP | 2 | Request quote | |||
| 13 | SUPPORT,L.H.SN: 50001-UP | 1 | Request quote | |||
| 14 | SUPPORT,R.H.SN: 50001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250PT-3 Wheel Loader Front Light Parts
Use the Komatsu WA250PT-3 Wheel Loader Front Light Parts listing to identify aftermarket replacement parts within the electrical sytem section. This wheel loader application is listed for machine serial 50001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 24 listed part occurrences, including head lamp ass'y (reference 417-06-23212), bulb, 62/62w (reference 417-06-23221) and lens (reference 417-06-23260). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
