Komatsu WA250PT-3 Wheel Loader Fan Drive Pulley(#26233057-) Parts
Komatsu WA250PT-3 fan drive pulley(#26233057-) parts for machine serial 50001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: S6D102E-1X-6 S/N 26200163-UP / Engine / Fan Drive Pulley(#26233057-).
Checking current purchase options...

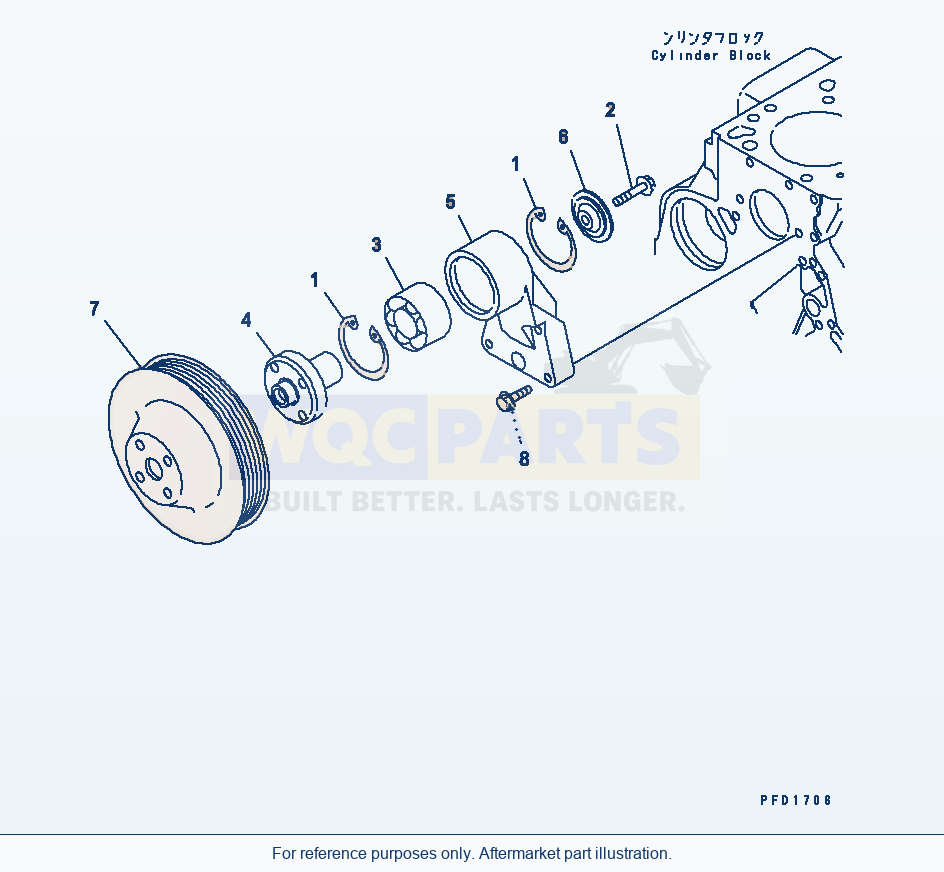

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 9 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | SUPPORT ASS'YSN: 26233057-UP | 1 | Request quote | |||
| 1 | RING,SNAPSN: 26233057-UP | 2 | Request quote | |||
| 2 | BOLTSN: 26233057-UP | 1 | Request quote | |||
| 3 | BEARING,BALLSN: 26237126-UP | 1 | Request quote | |||
| 3 | BEARING,BALLSN: 26233057-26237125 | The part specified in the line above can be used instead of this part | 1 | View product ↗ | |||
| 4 | HUBSN: 26233057-UP | 1 | Request quote | |||
| 6 | RETAINERSN: 26233057-UP | 1 | View product ↗ | |||
| 7 | PULLEYSN: 26233057-UP | 1 | Request quote | |||
| 8 | BOLTSN: 26233057-UP | 4 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: SUPPORT | QTY: 1 | OPTIONS: SN: 26233057-UP
Using Komatsu WA250PT-3 Wheel Loader Fan Drive Pulley(#26233057-) Parts
Use the Komatsu WA250PT-3 Wheel Loader Fan Drive Pulley(#26233057-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 50001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 9 listed part occurrences, including support ass'y (reference 6732-61-3280), ring,snap (reference 6732-61-3450) and bearing,ball (reference 6732-21-3430). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is S6D102E-1X-6 (engine serial 26200163-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
