Komatsu WA250PT-3 Transmission (Valve And Mounting Parts) Parts
Komatsu WA250PT-3 transmission (valve and mounting parts) parts for machine serial 50001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Power Train / Transmission (Valve And Mounting Parts).
Checking current purchase options...

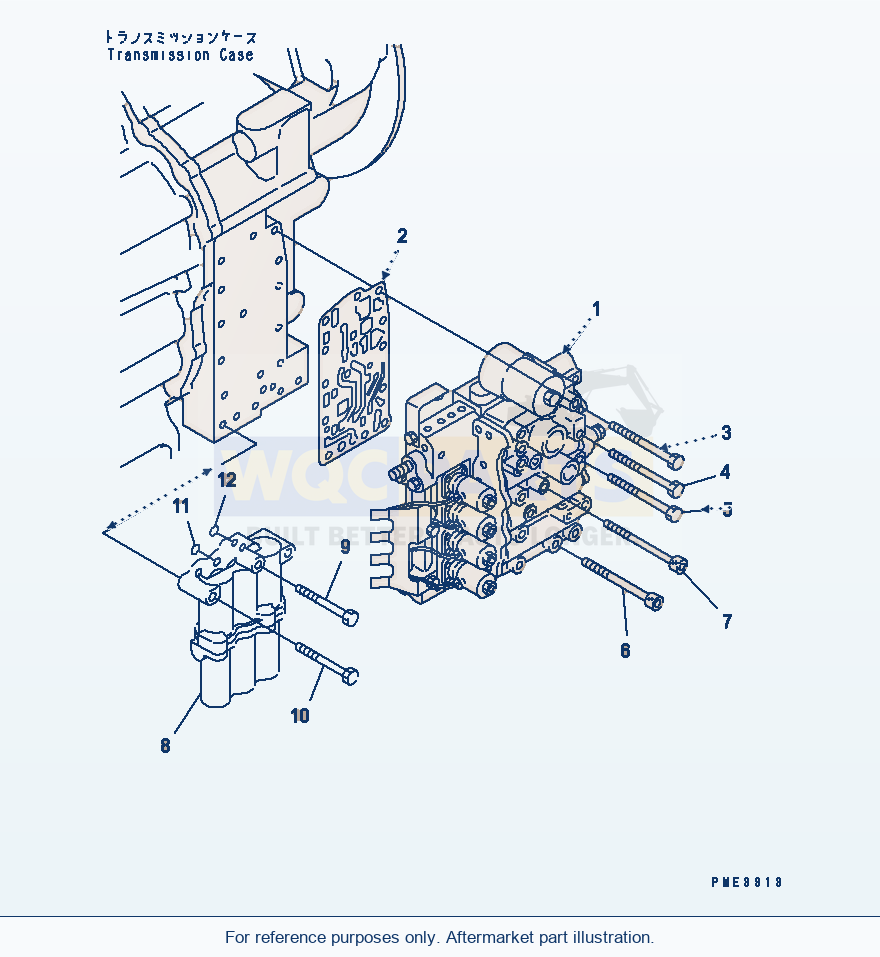

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 16 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 4 | TORQFLOW ASS'YSN: 50021-UP | 1 | Request quote | |||
| 5 | TORQFLOW ASS'YSN: 50001-50020 | 1 | Request quote | |||
| 6 | TORQFLOW ASS'Y,(WITH EMERGENCY STEERING)SN: 50021-UP | 1 | Request quote | |||
| 7 | TORQFLOW ASS'Y,(WITH EMERGENCY STEERING)SN: 50001-50020 | 1 | Request quote | |||
| 1 | CONTROL VALVE ASS'YSN: 50001-UP | 1 | Request quote | |||
| 2 | GASKET,LOWER (K2)SN: 50001-UP | 1 | View product ↗ | |||
| 3 | BOLTSN: 50001-UP | 4 | Request quote | |||
| 4 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 5 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 6 | BOLTSN: 50001-UP | 4 | Request quote | |||
| 7 | BOLTSN: 50001-UP | 1 | Request quote | |||
| 8 | VALVE ASS'Y,ACCUMULATORSN: 50001-UP | 1 | Request quote | |||
| 9 | BOLTSN: 50001-UP | 1 | Request quote | |||
| 10 | BOLTSN: 50001-UP | 2 | Request quote | |||
| 11 | O-RING (K2)SN: 50001-UP | 2 | Request quote | |||
| 12 | O-RING (K2)SN: 50001-UP | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-70A0.
Using Komatsu WA250PT-3 Transmission (Valve And Mounting Parts) Parts
Use the Komatsu WA250PT-3 Transmission (Valve And Mounting Parts) Parts listing to identify aftermarket replacement parts within the power train section. This wheel loader application is listed for machine serial 50001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 16 listed part occurrences, including torqflow ass'y (reference 714-13-10001), torqflow ass'y (reference 714-13-10000) and torqflow ass'y,(with emergency steering) (reference 714-13-10041). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
