Komatsu WA250PT-3L Connecting Rod & Piston (E2Az6B.002) Parts
Komatsu WA250PT-3L connecting rod & piston (e2az6b.002) parts for machine serial A75001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Engine / Connecting Rod & Piston (E2Az6B.002).
Checking current purchase options...

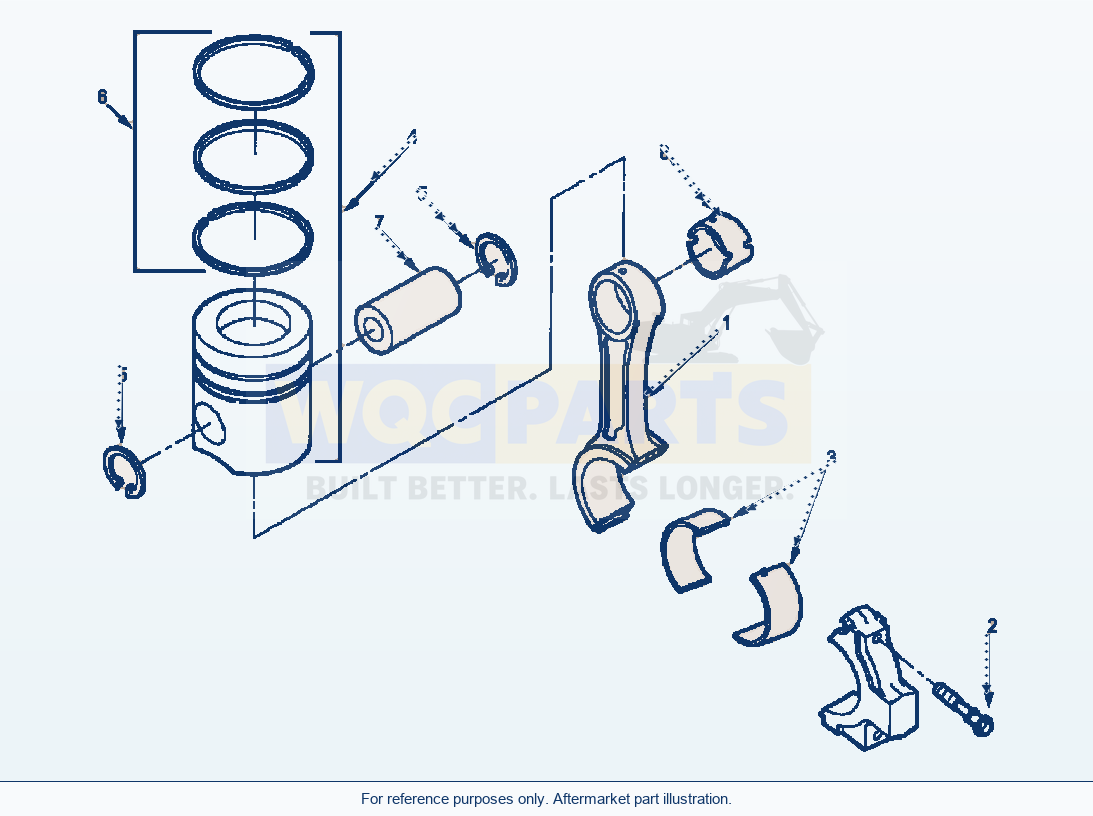

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | ROD, ENGINE CONNECTINGR1 | 6 | View product ↗ | |||
| 2 | BOLT, CONNECTING ROD CAP (MJ11X1.25X59) | 2 | Request quote | |||
| 8 | BUSHING | 1 | View product ↗ | |||
| 3 | BEARING, CONNECTING ROD (STD) | 2 | Request quote | |||
| 4 | BEARING, CONNECTING ROD (0.25MM OVERSIZE) | - | View product ↗ | |||
| 5 | BEARING, CONNECTING ROD (0.50MM OVERSIZE) | - | View product ↗ | |||
| 6 | BEARING, CONNECTING ROD (0.75MM OVERSIZE) | - | View product ↗ | |||
| 7 | BEARING, CONNECTING ROD (1.00MM OVERSIZE) | - | View product ↗ | |||
| 8 | KIT, ENGINE PISTON (STD, COMP RATIO 17.3) | 6 | Request quote | |||
| 4 | KIT, ENGINE PISTON | 6 | Request quote | |||
| 5 | RING, RETAINING | 2 | Request quote | |||
| 6 | SET, PISTON RING | 1 | View product ↗ | |||
| 7 | PIN, PISTON | 6 | View product ↗ | |||
| 13 | KIT, ENGINE PISTON (0.50MM OVERSIZE) | 6 | Request quote | |||
| 4 | KIT, ENGINE PISTON | 6 | Request quote | |||
| 5 | RING, RETAINING | 2 | Request quote | |||
| 6 | SET, PISTON RING | 1 | Request quote | |||
| 17 | KIT, ENGINE PISTON (1.00MM OVERSIZE) | 6 | Request quote | |||
| 4 | KIT, ENGINE PISTON | 6 | Request quote | |||
| 5 | RING, RETAINING | 2 | Request quote | |||
| 6 | SET, PISTON RING | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
R1 - REMANUFACTURED ASSEMBLY AVAILABLE, REFER TO REMANUFACTURED
ASSEMBLIES CATALOG.
Using Komatsu WA250PT-3L Connecting Rod & Piston (E2Az6B.002) Parts
Use the Komatsu WA250PT-3L Connecting Rod & Piston (E2Az6B.002) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial A75001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including rod, engine connecting (reference 6732-31-3100), bushing (reference 6732-31-3130) and bearing, connecting rod (std) (reference 6732-31-3410). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
