Komatsu WA250PT-3MC Wheel Loader Lift Arm Parallel Lift Linkage Parts
Komatsu WA250PT-3MC lift arm parallel lift linkage parts for machine serial A78001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Work Equipment / Lift Arm Parallel Lift Linkage.
Checking current purchase options...

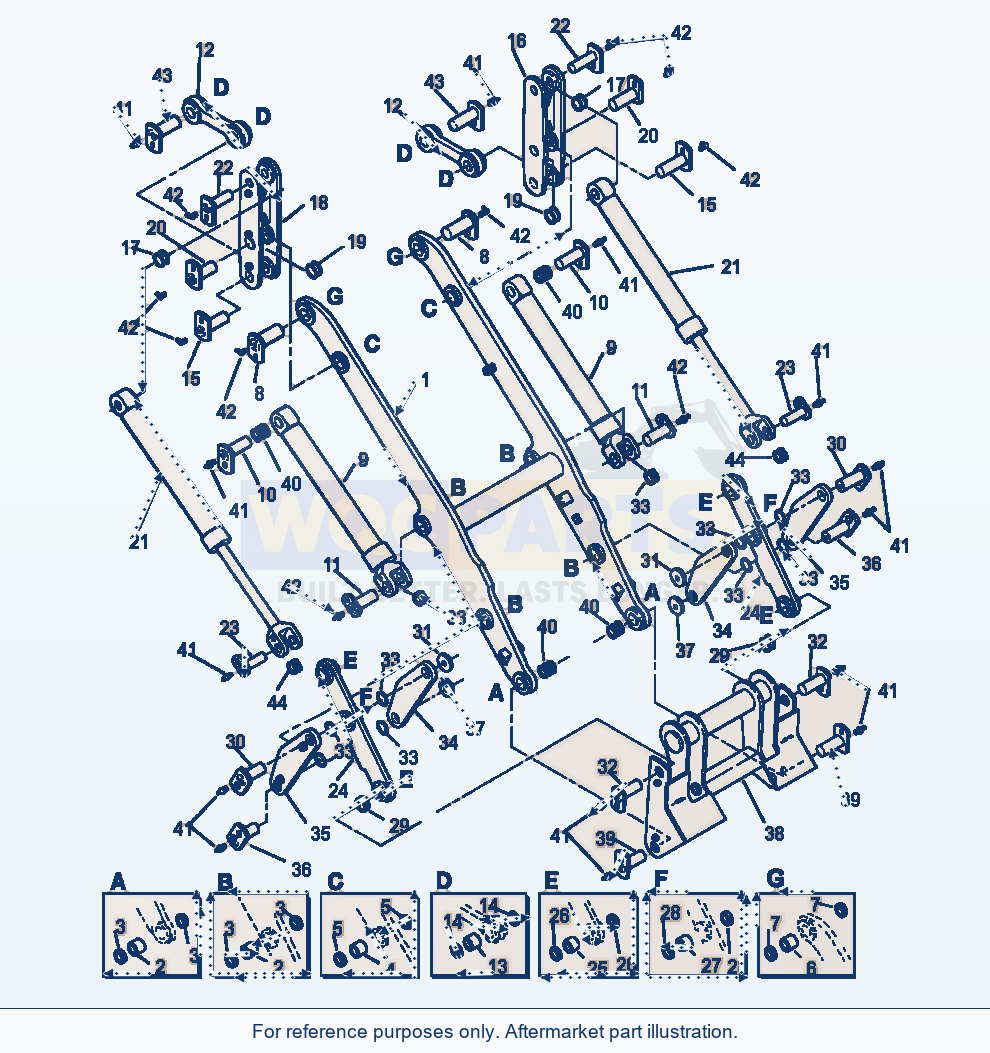

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 73 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | ARM ASSEMBLY, LIFTSN: A78001 --UP | 1 | Request quote | |||
| 1 | ARM, LIFTSN: A78001 --UP | 1 | Request quote | |||
| 2 | BUSHINGSN: A78001 --UP | 6 | View product ↗ | |||
| 3 | SEAL, DUSTSN: A78001 --UP | 12 | View product ↗ | |||
| 4 | BUSHINGSN: A78001 --UP | 4 | View product ↗ | |||
| 5 | SEAL, DUSTSN: A78001 --UP | 8 | View product ↗ | |||
| 6 | BUSHINGSN: A78001 --UP | 2 | View product ↗ | |||
| 7 | SEAL, DUSTSN: A78001 --UP | 4 | View product ↗ | |||
| 8 | PINLOCK, MOUNT LIFT ARM TO FRAMESN: A78001 --UP | 2 | Request quote | |||
| 9 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 10 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 10 | PINLOCK, MOUNT LIFT CYLINDER TO FRAMESN: A78001 --UP | 2 | Request quote | |||
| 13 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 14 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 11 | PINLOCK, MOUNT LIFT CYLINDER TO ARMSN: A78001 --UP | 2 | View product ↗ | |||
| 16 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 17 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 12 | LINK ASSEMBLYSN: A78001 --UP | 2 | Request quote | |||
| 13 | BUSHINGSN: A78001 --UP | 2 | View product ↗ | |||
| 14 | SEAL, DUSTSN: A78001 --UP | 4 | View product ↗ | |||
| 15 | PINLOCK, MOUNT LINK TO FRAME & BELLCRANKSN: A78001 --UP | 4 | Request quote | |||
| 22 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 23 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 16 | BELLCRANK, FRAME END - L.H.SN: A78001 --UP | 1 | Request quote | |||
| 17 | SHIM 1.5MMSN: A78001 --UP | - | Request quote | |||
| 18 | BELLCRANK, FRAME END - R.H.SN: A78001 --UP | 1 | Request quote | |||
| 19 | SHIM 1.5MMSN: A78001 --UP | - | Request quote | |||
| 28 | SHIM 3.0MMSN: A78001 --UP | - | Request quote | |||
| 20 | PINLOCK, BELLCRANK TO LIFT ARM-FRAME ENDSN: A78001 --UP | 2 | Request quote | |||
| 30 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 31 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 21 | CYLINDER, R.H. TILTSN: A78001 --UP | 1 | Request quote | |||
| 21 | CYLINDER, L.H. TILTSN: A78001 --UP | 1 | Request quote | |||
| 22 | PINLOCK DUMP CYLINDER TO BELLCRANKSN: A78001 --UP | 2 | Request quote | |||
| 35 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 36 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 23 | PINLOCK, DUMP CYLINDER TO LINK ASSEMBLYSN: A78001 --UP | 2 | View product ↗ | |||
| 38 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 39 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 40 | LINK ASSEMBLYSN: A78001 --UP | 2 | Request quote | |||
| 24 | LINKSN: A78001 --UP | 1 | Request quote | |||
| 25 | BUSHING (END)SN: A78001 --UP | 4 | View product ↗ | |||
| 26 | SEAL, DUST (END)SN: A78001 --UP | 8 | View product ↗ | |||
| 27 | BUSHING (CENTER)SN: A78001 --UP | 2 | View product ↗ | |||
| 28 | SEAL, DUST (CENTER)SN: A78001 --UP | 4 | View product ↗ | |||
| 29 | SHIM 1.5MMSN: A78001 --UP | - | Request quote | |||
| 47 | SHIM 3.0MMSN: A78001 --UP | - | Request quote | |||
| 30 | PINLOCK, LINK TO LEVERSN: A78001 --UP | 2 | Request quote | |||
| 31 | PLATE, PINLOCKSN: A78001 --UP | 2 | Request quote | |||
| 50 | BOLT, PINLOCK PLATESN: A78001 --UP | 2 | Request quote | |||
| 51 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 32 | PINLOCK, LINK TO TOOL CARRIERSN: A78001 --UP | 2 | View product ↗ | |||
| 53 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 54 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 33 | SHIM 1.5MMSN: A78001 --UP | - | Request quote | |||
| 34 | LEVER, W/O WHIRL STOP (LIFT ARM INSIDE)SN: A78001 --UP | 2 | Request quote | |||
| 35 | LEVER, W WHIRL STOP (LIFT ARM OUTSIDE)SN: A78001 --UP | 2 | Request quote | |||
| 36 | PINLOCK, LEVER TO LIFT ARMSN: A78001 --UP | 2 | Request quote | |||
| 37 | PLATE, PINLOCKSN: A78001 --UP | 2 | Request quote | |||
| 60 | BOLT, PINLOCKSN: A78001 --UP | 2 | Request quote | |||
| 61 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 38 | FRAME, TOOL CARRIERSN: A78001 --UP | 1 | Request quote | |||
| 39 | PINLOCK, LIFT ARM TO TOOL CARRIERSN: A78001 --UP | 2 | View product ↗ | |||
| 64 | BOLT, PINLOCKSN: A78001 --UP | 2 | View product ↗ | |||
| 65 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 40 | SHIM. 1.5MMSN: A78001 --UP | - | Request quote | |||
| 67 | SHIM, 3.0MMSN: A78001 --UP | - | Request quote | |||
| 41 | FITTING, GREASESN: A78001 --UP | 14 | View product ↗ | |||
| 42 | FITTING, GREASESN: A78001 --UP | 10 | View product ↗ | |||
| 43 | PINSN: A78001 --UP | 2 | Request quote | |||
| 71 | BOLTSN: A78001 --UP | 2 | View product ↗ | |||
| 72 | WASHERSN: A78001 --UP | 2 | View product ↗ | |||
| 44 | SHIMSN: A78001 --UP | - | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
CYLINDER, LIFT (SEE FIG. T4140-01A0)
Using Komatsu WA250PT-3MC Wheel Loader Lift Arm Parallel Lift Linkage Parts
Use the Komatsu WA250PT-3MC Wheel Loader Lift Arm Parallel Lift Linkage Parts listing to identify aftermarket replacement parts within the work equipment section. This wheel loader application is listed for machine serial A78001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 73 listed part occurrences, including arm assembly, lift (reference 418-T80-A100), arm, lift (reference NSS) and bushing (reference 417-70-11860). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For work-equipment parts, check the attachment configuration and any boom, arm, bucket or lift arrangement named in the assembly. Keep capacity, length and left/right distinctions wherever the source provides them.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
