Komatsu WA250PT-5 Cylinder Head Gasket Kit(#26302312-) Parts
Komatsu WA250PT-5 cylinder head gasket kit(#26302312-) parts for machine serial 70001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: SAA6D102E-2BB-8 S/N 26274903-UP / Engine / Cylinder Head Gasket Kit(#26302312-).
Checking current purchase options...

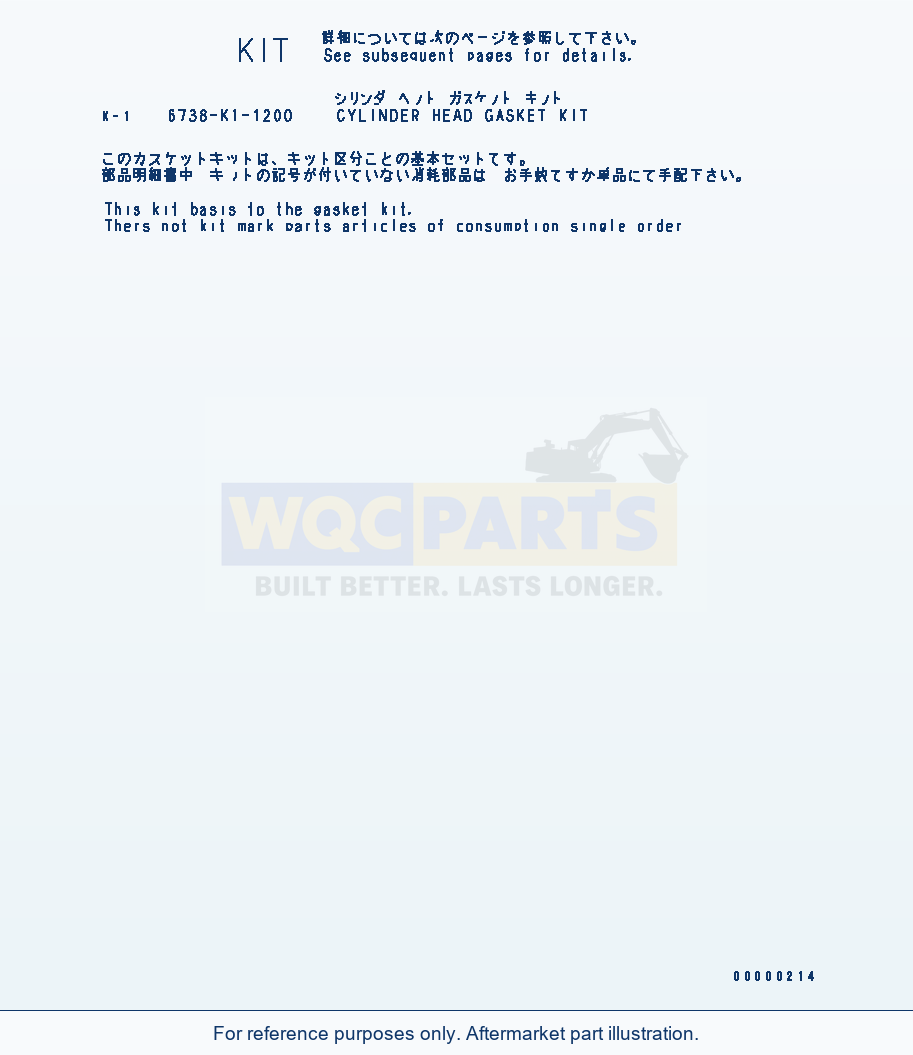

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 23 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | GASKET KIT,CYLINDER HEADSN: 26302312-UP | 1 | Request quote | |||
| 1 | GASKET,AIR INTAKE HEATERSN: 26302312-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 1 | SEAL, WASHER,AIR TUBESN: 26302312-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 1 | SEAL, WASHER,AIR TUBESN: 26302312-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 1 | SEAL, WASHER,FUEL TUBE (FILTER)SN: 26302312-UP, KIT-FLAG: S | 4 | View product ↗ | |||
| 1 | SEAL, WASHER,FUEL TUBE (INJECTION PUMP)SN: 26302312-UP | 8 | View product ↗ | |||
| 1 | GASKET,INJECTOR - SPILLSN: 26302312-UP, KIT-FLAG: S | 12 | View product ↗ | |||
| 1 | O-RING,TURBOCHARGER CONNECTORSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | GASKET,INTAKE MANIFOLD COVERSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | SEAL,INJECTORSN: 26302312-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 1 | SEAL,INJECTOR SHIMSN: 26302312-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 1 | GASKET,TURBOCHARGER GASKETSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | SEAL,VALVE STEMSN: 26302312-UP, KIT-FLAG: S | 12 | View product ↗ | |||
| 1 | GASKET,CYLINDER HEADSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | GASKET,EXHAUST MANIFOLDSN: 26302312-UP | 6 | Request quote | |||
| 1 | SEAL,THERMOSTATSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | GASKET,THERMOSTATSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | GASKET,TURBOCHARGER OIL DRAINSN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | O-RING,TURBOCHARGER OIL SUPPLY NIPPLESN: 26302312-UP, KIT-FLAG: S | 2 | View product ↗ | |||
| 1 | O-RING,TURBOCHARGER OIL SUPPLY TUBESN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ | |||
| 1 | GASKET,HEAD COVERSN: 26302312-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 1 | GASKET,CAMFOLLOWER COVER BOLTSN: 26302312-UP, KIT-FLAG: S | 6 | View product ↗ | |||
| 1 | CLAMP,TURBOCHARGER OUTLET PIPESN: 26302312-UP, KIT-FLAG: S | 1 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250PT-5 Cylinder Head Gasket Kit(#26302312-) Parts
Use the Komatsu WA250PT-5 Cylinder Head Gasket Kit(#26302312-) Parts listing to identify aftermarket replacement parts within the engine section. This wheel loader application is listed for machine serial 70001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 23 listed part occurrences, including gasket kit,cylinder head (reference 6738-K1-1200), gasket,air intake heater (reference 6732-11-4811) and gasket,injector - spill (reference 6732-71-6260). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
The source engine application is SAA6D102E-2BB-8 (engine serial 26274903-UP). Match that engine identification as well as the machine serial range; the general machine model is not a substitute for engine-specific applicability.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
