Komatsu WA250PT-5 Step (For 17.5-25-16L2 Tire)(#70001-70736) Parts
Komatsu WA250PT-5 step (for 17.5-25-16l2 tire)(#70001-70736) parts for machine serial 70001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Fuel Tank And Related Parts / Step (For 17.5-25-16L2 Tire)(#70001-70736).
Checking current purchase options...

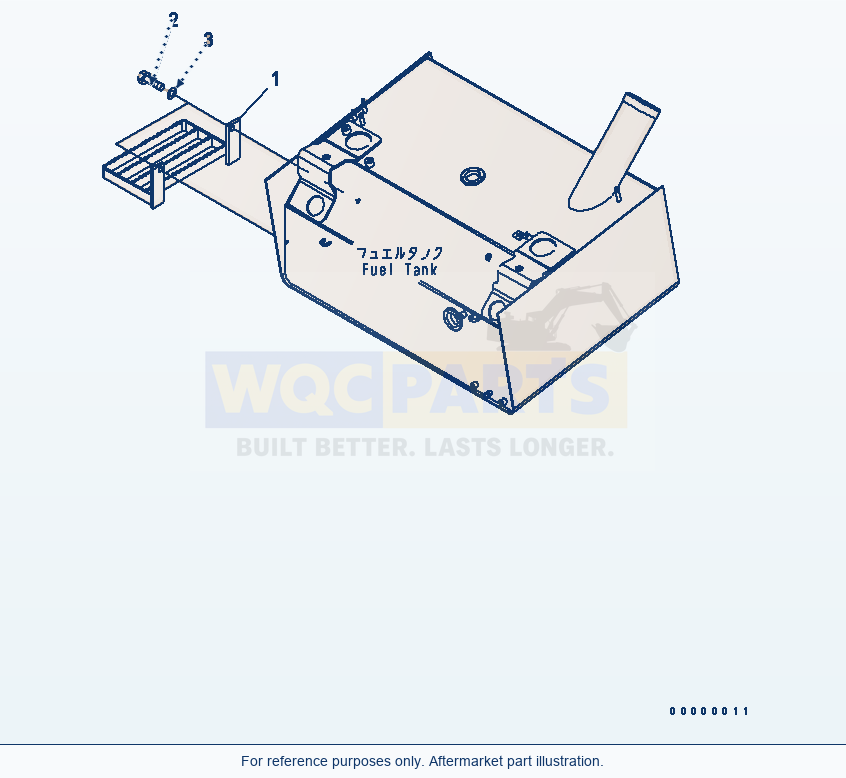

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 3 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | STEPSN: 70001-70736 | 1 | Request quote | |||
| 2 | BOLTSN: 70001-70736 | 2 | Request quote | |||
| 3 | WASHERSN: 70001-70736 | 2 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250PT-5 Step (For 17.5-25-16L2 Tire)(#70001-70736) Parts
Use the Komatsu WA250PT-5 Step (For 17.5-25-16L2 Tire)(#70001-70736) Parts listing to identify aftermarket replacement parts within the fuel tank and related parts section. This wheel loader application is listed for machine serial 70001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 3 listed part occurrences, including step (reference 417-04-31180), bolt (reference 01010-81225) and washer (reference 01643-31232). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Distinguish engine fuel-system parts from machine-side fuel equipment. Match the selected assembly, serial applicability and listed connections before choosing a replacement component.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
