Komatsu WA250PT-5 Rops Cab (Door L.H.)(#70579-72749) Parts
Komatsu WA250PT-5 rops cab (door l.h.)(#70579-72749) parts for machine serial 70001-UP (PARALLEL LINKAGE SPEC.). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Operator'S Compartment And Control System / Rops Cab (Door L.H.)(#70579-72749).
Checking current purchase options...

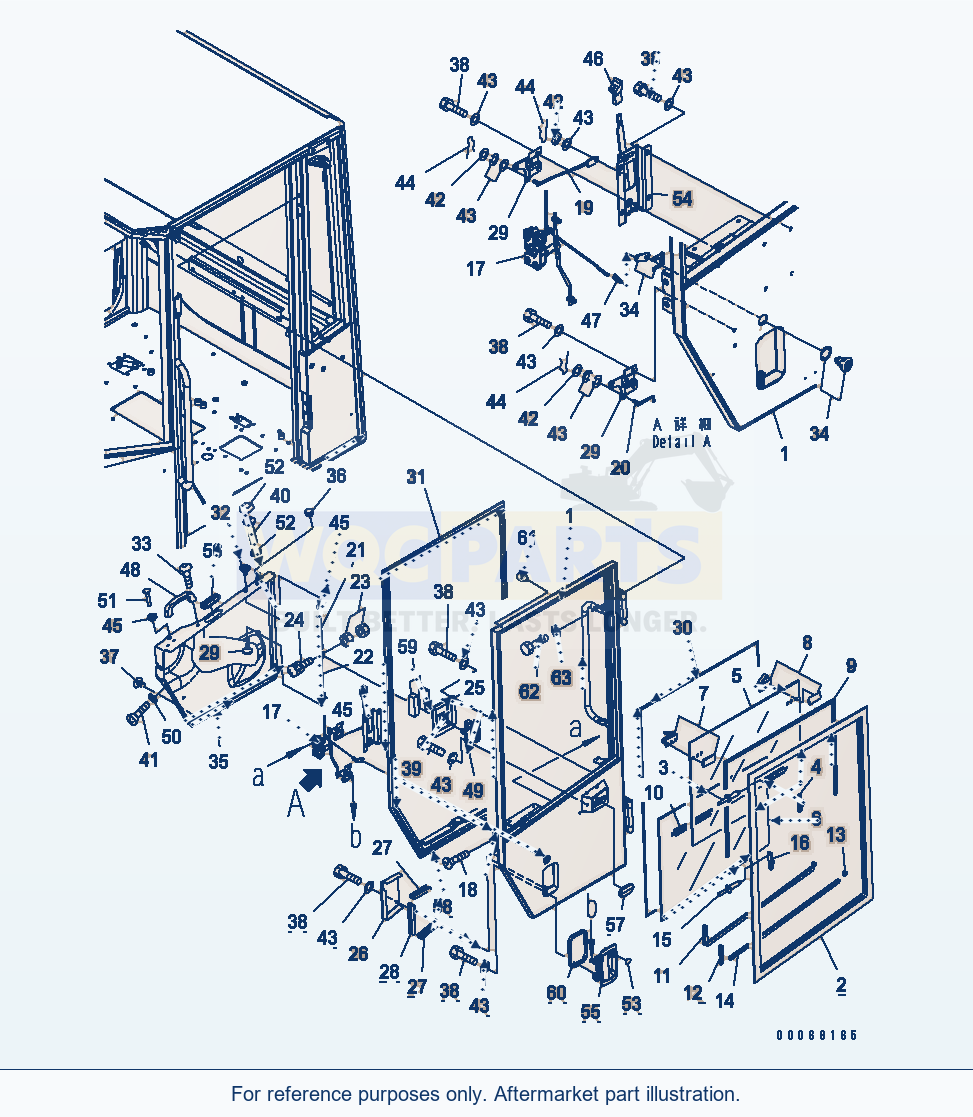

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 83 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 3 | CAB ASS'YSN: 70958-@ | 1 | Request quote | |||
| 4 | CAB ASS'YSN: 70001-70957 | 1 | Request quote | |||
| 8 | DOOR ASS'YSN: 72744-UP | 1 | Request quote | |||
| 9 | DOOR ASS'YSN: 70958-72743 | The part specified in the line above can be used instead of this part | 1 | Request quote | |||
| 10 | DOOR ASS'YSN: 70001-70957 | 1 | Request quote | |||
| 2 | SASH ASS'Y,L.H.SN: 70958-@ | 1 | Request quote | |||
| 2 | SASH ASS'Y,L.H.SN: 70001-70957 | 1 | Request quote | |||
| 2 | FRAMESN: 70001-72749 | 1 | Request quote | |||
| 3 | RIVETSN: 70001-72749 | 8 | Request quote | |||
| 3 | CATCHSN: 72750-UP | 1 | Request quote | |||
| 4 | CATCHSN: 72750-UP | 1 | Request quote | |||
| 4 | CATCHSN: 70001-72749 | 4 | Request quote | |||
| 5 | GLASSSN: 72750-UP | 1 | Request quote | |||
| 5 | GLASSSN: 70001-72749 | 1 | Request quote | |||
| 6 | GLASSSN: 72750-UP | 1 | Request quote | |||
| 6 | GLASSSN: 70001-72749 | 1 | Request quote | |||
| 7 | LOCK ASS'YSN: 70001-UP | 1 | Request quote | |||
| 8 | LOCK ASS'YSN: 70001-UP | 1 | Request quote | |||
| 9 | CHANNELSN: 72750-UP | 1 | Request quote | |||
| 9 | CHANNELSN: 70001-72749 | 1 | Request quote | |||
| 10 | CHANNELSN: 72750-UP | 1 | Request quote | |||
| 10 | CHANNELSN: 70001-72749 | 1 | Request quote | |||
| 11 | RUBBERSN: 72750-UP | 1 | Request quote | |||
| 11 | RUBBERSN: 70001-72749 | 1 | Request quote | |||
| 12 | RUBBERSN: 72750-UP | 1 | Request quote | |||
| 12 | STOPPERSN: 70001-72749 | 1 | Request quote | |||
| 13 | RUBBERSN: 72750-UP | 1 | Request quote | |||
| 13 | STOPPERSN: 70001-72749 | 1 | Request quote | |||
| 14 | RUBBERSN: 72750-UP | 1 | Request quote | |||
| 14 | STOPPERSN: 70001-72749 | 1 | Request quote | |||
| 14 | RUBBERSN: 72750-UP | 2 | Request quote | |||
| 15 | RIVETSN: 72750-UP | 8 | Request quote | |||
| 15 | RIVETSN: 70001-72749 | 4 | Request quote | |||
| 16 | CATCHSN: 72750-UP | 4 | Request quote | |||
| 16 | CATCHSN: 70001-72749 | 2 | Request quote | |||
| 17 | LOCKSN: 70441-UP | 1 | Request quote | |||
| 18 | SCREWSN: 70001-UP | 3 | Request quote | |||
| 19 | RODSN: 70001-UP | 1 | Request quote | |||
| 20 | ROD,L.H.SN: 70001-UP | 1 | Request quote | |||
| 21 | RODSN: 70579-UP | 1 | Request quote | |||
| 22 | RODSN: 70579-UP | 1 | Request quote | |||
| 23 | NUTSN: 70579-UP | 2 | Request quote | |||
| 24 | SCREWSN: 70579-UP | 1 | Request quote | |||
| 25 | COVERSN: 70001-UP | 1 | Request quote | |||
| 26 | COVER,L.H.SN: 70001-UP | 1 | Request quote | |||
| 27 | SEALSN: 70001-UP | 2 | Request quote | |||
| 28 | SEALSN: 70001-UP | 1 | Request quote | |||
| 29 | LINK ASS'Y,L.H.SN: 70001-UP | 2 | Request quote | |||
| 30 | DAMSN: 70001-UP | 1 | Request quote | |||
| 31 | SEALSN: 70067-UP | 1 | Request quote | |||
| 32 | KNOBSN: 70001-UP | 2 | Request quote | |||
| 33 | SCREWSN: 70001-UP | 2 | Request quote | |||
| 34 | LOCK ASS'Y,L.H.SN: 70001-UP | 1 | Request quote | |||
| 35 | COVER,L.H.SN: 70001-UP | 1 | Request quote | |||
| 36 | CAPSN: 70001-UP | 1 | Request quote | |||
| 37 | BUTTONSN: 70001-UP | 2 | Request quote | |||
| 38 | BOLTSN: 70001-UP | 16 | View product ↗ | |||
| 39 | BOLTSN: 70001-UP | 4 | Request quote | |||
| 40 | SCREWSN: 70001-UP | 2 | Request quote | |||
| 41 | SCREWSN: 70001-UP | 5 | Request quote | |||
| 42 | WASHERSN: 70001-UP | 3 | View product ↗ | |||
| 43 | WASHERSN: 70001-UP | 25 | View product ↗ | |||
| 44 | PINSN: 70001-UP | 3 | View product ↗ | |||
| 45 | GROMMETSN: 70441-UP | 3 | View product ↗ | |||
| 46 | KNOBSN: 70001-UP | 1 | Request quote | |||
| 47 | SNAPSN: 70001-UP | 1 | Request quote | |||
| 48 | HANDLESN: 70001-UP | 1 | Request quote | |||
| 49 | LOCKSN: 70001-UP | 1 | Request quote | |||
| 50 | WASHERSN: 70001-UP | 5 | Request quote | |||
| 51 | KNOBSN: 70441-UP | 1 | Request quote | |||
| 52 | CAP ASS'YSN: 70001-UP | 2 | Request quote | |||
| 53 | CAPSN: 70001-UP | 1 | Request quote | |||
| 54 | HANDLESN: 70001-UP | 1 | Request quote | |||
| 55 | HANDLESN: 70001-UP | 1 | Request quote | |||
| 55 | HANDLESN: (70001-72749) | This shows a discontinued part. The part specified in the above line is supplied instead. | 1 | Request quote | |||
| 56 | GROMMETSN: 70001-UP | 1 | Request quote | |||
| 57 | GROMMETSN: 70001-UP | 1 | Request quote | |||
| 58 | SHEETSN: 70001-UP | 1 | Request quote | |||
| 59 | SHEETSN: 70001-70957 | 2 | Request quote | |||
| 60 | SEALSN: 70001-UP | 1 | Request quote | |||
| 61 | STOPPERSN: 70067-UP | 1 | Request quote | |||
| 62 | BOLTSN: 70001-UP | 6 | Request quote | |||
| 63 | WASHERSN: 70001-UP | 6 | View product ↗ |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-51A0 TO K0210-58A0.
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: DOOR,L.H. | QTY: 1 | OPTIONS: SN: 70067-@
Using Komatsu WA250PT-5 Rops Cab (Door L.H.)(#70579-72749) Parts
Use the Komatsu WA250PT-5 Rops Cab (Door L.H.)(#70579-72749) Parts listing to identify aftermarket replacement parts within the operator's compartment and control system section. This wheel loader application is listed for machine serial 70001-UP (PARALLEL LINKAGE SPEC.); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 83 listed part occurrences, including cab ass'y (reference 418-926-3504), cab ass'y (reference 418-926-3502) and door ass'y (reference 417-926-3106). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For operator-compartment and control parts, compare the cab arrangement and equipment options identified on the assembly page. Retain any handedness and connection details when selecting a part or requesting assistance.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
