Komatsu WA250PT-5L Hood (Door) (For Rear Full Fender) Parts
Komatsu WA250PT-5L hood (door) (for rear full fender) parts for machine serial A79001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Guard / Hood (Door) (For Rear Full Fender).
Checking current purchase options...

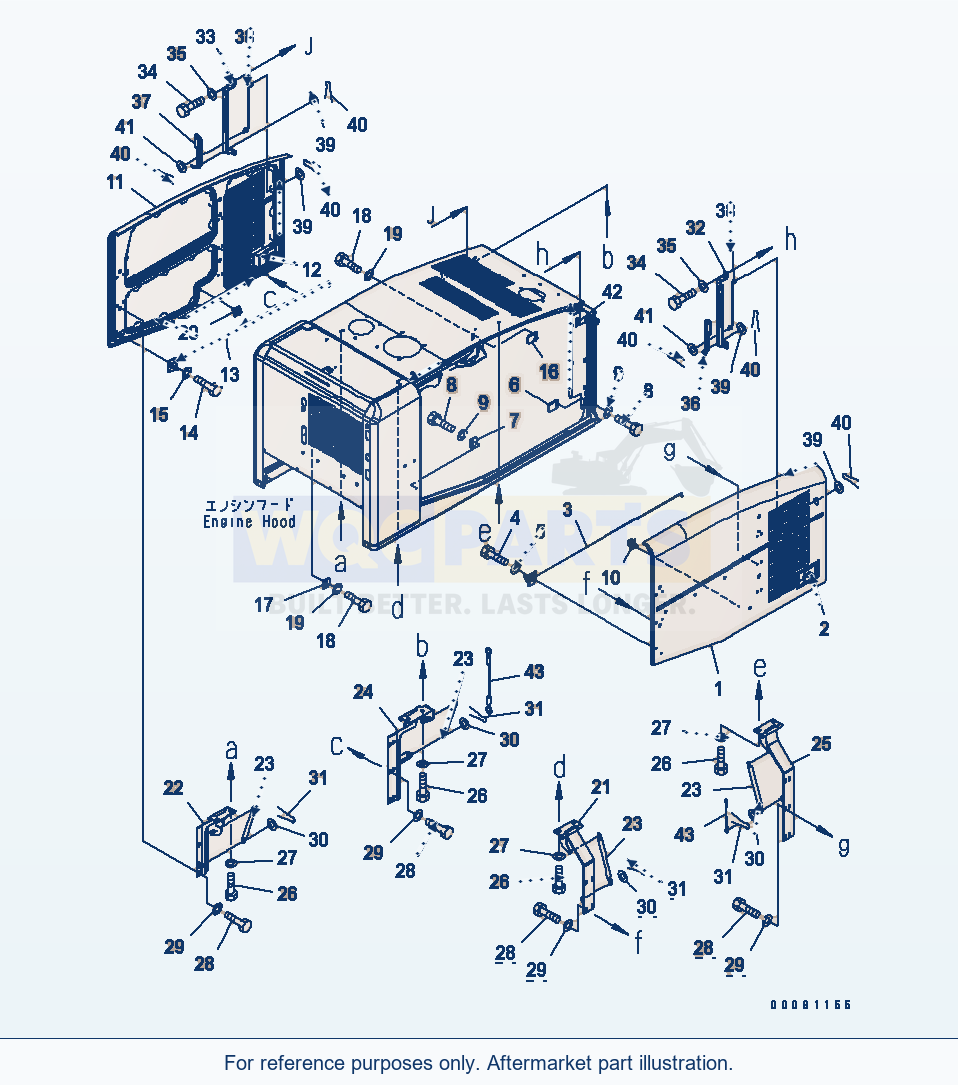

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 43 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | DOOR,L.H.SN: A79001-UP | 1 | Request quote | |||
| 2 | LOCK ASS'YSN: A79001-UP | 1 | Request quote | |||
| 3 | LATCH ASS'YSN: A79001-UP | 1 | Request quote | |||
| 4 | BOLTSN: A79001-UP | 2 | Request quote | |||
| 5 | WASHERSN: A79001-UP | 2 | View product ↗ | |||
| 6 | PLATESN: A79001-UP | 1 | Request quote | |||
| 7 | PLATESN: A79001-UP | 1 | Request quote | |||
| 8 | BOLTSN: A79001-UP | 4 | Request quote | |||
| 9 | WASHERSN: A79001-UP | 4 | View product ↗ | |||
| 10 | HOLDERSN: A79001-UP | 1 | Request quote | |||
| 11 | DOOR,R.H.SN: A79001-UP | 1 | Request quote | |||
| 12 | LOCK ASS'YSN: A79001-UP | 1 | Request quote | |||
| 13 | LATCH ASS'YSN: A79001-UP | 1 | Request quote | |||
| 14 | BOLTSN: A79001-UP | 2 | Request quote | |||
| 15 | WASHERSN: A79001-UP | 2 | View product ↗ | |||
| 16 | PLATESN: A79001-UP | 1 | Request quote | |||
| 17 | PLATESN: A79001-UP | 1 | Request quote | |||
| 18 | BOLTSN: A79001-UP | 4 | Request quote | |||
| 19 | WASHERSN: A79001-UP | 4 | View product ↗ | |||
| 20 | HOLDERSN: A79001-UP | 1 | Request quote | |||
| 21 | HINGESN: A79001-UP | 1 | Request quote | |||
| 22 | HINGESN: A79001-UP | 1 | Request quote | |||
| 23 | GAS SPRINGSN: A79001-UP | 4 | Request quote | |||
| 24 | HINGESN: A79001-UP | 1 | Request quote | |||
| 25 | HINGESN: A79001-UP | 1 | Request quote | |||
| 26 | BOLTSN: A79001-UP | 8 | Request quote | |||
| 27 | WASHERSN: A79001-UP | 8 | View product ↗ | |||
| 28 | BOLTSN: A79001-UP | 20 | Request quote | |||
| 29 | WASHERSN: A79001-UP | 20 | View product ↗ | |||
| 30 | WASHERSN: A79001-UP | 8 | Request quote | |||
| 31 | PINSN: A79001-UP | 8 | Request quote | |||
| 32 | BRACKETSN: A79001-UP | 1 | Request quote | |||
| 33 | BRACKETSN: A79001-UP | 1 | Request quote | |||
| 34 | BOLTSN: A79001-UP | 4 | Request quote | |||
| 35 | WASHERSN: A79001-UP | 4 | View product ↗ | |||
| 36 | BRACKETSN: A79001-UP | 1 | Request quote | |||
| 37 | BRACKETSN: A79001-UP | 1 | Request quote | |||
| 38 | RODSN: A79001-UP | 2 | Request quote | |||
| 39 | WASHERSN: A79001-UP | 4 | View product ↗ | |||
| 40 | PINSN: A79001-UP | 6 | Request quote | |||
| 41 | WASHERSN: A79001-UP | 2 | Request quote | |||
| 42 | PLATE, OPERATING,LOCK LEVERSN: A79001-UP | 2 | Request quote | |||
| 43 | WIRESN: A79001-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250PT-5L Hood (Door) (For Rear Full Fender) Parts
Use the Komatsu WA250PT-5L Hood (Door) (For Rear Full Fender) Parts listing to identify aftermarket replacement parts within the guard section. This wheel loader application is listed for machine serial A79001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 43 listed part occurrences, including door,l.h. (reference 418-54-34712), lock ass'y (reference 421-54-31740) and latch ass'y (reference 418-54-31493). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
