Komatsu WA250PT-5L Wheel Loader Decal (Floor) Parts
Komatsu WA250PT-5L decal (floor) parts for machine serial A79001-UP. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Decal (Floor).
Checking current purchase options...

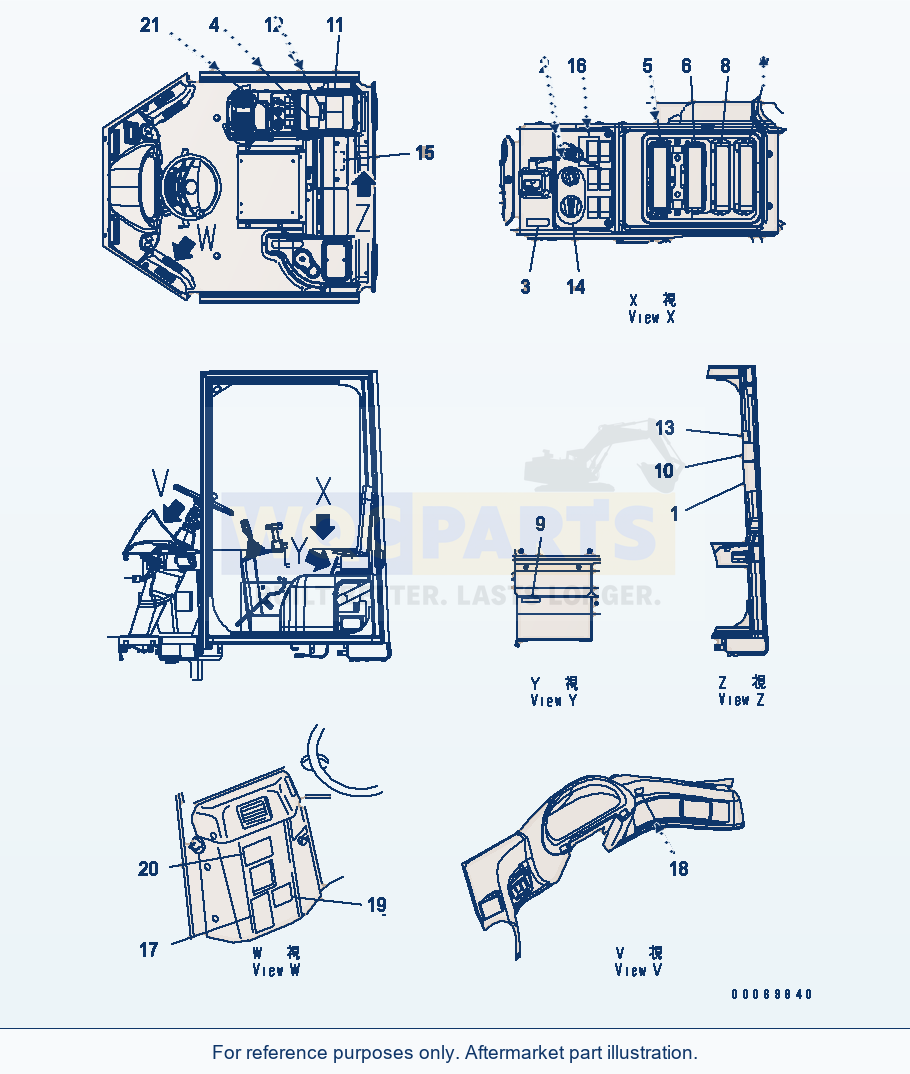

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 21 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 0 | PLATE,(ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 1 | SHEET,(FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 10 | PLATE, SAFETY,INSTRUCTION (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 12 | PLATE, SAFETY,INSTRUCTION (FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 11 | PLATE, SAFETY,MOVEMENT (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 14 | PLATE, SAFETY,MOVEMENT (FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 12 | PLATE, SAFETY,ELECTRIC SHOCK (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 16 | DECAL,ELECTRIC SHOCK (FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 13 | PLATE,BACK-UP ALARM (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 18 | PLATE,BACK-UP ALARM (FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 14 | PLATE,VARIABLE SHIFT CONTROL (ENGLISSN: A79001-UP | 1 | Request quote | |||
| 20 | PLATE,VARIABLE SHIFT CONTROL (FRENCHSN: A79001-UP | - | Request quote | |||
| 15 | PLATE,RELAY I.D. (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 22 | PLATE,RELAY I.D. (FRENCH)SN: A79001-UP | 1 | Request quote | |||
| 16 | DECAL,TRACTION CONTROLSN: A79001-UP | 1 | Request quote | |||
| 17 | PLATE,JRB COUPLERSN: A79001-UP | 1 | Request quote | |||
| 18 | PLATE,JRB COUPLERSN: A79001-UP | 1 | Request quote | |||
| 19 | PLATE,JRB COUPLER, LOCKSN: A79001-UP | 1 | Request quote | |||
| 20 | PLATE,JRB COUPLER, LOCK CHECKSN: A79001-UP | 1 | Request quote | |||
| 21 | PLATE,FNR DIRECTIONAL (ENGLISH)SN: A79001-UP | 1 | Request quote | |||
| 30 | PLATE,FNR DIRECTIONAL (FRENCH)SN: A79001-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 1 | Description: PLATE | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: PLATE,MAIN SWITCH | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: PLATE,LEVER LOCK | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: PLATE,WORK EQUIPMENT PATTERN | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: PLATE,RELAY | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: PLATE,RELAY | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: PLATE,FUSE | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: PLATE,FUSE | QTY: 1 | OPTIONS: SN: A79001-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: PLATE,AIR CONDITIONER FILTER | QTY: 1 | OPTIONS: SN: A79001-UP
Using Komatsu WA250PT-5L Wheel Loader Decal (Floor) Parts
Use the Komatsu WA250PT-5L Wheel Loader Decal (Floor) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial A79001-UP; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 21 listed part occurrences, including plate,(english) (reference 418-93-22273), sheet,(french) (reference 418-933-A280) and plate, safety,instruction (english) (reference 09651-03001). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
