Komatsu WA250PZ-6 Wheel Loader Breather And Hose(Esn 26506237-) Parts
Komatsu WA250PZ-6 breather and hose(esn 26506237-) parts for machine serial 75160 - 75467. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Breather And Hose(Esn 26506237-).
Checking current purchase options...

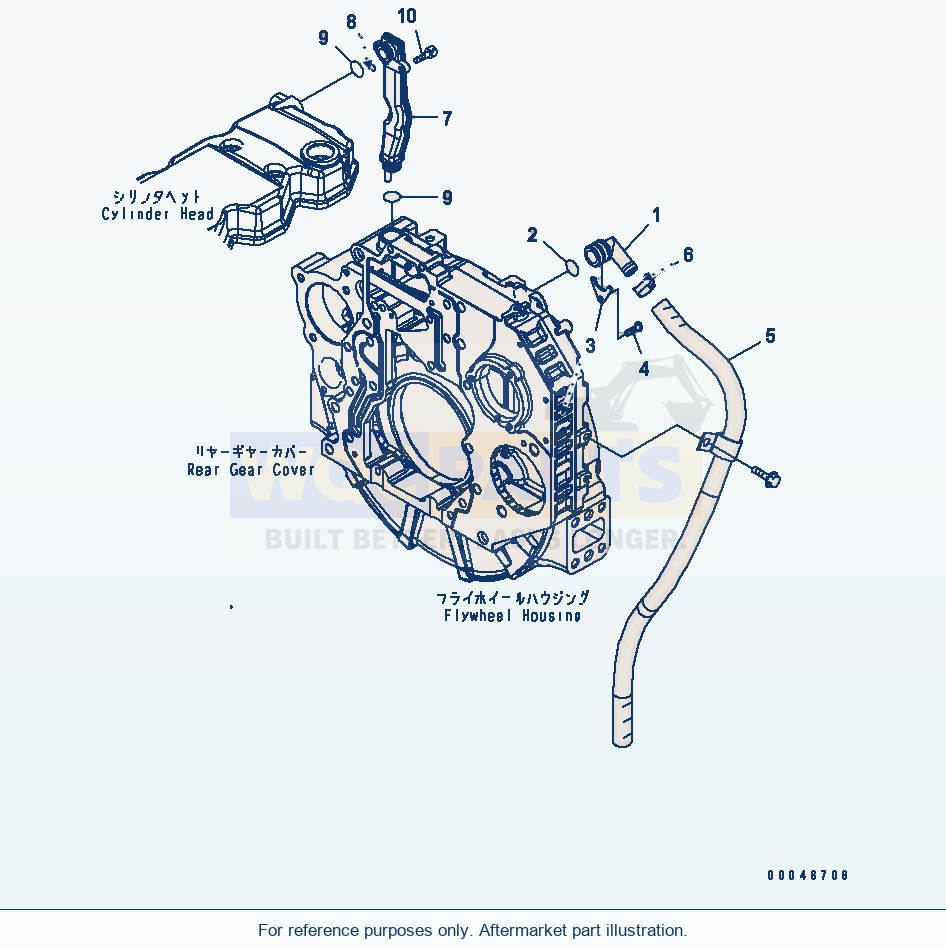

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 10 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | BREATHERSN: 26506237-UP | 1 | Request quote | |||
| 2 | O-RINGSN: 26506237-UP | 1 | View product ↗ | |||
| 3 | PLATESN: 26506237-UP | 1 | Request quote | |||
| 4 | BOLTSN: 26506237-UP | 1 | Request quote | |||
| 5 | HOSESN: 26506237-UP | 1 | Request quote | |||
| 6 | CLAMPSN: 26506237-UP | 1 | Request quote | |||
| 7 | TUBE ASSEMBLYSN: 26506237-UP | 1 | Request quote | |||
| 8 | O-RINGSN: 26506237-UP | 1 | View product ↗ | |||
| 9 | O-RINGSN: 26506237-UP | 2 | View product ↗ | |||
| 10 | BOLTSN: 26506237-UP | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: TUBE | QTY: 1 | OPTIONS: SN: 26506237-UP
Using Komatsu WA250PZ-6 Wheel Loader Breather And Hose(Esn 26506237-) Parts
Use the Komatsu WA250PZ-6 Wheel Loader Breather And Hose(Esn 26506237-) Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial 75160 - 75467; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 10 listed part occurrences, including breather (reference 6754-21-6140), plate (reference 6754-21-6150) and hose (reference 6754-21-6170). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
