Komatsu WA250PZ-6 Cylinder Block Serial 75160 - 75467 Parts
Komatsu WA250PZ-6 cylinder block serial 75160 - 75467 parts for machine serial 75160 - 75467. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Aa Engine / Cylinder Block.
Checking current purchase options...

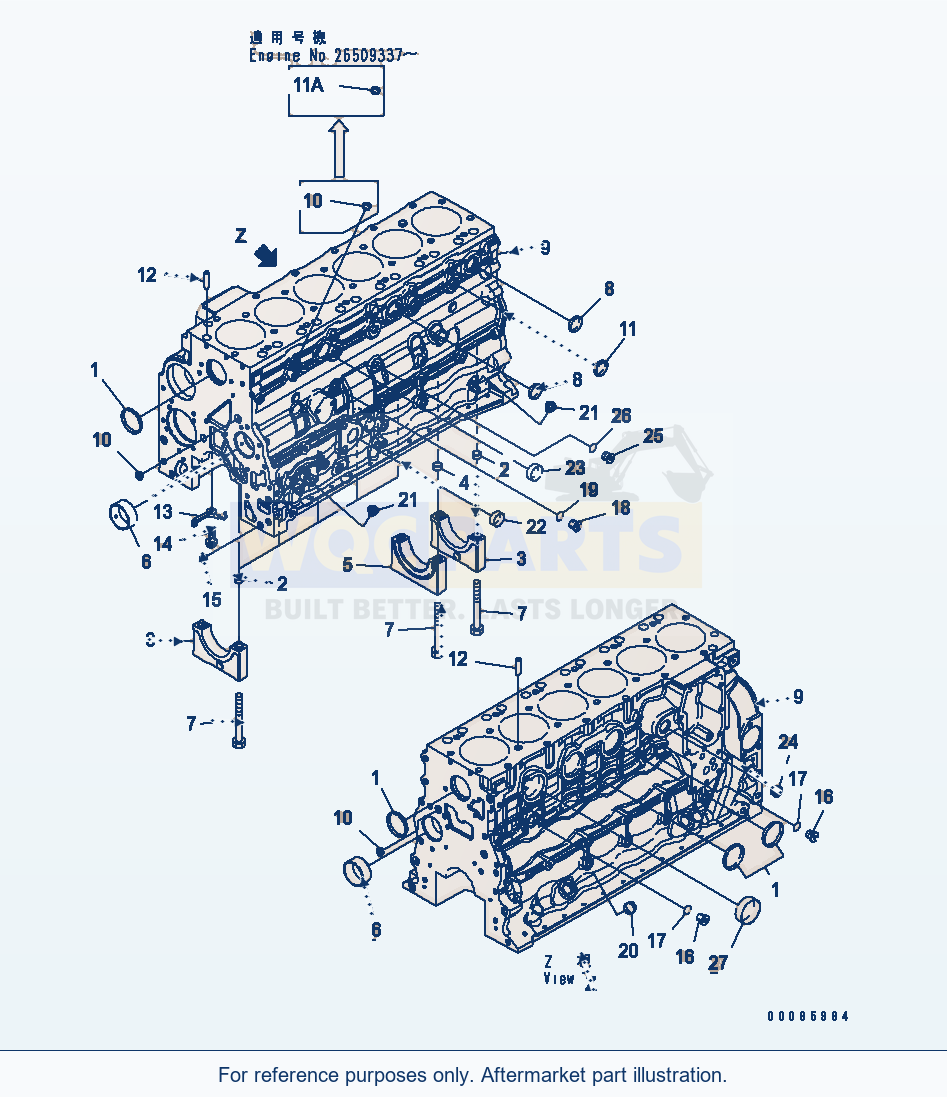

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 33 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | CYLINDER BLOCK ASSEMBLYSN: 26500006-UP | 1 | Request quote | |||
| 1 | PLUGSN: 26500006-UP | 4 | Request quote | |||
| 13 | CAP ASSEMBLYSN: 26500006-UP | This indicates a part supplied as semi-finished. It requires additional work before installation. | 6 | Request quote | |||
| 16 | CAP ASSEMBLYSN: 26500006-UP | This indicates a part supplied as semi-finished. It requires additional work before installation. | 1 | Request quote | |||
| 6 | BUSHINGSN: 26552778-UP | 2 | View product ↗ | |||
| 6 | BUSHINGSN: 26500006-26552777 | 2 | View product ↗ | |||
| 7 | BOLTSN: 26500006-UP | 14 | Request quote | |||
| 8 | PLUGSN: 26566754-UP | 3 | Request quote | |||
| 8 | PLUGSN: 26500006-26566753 | 2 | Request quote | |||
| 10 | PLUGSN: 26509337-UP | 2 | Request quote | |||
| 10 | PLUGSN: 26500006-26509336 | 3 | Request quote | |||
| 11 | PLUGSN: 26500006-UP | 3 | Request quote | |||
| 11A | PLUGSN: 26509337-UP | 1 | Request quote | |||
| 35 | BLOCK KITSN: 26500006-UP | 1 | Request quote | |||
| 12 | RINGSN: 26500006-UP | 2 | View product ↗ | |||
| 13 | NOZZLESN: 26508992-UP | 6 | Request quote | |||
| 13 | NOZZLESN: 26500006-26508991 | The part specified in the line above can be used instead of this part | 6 | Request quote | |||
| 14 | BOLTSN: 26500006-UP | 6 | Request quote | |||
| 15 | RINGSN: 26500006-UP | 2 | Request quote | |||
| 41 | PLUG ASSEMBLYSN: 26500006-UP | 2 | Request quote | |||
| 16 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 17 | O-RINGSN: 26500006-UP | 1 | View product ↗ | |||
| 44 | PLUG ASSEMBLYSN: 26500006-UP | 1 | Request quote | |||
| 18 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 19 | O-RINGSN: 26500006-UP | 1 | View product ↗ | |||
| 20 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 21 | PLUGSN: 26500006-UP | 4 | Request quote | |||
| 22 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 23 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 24 | PLUGSN: 26500006-UP | 1 | Request quote | |||
| 52 | PLUG ASSEMBLYSN: 26500006-UP | 1 | Request quote | |||
| 26 | O-RINGSN: 26500006-UP | 1 | View product ↗ | |||
| 27 | PLUGSN: 26500006-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26552778-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26540867-26552777
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26505311-26540866
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26500427-26505310
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 6 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26500006-26500426
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 7 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26552778-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 8 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26540867-26552777
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26505311-26540866
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 10 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26500427-26505310
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 11 | Description: BLOCK ASSEMBLY | QTY: 1 | OPTIONS: SN: 26500006-26500426
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 2 | Description: RING | QTY: 2 | OPTIONS: SN: 26500006-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 3 | Description: CAP | QTY: 1 | OPTIONS: SN: 26500006-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 4 | Description: RING | QTY: 2 | OPTIONS: SN: 26500006-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 5 | Description: CAP | QTY: 1 | OPTIONS: SN: 26500006-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: BLOCK | QTY: 1 | OPTIONS: SN: 26552778-UP
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: BLOCK | QTY: 1 | OPTIONS: SN: 26505311-26552777
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: BLOCK | QTY: 1 | OPTIONS: SN: 26500427-26505310
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 9 | Description: BLOCK | QTY: 1 | OPTIONS: SN: 26500006-26500426
This part cannot be supplied as an individual part. It is supplied as an assembly. | Sort Order: 25 | Description: PLUG | QTY: 1 | OPTIONS: SN: 26500006-UP
Using Komatsu WA250PZ-6 Cylinder Block Serial 75160 - 75467 Parts
Use the Komatsu WA250PZ-6 Cylinder Block Serial 75160 - 75467 Parts listing to identify aftermarket replacement parts within the aa engine section. This wheel loader application is listed for machine serial 75160 - 75467; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 33 listed part occurrences, including cylinder block assembly (reference 6754-21-1310), plug (reference 6732-21-1831) and cap assembly (reference 6754-21-1220). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
Use the section and assembly descriptions together with the stated machine application. Preserve location, option and revision notes shown beside each part number when selecting a replacement or preparing a quote.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
