Komatsu WA250PZ-6 Front Working Lamp Serial 75160 - 75467 Parts
Komatsu WA250PZ-6 front working lamp serial 75160 - 75467 parts for machine serial 75160 - 75467. View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: E0 Electrical System / Front Working Lamp.
Checking current purchase options...

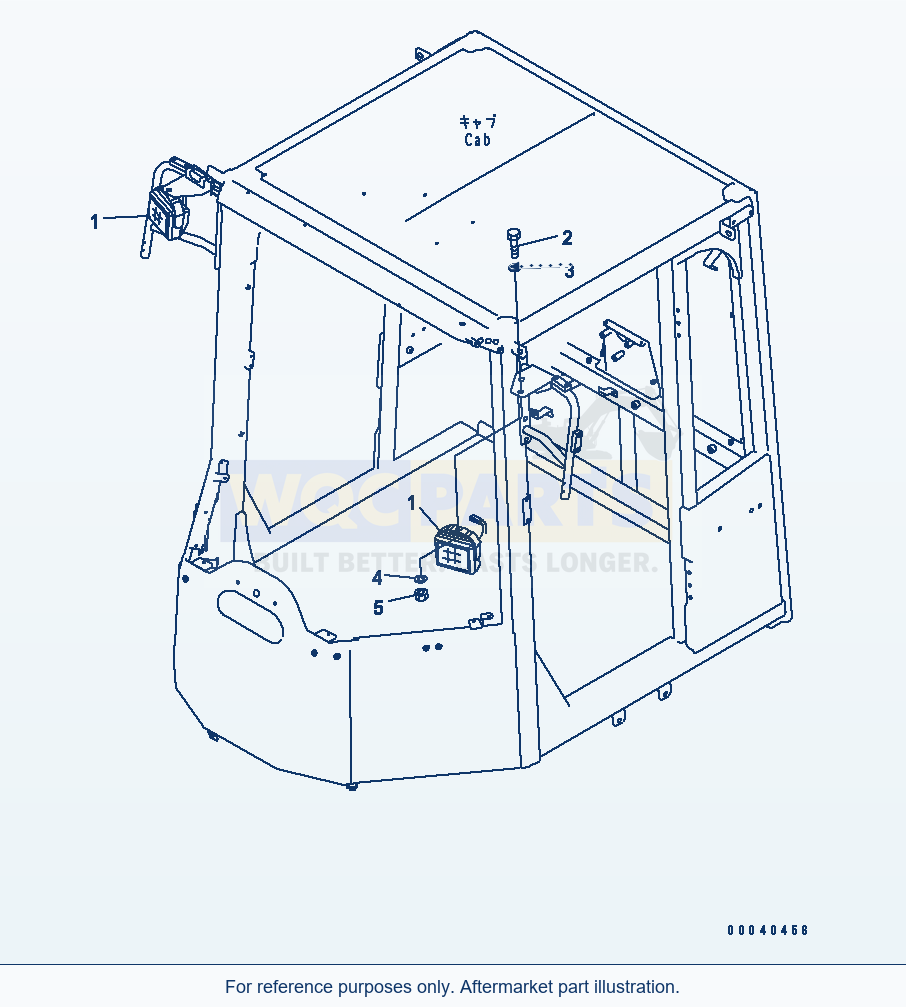

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 7 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | WORKING LAMP ASSEMBLYSN: 75160-75467 | 2 | Request quote | |||
| 2 | LENSSN: 75160-75467 | 1 | Request quote | |||
| 3 | BULB, 70WATTSN: 75160-75467 | 1 | Request quote | |||
| 2 | BOLTSN: 75160-75467 | 2 | Request quote | |||
| 3 | WASHERSN: 75160-75467 | 2 | View product ↗ | |||
| 4 | WASHERSN: 75160-75467 | 2 | View product ↗ | |||
| 5 | NUTSN: 75160-75467 | 2 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
Using Komatsu WA250PZ-6 Front Working Lamp Serial 75160 - 75467 Parts
Use the Komatsu WA250PZ-6 Front Working Lamp Serial 75160 - 75467 Parts listing to identify aftermarket replacement parts within the e0 electrical system section. This wheel loader application is listed for machine serial 75160 - 75467; the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 7 listed part occurrences, including working lamp assembly (reference 423-06-33130), lens (reference 421-06-23320) and bulb, 70watt (reference 421-06-23330). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For electrical parts, compare the component reference and any voltage, connector or equipment-option notes shown in the listing. A similar description or shape alone is not a compatibility check.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
