Komatsu WA250PZ-6 Marks And Plates, Interior (#75896-) Parts
Komatsu WA250PZ-6 marks and plates, interior (#75896-) parts for machine serial 75896-UP (FOR KAL (CHASSIS ONLY)). View this configuration's diagram, part numbers, quantities and options; shop or request a quote.
Catalog configuration: Marks And Plates / Marks And Plates / Marks And Plates, Interior (#75896-).
Checking current purchase options...

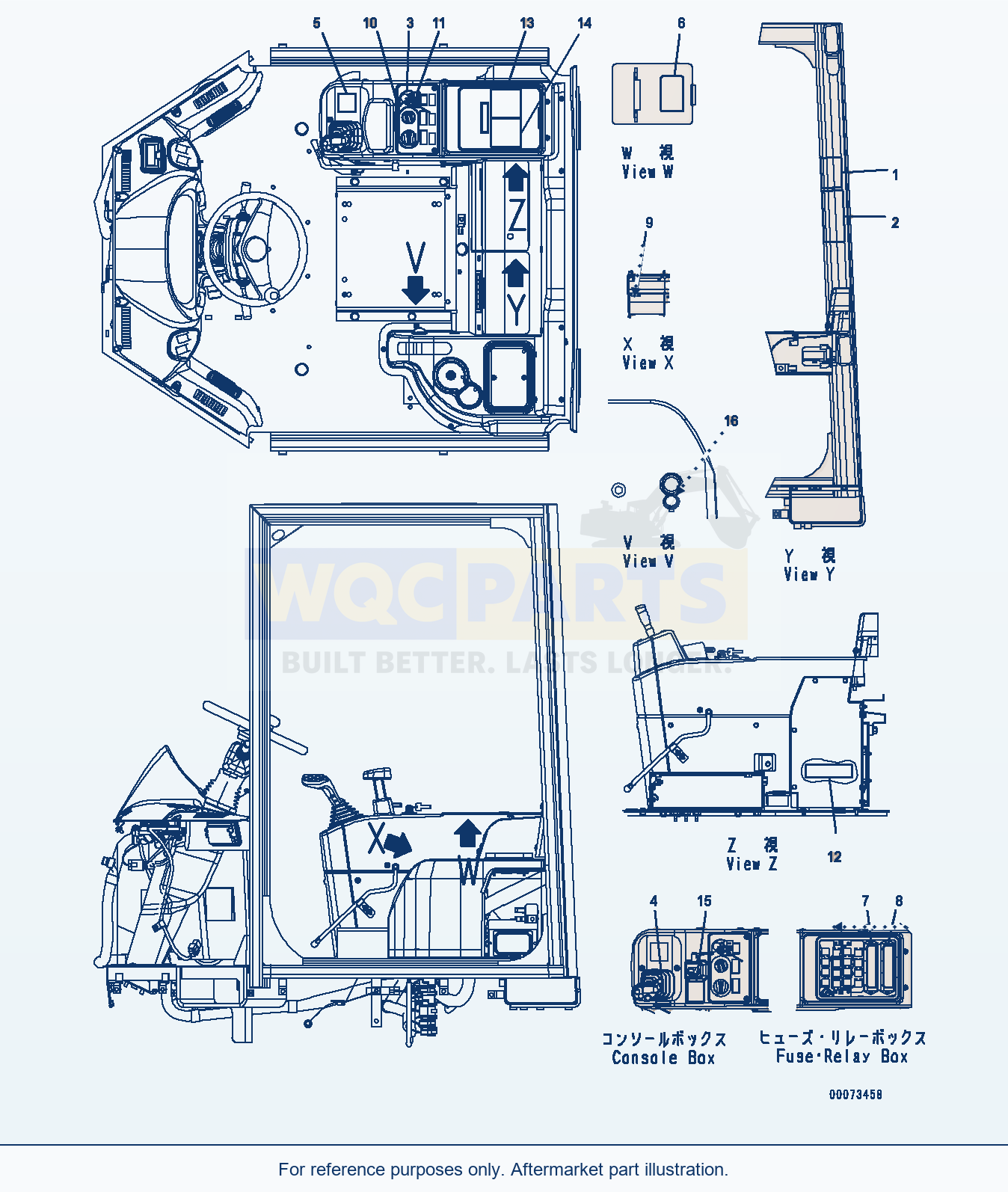

Aftermarket parts reference illustration · Click to enlarge. Actual supplied parts may differ.
Assembly parts
Showing all 9 part occurrences
Select any parts and adjust quantities. Store products go to your cart; parts without a store match go into a quote request. Each button handles only its matching selections.
| Line | Part number | Description | Qty | Order qty | Purchase options | |
|---|---|---|---|---|---|---|
| 1 | PLATE, WARNING, READ MANUAL BEFORE OPERATINGSN: 75896-UP | 1 | Request quote | |||
| 1 | PLATESN: 75896-UP | 1 | Request quote | |||
| 10 | PLATE, HST VARIABLE SHIFT CONTROL, HST SPEED CONTROLSN: 75896-UP | 1 | Request quote | |||
| 11 | DECAL, HST TRACTION CONTROL, TRACTION CONTROLSN: 75896-UP | 1 | Request quote | |||
| 12 | PLATE, CONSOLE R.H.SN: 75896-UP | 1 | Request quote | |||
| 13 | PLATE, WARNING, BEFORE LEAVING SEATSN: 75896-UP | 1 | Request quote | |||
| 14 | PLATE, DANGER, HIGH VOLTAGE HAZARDSN: 75896-UP | 1 | Request quote | |||
| 15 | DECAL, F-R SELECTOR SWITCHSN: 75896-UP | 1 | Request quote | |||
| 16 | PLATE, 12VOLT SOCKET, 12V SOCKETSN: 75896-UP | 1 | Request quote |
Repeated parts remain separate. Source order is retained; diagram callout mapping has not yet been verified.
Assembly notes
PLATE, WARNING, BEFORE OPERATING AND TRAVELING, STARTING
PLATE, MAIN SWITCH, MAIN SWITCH
PLATE, WARNING, WORK EQUIPMENT LOCK LEVER, LEVER LOCK
PLATE, WORK EQUIPMENT CONTROL LEVER PATTERN, WORK EQUIPMENT PATTERN
PLATE, RELAY, RELAY
PLATE, FUSE 1, FUSE
PLATE, FUSE 2, FUSE
PLATE, AIR CONDITIONER FILTER, AIR CONDITIONER FILTER
Using Komatsu WA250PZ-6 Marks And Plates, Interior (#75896-) Parts
Use the Komatsu WA250PZ-6 Marks And Plates, Interior (#75896-) Parts listing to identify aftermarket replacement parts within the marks and plates section. This wheel loader application is listed for machine serial 75896-UP (FOR KAL (CHASSIS ONLY)); the diagram and parts table retain the selected configuration and its source notes.
The parts table contains 9 listed part occurrences, including plate, warning, read manual before operating (reference 09651-03001), plate (reference 418-93-42271) and plate, hst variable shift control, hst speed control (reference 418-93-22311). Read any option and reference notes beside these entries before choosing a replacement; repeated references may represent separate positions in the source list.
For identification and caution plates, compare the precise plate description and listed application. Do not substitute a plate solely because its shape or mounting position looks similar.
Catalog quantities describe the illustrated assembly. Adjust the order quantity to what you need, select the relevant rows, and use Add selected to cart for verified store matches or Add selected to quote for quote items. The diagram alone does not establish current stock or part interchangeability.
